B-Line 664 RHC

Share Print

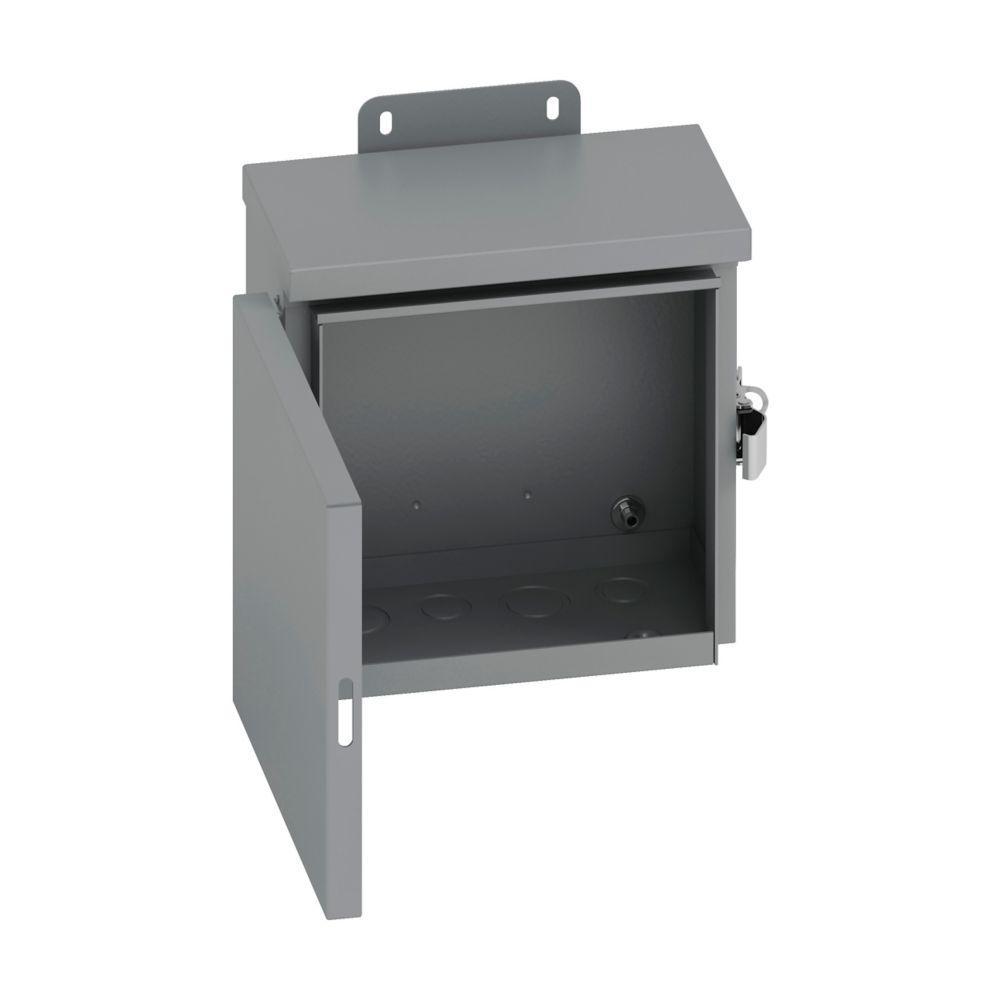

B-Line 664 RHC Electrical Enclosure, 6 in W x 4 in D x 6 in H, NEMA 3R NEMA Rating, Carbon Steel

  • MPN: 664 RHC

  • IESPN: 65908

  • UPC: 782051142068

  • Min Order Qty: 1

  • Quantity Interval: 1

  • Sold as: EACH

    • Availability: loading

    • Branch Availability
B-Line 664 RHC

B-Line Electrical Enclosure, 6 in Width, 4 in Depth, 6 in Height, NEMA 3R NEMA Rating, Small Continuous Hinged Cover, 4-1/4 in W x 4-1/4 in H Panel, Lock: Draw Pull Catch Padlock, Knockout Cable Entry, External Feet/Wall Mounting, Carbon Steel, Galvannealed/Polyester Powder Coated/Phosphate Undercoat, Gray

Width      6 in
Depth      4 in
Height      6 in
NEMA Rating      NEMA 3R
Cover Type      Small Continuous Hinged
Panel Size      4-1/4 in W x 4-1/4 in H
Lock      Draw Pull Catch Padlock
Cable Entry Size      Knockout
Mounting Type      External Feet/Wall
Material      Carbon Steel
Finish      Galvannealed/Polyester Powder Coated/Phosphate Undercoat
Color      Gray
  • Used as wiring boxes, junction and pull boxes
  • Enclosure and cover are fabricated from 16 ga galvaneal steel
  • Knockouts are furnished on bottom end
  • Cover is secured to the body with a continuous hinge and stainless steel pin ON one side and a padlock draw pull catch on the opposite side
  • External mounting feet are provided for secure wall mounting
  • Ground stud provided on door
  • Protects against falling rain, sleet and external ice formation
  • Rain hood, cont piano hinge, pull drawn catch
