Eaton's B-Line series JIC panel enclosures provide reliable environmental protection and are used to house electrical controls and instruments, but are also commonly used as industrial wiring, junction, pull, and termination boxes.

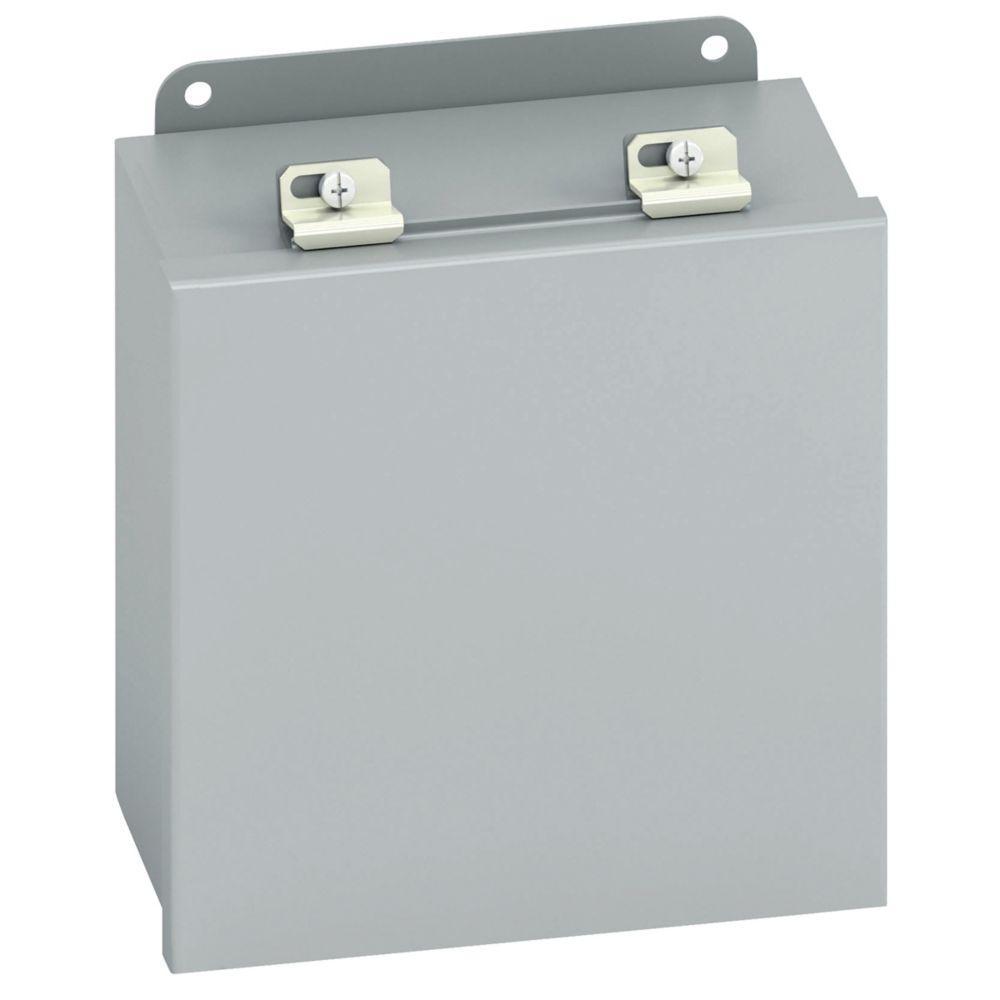

B-Line JIC Panel Enclosure, 8 in Width, 4 in Depth, 10 in Height, NEMA 12 NEMA Rating, Lift-Off Cover, 6.87 in W x 8.87 in H Panel, Lock: Screw Clamp, External Feet/Wall Mounting, Carbon Steel, Polyester Powder Coated, Gray

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/1086_SDFQRCC_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/1086_SDFQRCC_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_1084-12LC_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_1084-12LC_Specification_Sheet.pdf

• Enclosure and cover are fabricated from 16 ga steel
• All continuous welded seams are finished smooth
• Cover is secured to the body with semi hinges on one side and easy to operate screw clamps mounted to the opposite side
• Chain holds cover to body when screw clamps are released
• Cover has a seamless poured in place gasket
• Ground stud provided on cover
• External mounting feet are provided for secure wall mounting
• Hardware and clamps are zinc plated
• Panel mount provisions, stainless door clamps
• Plated door clamps
• Jack chain
• Jack chain, panel mount provisions, plated door clamp
