Eaton's B-Line series JIC panel enclosures provide reliable environmental protection and are used to house electrical controls and instruments, but are also commonly used as industrial wiring, junction, pull, and termination boxes.

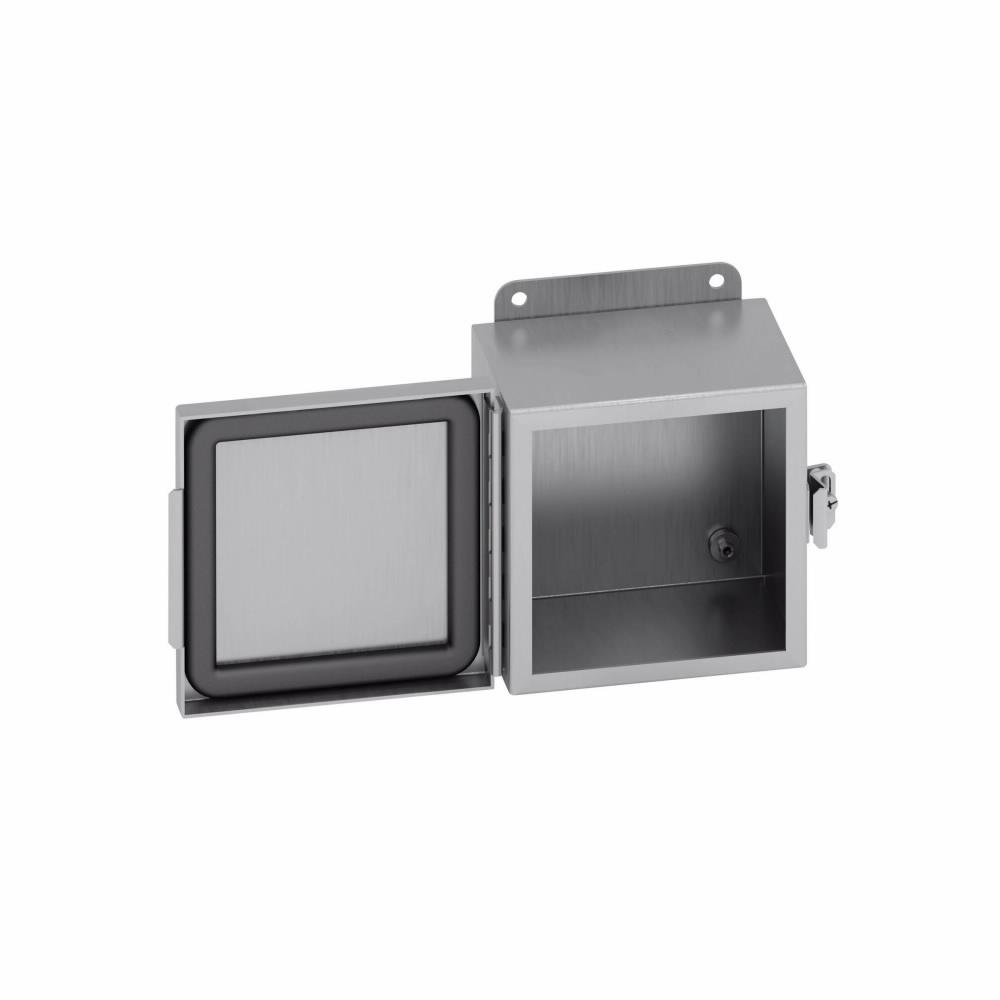

B-Line JIC Enclosure, 4 in Width, 4 in Depth, 6 in Height, NEMA 4X/IP66 NEMA Rating, Continuous Hinged Cover, 2.87 in W x 4.87 in H Panel, External Feet/Wall Mounting, 316 Stainless Steel, Smooth Brushed, Gray

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/1086_SDFQRCC_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/1086_SDFQRCC_Catalog.pdf

• Enclosure and cover are fabricated from 16 ga, type 304 or type 316L stainless steel
• All continuous welded seams are finished smooth
• Cover is secured to the body with a stainless steel continuous hinge and pin on one side and easy to operate stainless steel screw clamps mounted to the opposite side
• Cover has a seamless poured in place gasket
• Ground stud provided on cover
• External mounting feet are provided for secure wall mounting
• Protects against corrosion, windblown dust and rain, splashing water and hose directed water
• Continuous piano hinge, panel mount provided, stainless steel door clamps
