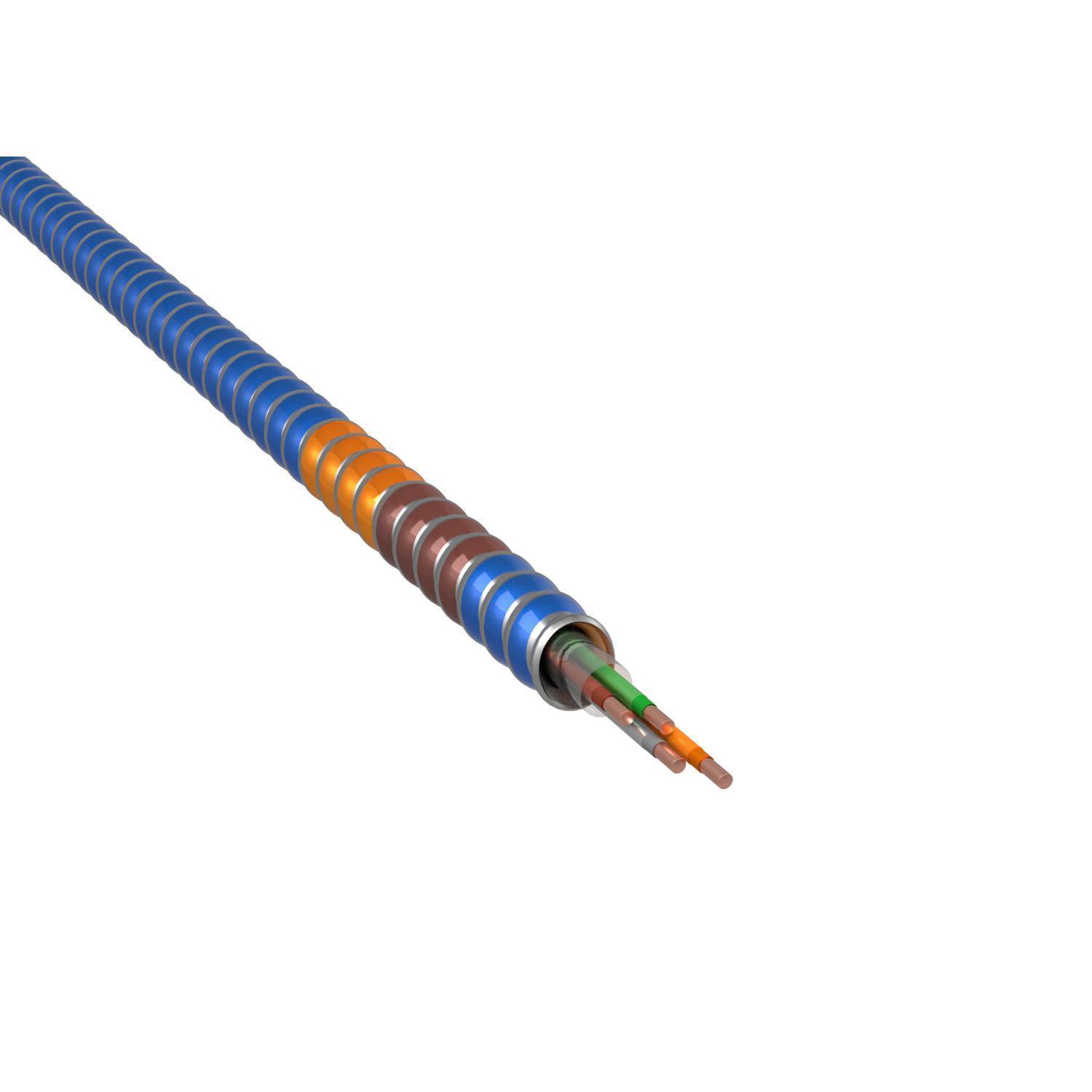

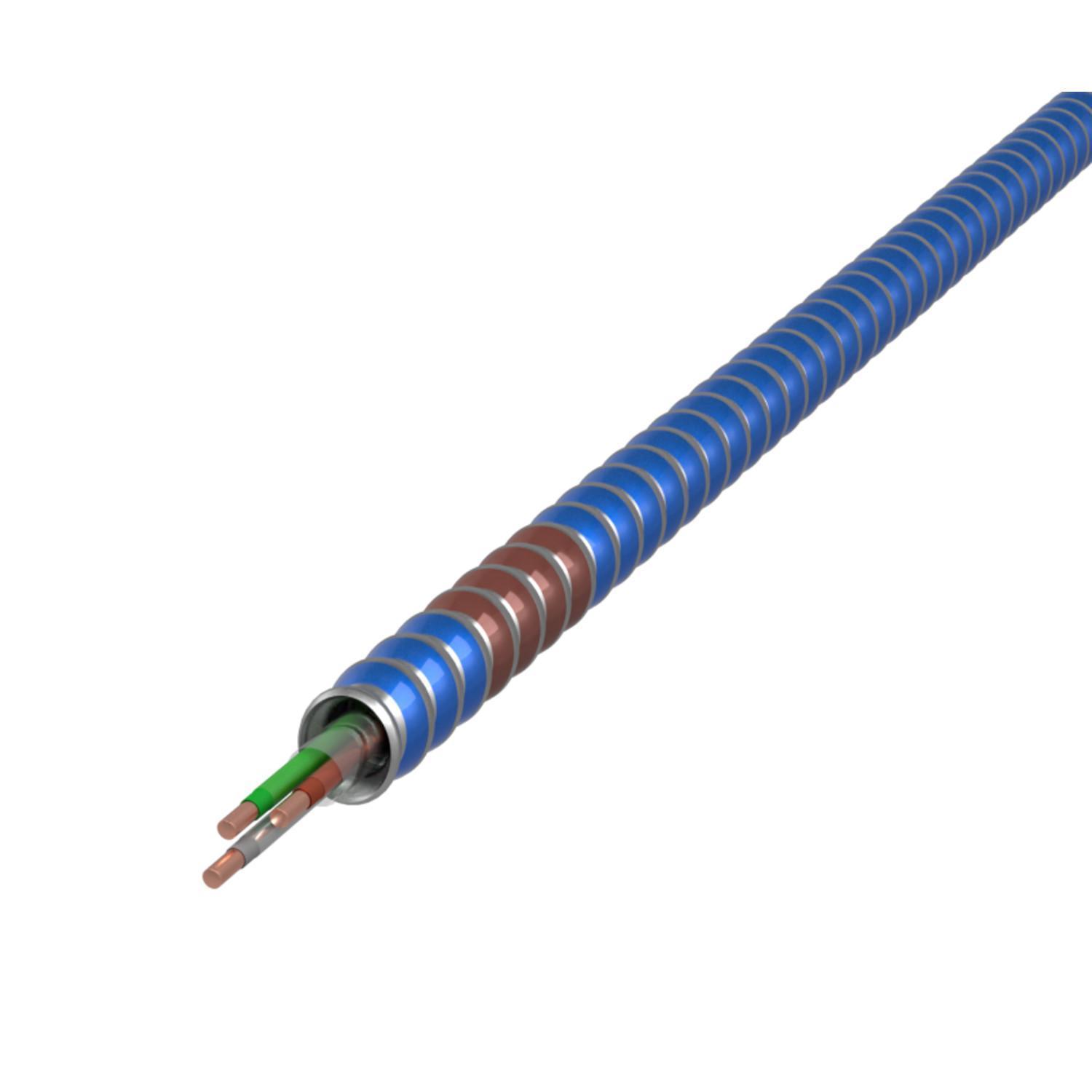

MC Tuff is a lightweight, high-strength Type MC Cable with blue galvanized steel interlocked armor that features ColorSpec®ID/ColorTrak® ID for easy identification. MC Tuff cables meet UL Standard 1569 and NEC 330, have no conductor count limit, and offer various conductor bundle combinations. These bundles consist of THHN/THWN rated conductors that are twisted and wrapped with polypropylene assembly tape. They also come with an insulated green equipment grounding conductor. Additionally, Atkore offers a Glide version of this cable for smoother, faster installation.

AFC Cable Systems MC TUFF® Metal Clad Cable, Type MC Lightweight Traditional, Coil Packaging, 600 VAC, 3 Conductors, Solid Copper Conductor, 10 AWG Conductor, 0.6 in OD, 250 ft Length, THHN/THWN Insulation, Interlocked Galvanized Steel Strip Jacket, Blue Jacket, 90 deg C

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/AFC_Cable_Systems_1701B22T00_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/AFC_Cable_Systems_1701B22T00_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_fcdf2ae2e2ecc61e879fd829eb71ee57e10ec2fa2f7f6b1cef10a254b1ea47c6.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_fcdf2ae2e2ecc61e879fd829eb71ee57e10ec2fa2f7f6b1cef10a254b1ea47c6.pdf

• Blue armor for easy identification
• May be used with set screw connectors UL listed for use with MC cable
• Superior EMI shielding versus aluminum armor
• MC TUFF® is a traditional type MC cable containing one or more copper grounding conductors, the armor is not an equipment grounding means
• Technically equivalent and economically superior to traditional raceway and wire installations
• ColorSpec ID/Color-Trak ID System
• Lightweight blue galvanized steel armor with phase ID painted directly onto the armor for added identification without the added step of opening up the panel to determine circuit type
