Eaton's Arrow Hart manual motor controllers offer compact, industrial-grade designs built to provide safe, reliable motor control performance in even the most rugged environments. They feature high-impact-resistant, glass-filled nylon construction; easy-to-read electrical ratings on rugged steel mounting straps; clear ON/OFF indicators on large, rugged toggles; distinct wire pockets and thick-wall arc barriers to contain strands; and screw-and-clamp or box-lug terminals to meet individual project requirements. Plus, two sets of contacts per pole distribute load and make/break action for long, reliable duty.

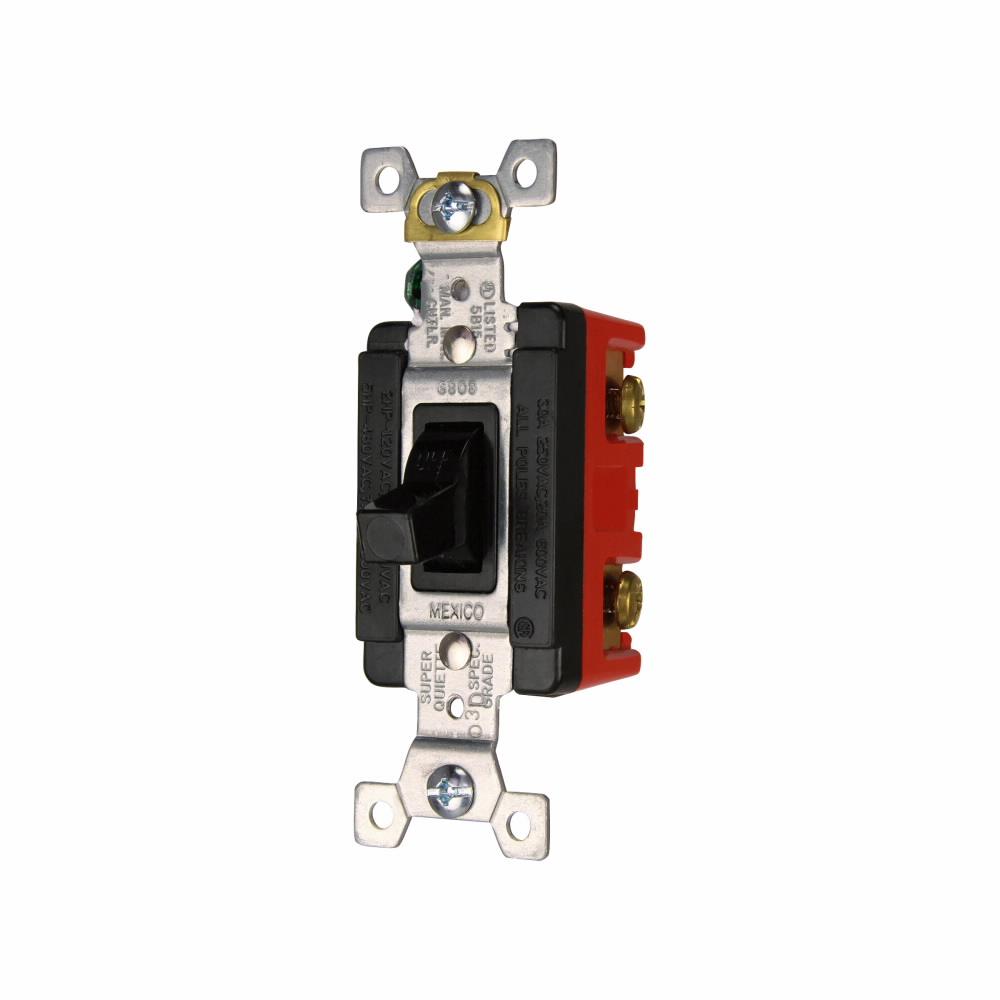

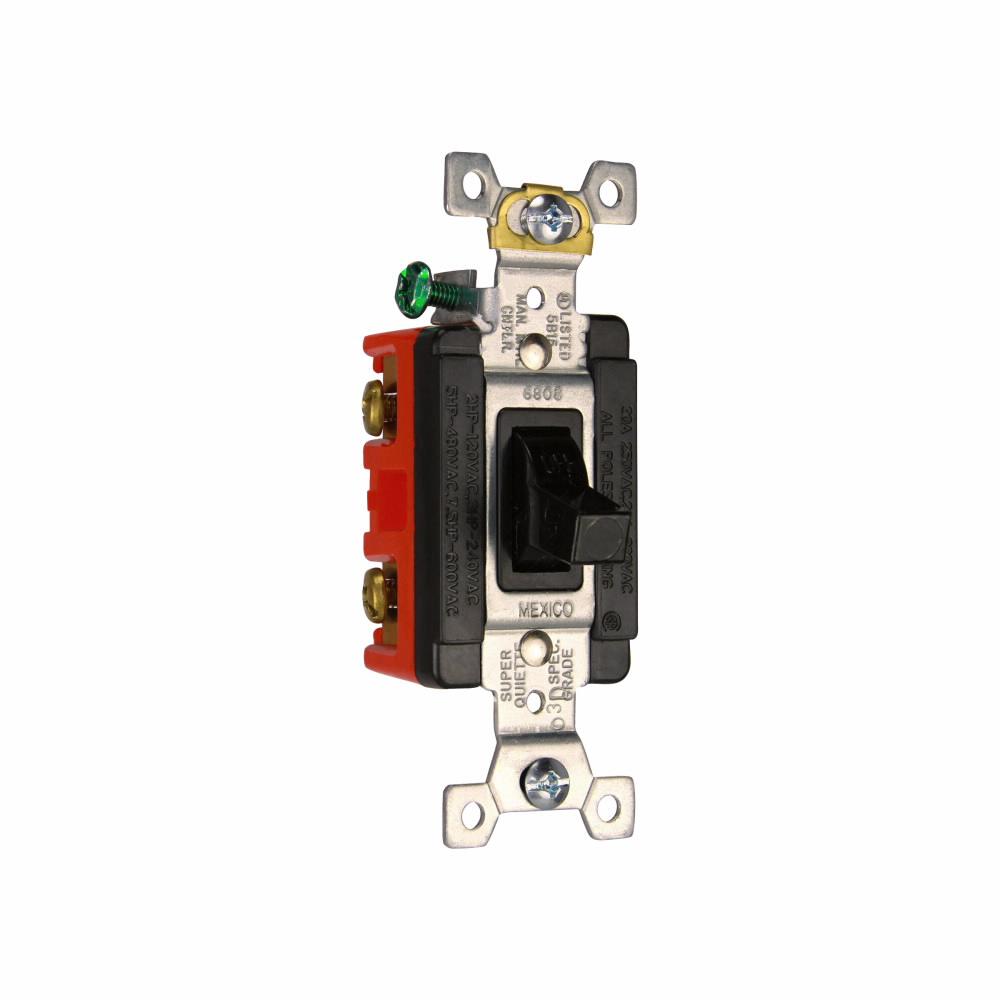

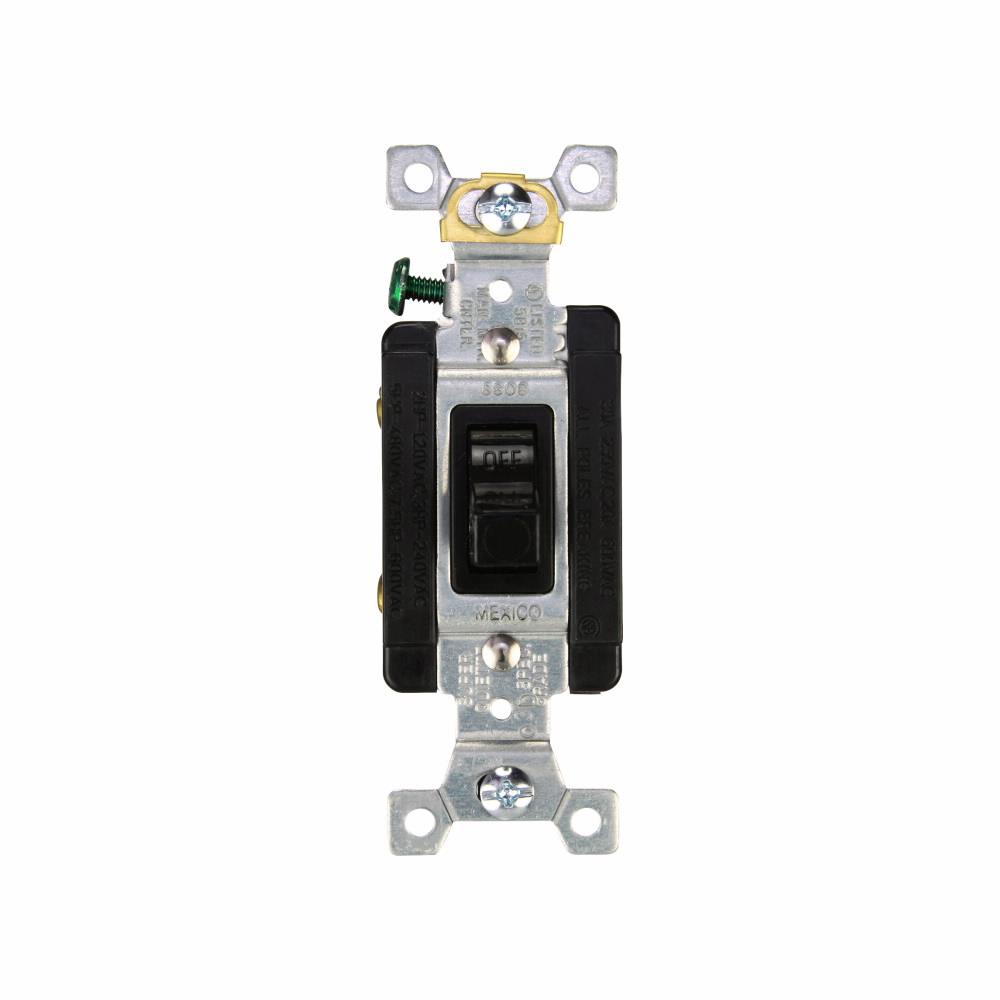

EATON Arrow Hart™ Eaton Wiring Devices Manual Motor Control Switch, 1-Phase, 250/600 VAC, 20 to 30 A, 2 hp, 3 hp, 5 hp, 7-1/2 hp Power, DPST Contact Configuration, 20/30 A at 250/600 VAC Contact, 2 Pole, Maintained Action, Back/Side Wired Connection, NEMA 1 Enclosure, Glass Filled Nylon, Black, 4.06 in H x 1.38 in W x 1.04 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/AH6808UDAC_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/AH6808UDAC_Specification_Sheet.pdf

• 14 to 10 AWG allowable wire range
• Totally enclosed body eliminates exposed contacts
• Enclosures can be padlocked to conform to OSHA lockout requirements
• Cam and roll design provides dependable, trouble-free switch action
• Separate arc quenching chambers isolate each pole
• Front terminals are designed for easy wiring
