BURNDY® compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high conductivity electrolytic copper. The connectors are normally tinplated, lead plated or plated with proprietary BURNDY® brite finish to provide durable long lasting corrosion resistance. The connector design has been matched to the cable Size to provide the necessary physical strength requirements for reliable electrical performance.

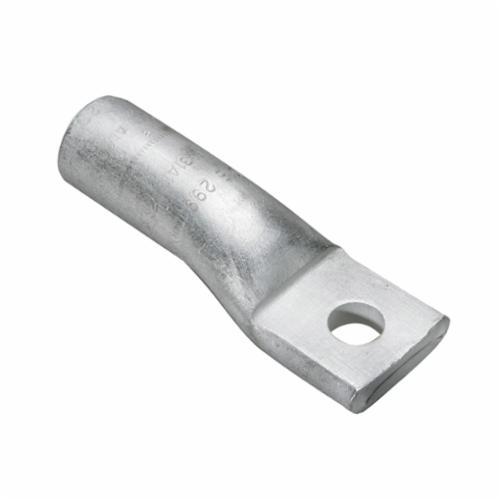

BURNDY® HYLUG™ Compression Lug, 1-Hole Dual Rated Uninsulated, Series: YA-A, Aluminum/Copper Conductor, 1000 kcmil Conductor, Die Code: 474, 600 VAC to 35 kV, 5/8 in Stud, Standard Straight Tongue, 2.69 in W x 0.4 in THK Tongue, 6-1/2 in Overall Length, Chamfered Barrel, 2.74 in L Barrel, 3-1/4 in L Wire Strip, 90 deg C, Electro-Tin Plated Aluminum, Gray

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_777377a17df4074cd452448262db4c28fa7424c352733d2b165d24fcb40e6922.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_777377a17df4074cd452448262db4c28fa7424c352733d2b165d24fcb40e6922.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA8CA1_Full_Engineering_Drawing.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA8CA1_Full_Engineering_Drawing.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA8CA1_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA8CA1_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_94b8ca865d574aae2672f28cecf0cf5df47092d21b06cbdd811dd6dc15d68397.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_94b8ca865d574aae2672f28cecf0cf5df47092d21b06cbdd811dd6dc15d68397.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA44A1_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA44A1_Specification_Sheet.pdf

• Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damage of the wire strands during insertion
• Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
• Connectors are clearly marked with wire size, die index, color code, and crimp location bands
• Factory pre-filled with PENETROX Type A13 oxide inhibitor
