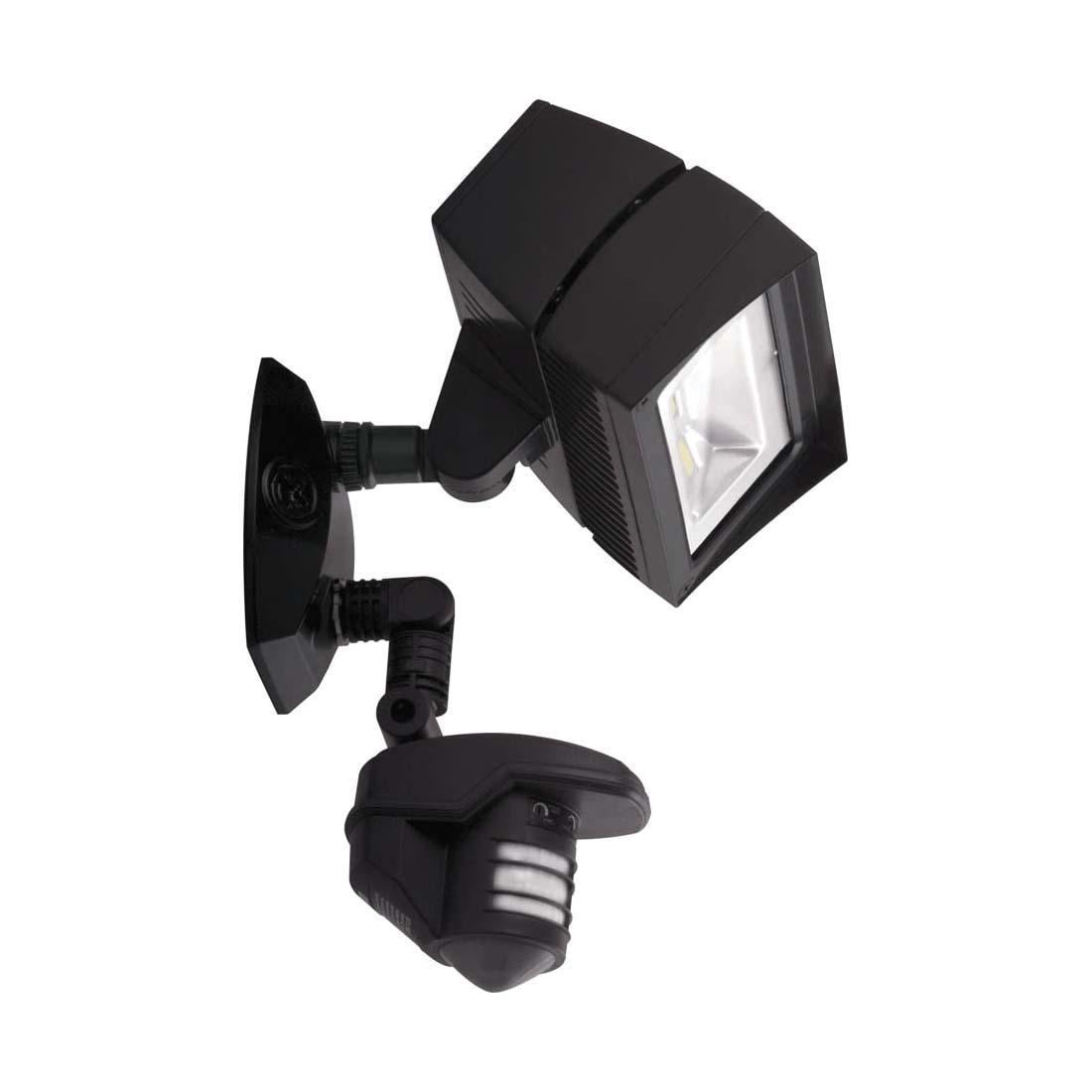

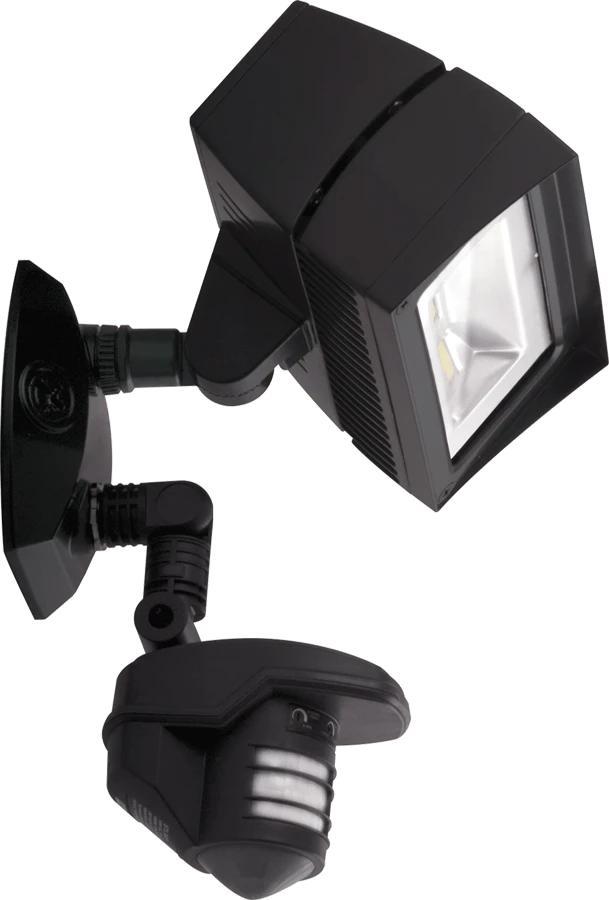

RAB STL3FFLED18 Motion Sensor Floodlight, LED Lamp, 22 W Fixture, 100 to 240/277 VAC

  • MPN: STL3FFLED18

  • IESPN: 171739

  • UPC: 019813033600

  • Min Order Qty: 1

  • Quantity Interval: 1

  • Sold as: EACH

    • Availability: loading

    • Branch Availability
RAB STL3FFLED18

RAB Motion Sensor Floodlight, 100 to 240/277 VAC, 22 W Fixture, 0.2 A, LED Lamp, 18 W Lamp, 100000 hr Average Life, 5000 K Color Temperature, 69 CRI, 1624 Lumens, NEMA 7H x 6V Enclosure, Arm Mounting, 180/360 deg Sensing, 5 s to 12 min Time Delay, 1 to 8 hr Timer, 12-1/4 in H x 9 in W Dimensions

Voltage Rating      100 to 240/277 VAC
Fixture Wattage      22 W
Amperage Rating      0.2 A
Lamp Type      LED
Lamp Wattage      18 W
Average Life      100000 hr
Color Temperature      5000 K
Color Rendering Index (CRI)      69
Lumens      1624 Lumens
Enclosure Type      NEMA 7H x 6V
Mounting Type      Arm
Sensing Angle      180/360 deg
Time Delay      5 s to 12 min
Timer Rating      1 to 8 hr
Dimensions      12-1/4 in H x 9 in W
  • Ultra efficient LED and optical design
  • Senses 180 deg out/360 deg down for total detection
  • Radio frequency immunity
  • 6000 VAC surge protection
  • Temperature compensation
  • 7H x 6V beam spread NEMA type
  • -40 to 104 deg F temperature
  • Bronze color
  • Without photocell
  • Features an evening timer mode, which turns the light on for a preset amount of time after sunset
