The H7TNB is designed without a socket plate for use with socket supporting trims only. With these trims there is no need to spend time removing the socket from the socket plate and the socket plate from the housing. The H7TNB is suited for use in non-insulated ceilings. If ceiling insulation is present, it must be kept 3 in from all sides of housing.

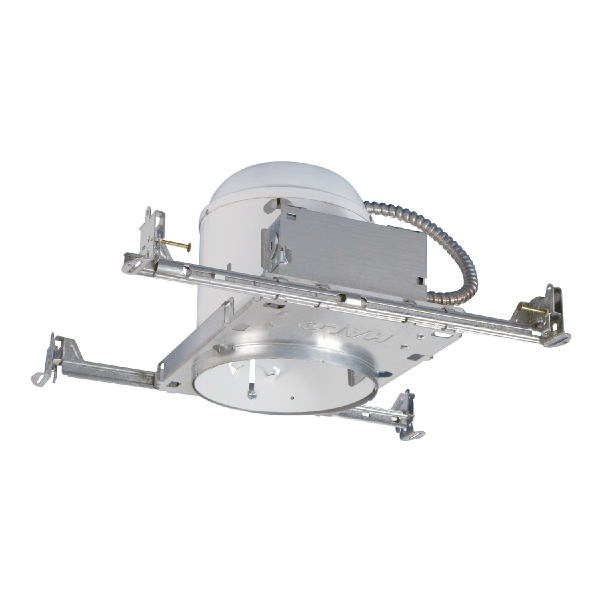

Halo AIR-TITE® Recessed Housing, New Construction Round, Series: H7, 120/277 VAC, 6-1/2 in Ceiling Opening, Incandescent Lamp, 150 W Lamp, 1 Lamps, Non-Insulated Insulation, Ceiling Mount, For Use With: Ceiling Downlighting, 6 in Dia, 7-1/2 in Height, 7-1/2 in Width, 10-1/2 in D, Aluminum Housing

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_979f24314d20422370654ea197513af8b312e23eac1e2fa74488b1508440d3e9.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_979f24314d20422370654ea197513af8b312e23eac1e2fa74488b1508440d3e9.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_fe1620d128889e6b76db048c8e838cfe51972cd746a8c1ccf68951de3103bc32.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_fe1620d128889e6b76db048c8e838cfe51972cd746a8c1ccf68951de3103bc32.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5406c0f66a3cfff9d68250c585ab0aea7cbdf72c085dfb11c706f7f17d368d74.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5406c0f66a3cfff9d68250c585ab0aea7cbdf72c085dfb11c706f7f17d368d74.pdf

• Got-Nail™ bar hangers
• Pass-N-Thru™ tool less shortening of bar hangers
• Slide-N-Side™ wire traps
• Thermally protected
• Die formed housing and plaster frame
• Housing may be removed from plaster frame for junction box access
• No socket bracket, for use with socket supporting trims
