Leviton® is the leading manufacturer of ground fault circuit Interrupters (GFCI) is in the electrical industry. Our renowned SmartlockPro brand offers a wide variety of Spec grade and hospital grade GFCIs to protect people from electrical shock in homes, offices hospitals, schools and outdoors. Built with a Patented reset lockout feature that blocks the reset button if GFCI protection has been compromised, the GFCIs meet the latest NEC and UL requirements. You'll find Smart choices for every need, including tamper resistant, weather resistant, hospital grade GFCI/switch or GFCI/guide light and pilot light combinations, as well as easy-install slim versions and time-saving Lev-Lok GFCI s SmartlockPro GFCI protection teams with an LED guide light for safety in the dark. This combination is ideal for installation in home and hotel bathrooms. A photo sensor turns the energy efficient, long life LED ON and OFF.

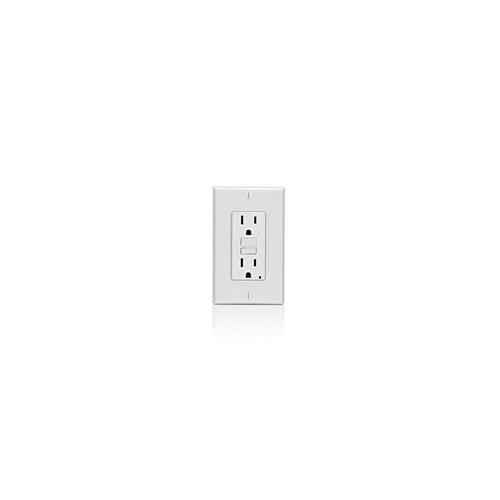

SmartlockPro® GFCI Receptacle, Duplex Tamper-Resistant, 125 VAC, 15 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Specification Grade, NEMA WD-6 Enclosure, -35 to 65 deg C, Back/Side Wire Terminal, Polycarbonate, Ivory, 1.32 in L x 1.69 in W x 4.21 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_X7599-W_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_X7599-W_Specification_Sheet.pdf

• Automatically test the GFCI every time the RESET button is pushed in the GFCI will not reset if the GFCI circuit is not functioning properly
• By blocking reset of the GFCI if protection has been compromised, SmartlockPro reduces the possibility of end-users incorrectly assuming that a reset GFCI outlet is providing ground fault protection when it actually is not
• A line load reversal diagnostic feature is provided which prevents the GFCI from being reset and stops power from being fed to the GFCI receptacle face or through to downstream devices
• A green LED indicator on the GFCI face also illuminates to alert the installer to the line load wiring reversal
• The trip latch mechanism in SmartLockPro® GFCIs is a 1-piece T-design for efficient operation
• There are 4 sets of contacts for load terminals and face SmartLockPro® GFCIs use a Patented bifurcated bridge contact for efficient operation
• Trip threshold meets or exceeds UL requirements for tripping time
• Improved immunity to high frequency noise reduces nuisance tripping
• Advanced electronics design provides superior resistance to electrical surges and over-voltages
• Expanded wiring options with nine Back-wire holes
• Two for each line and load connection plus one for ground with an Internal clamp
• Silver alloy contact material
• Compatible with all Decora® devices and wallplates available in select Decora® colors
• Withstands 2000 VAC per UL498 dielectric voltage rated V-2 per UL94 flammability
• Brass double wipe 0.031 THK line contacts
• Thermoplastic nylon face plated steel terminal screw steel strap, zinc plated steel yoke and clamp nuts material
• Brass-hot, green-ground, silver-neutral terminal ID, 14 to 10 AWG terminal accommodation
• GFCI ground fault cir interrupting grounding, smartlock, buttons match face color
• Class A, 5 mA Plus or minus 1 mA trip level
