Eaton's B-Line series Flextray basket tray features a full portfolio of straight sections, fittings and accessories to support your commercial cable management and low voltage, data and communication cable pathways. Includes a full range of straight sections, that can be cut and bent on the job-site, and multiple accessories for installation flexibility.

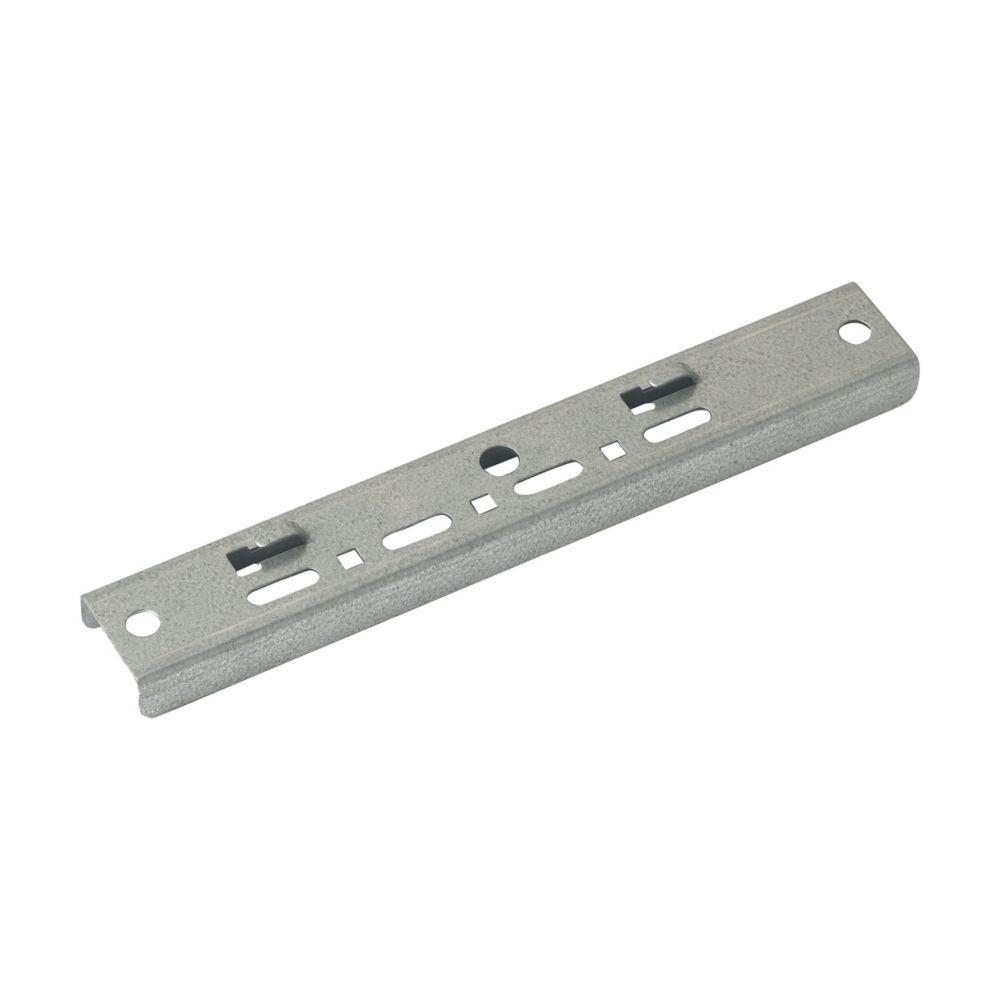

B-Line FLEXTRAY™ Center Trapeze Hanger, 15.69 in Length, 12 in Width, For Use With: WBUHD Hold Down Clip, Pre-Galvanized Zinc

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_WASHER_SPL_KIT_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_WASHER_SPL_KIT_Specification_Sheet.pdf

• Can be installed as center-hung or Traditional trapeze hanger
• Corrosion resistant pre-galvanized zinc finish
• Center hole for up to 1/2 in rod
• Hole on each end for up to 3/8 in rod
• Threaded rod protector
• Built in hold down tabs (use screwdriver to bend down tab)
• Slots and holes for optional hardware attachment
• Compatible with TOOLLESS clip with snap-in locking pin
• Compatible with WBUHD hold down clip when tray crosswire is aligned over top of hanger
• For use with basket tray threaded rod mount
