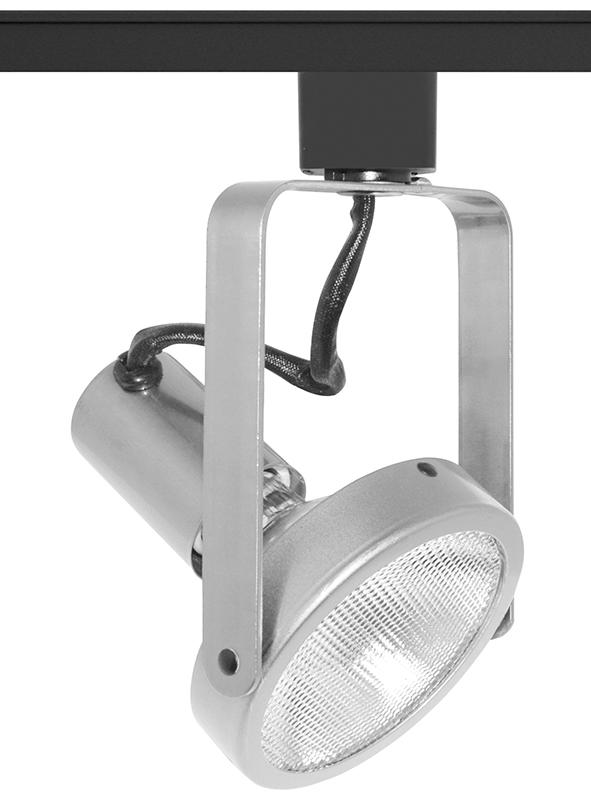

Juno® Trac-Master™ T363 series open-back gimbal ring fixtures feature clean, functional lines and maximum adjustability. These open-back spotlights relamp from the back, have floating socket mounts and include an on/off switch. The stylized yoke design produces a minimum profile, making these fixtures ideal for retail and commercial applications.

Juno® Trac-Master® Track Head, Line Voltage, Series: T363, PAR30 Incandescent Lamp, 120 VAC, 75 W Lamp, Medium Lamp Base, 1 Lamp, 4 in Diameter, Steel Housing Material, White Housing Finish

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Juno_T1038_E26_150W_WH_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Juno_T1038_E26_150W_WH_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Juno_T368_WH_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Juno_T368_WH_Specification_Sheet.pdf

• Die formed steel construction
• 90 deg C vertical aiming capability and 358 deg C rotation
• Medium base porcelain lamp holder with nickel plated copper screw shell
• Trac adapter features copper alloy contacts that provide precise spring action
• No arcing and will not take a set
• True, positive electrical ground
• Spring loaded locking latch with embossed polarity arrows secures trac light to trac
• Pull-up contact to up position for 2-circuit application
• Polarity indicator embossed on bottom of adapter
• For use with 35 to 75 W PAR30 lamps
