Eaton’s XT line brings IEC power control to a whole new level. The XT IEC series includes non-reversing and reversing contactors and starters as well as overload relays and accessories. Enclosed control options include metallic and non-metallic enclosures with circuit breakers, and North American or European fuses. Save space and engineering design time with XT IEC series overload relays.

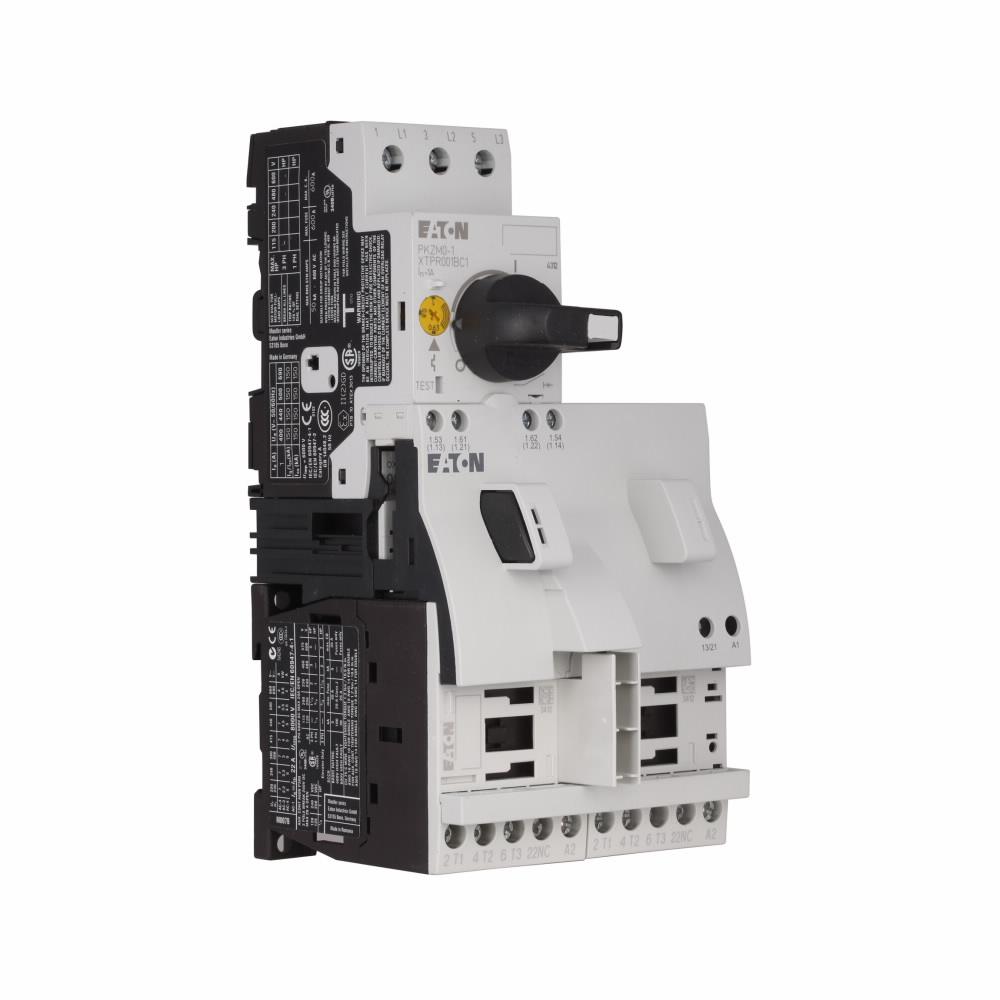

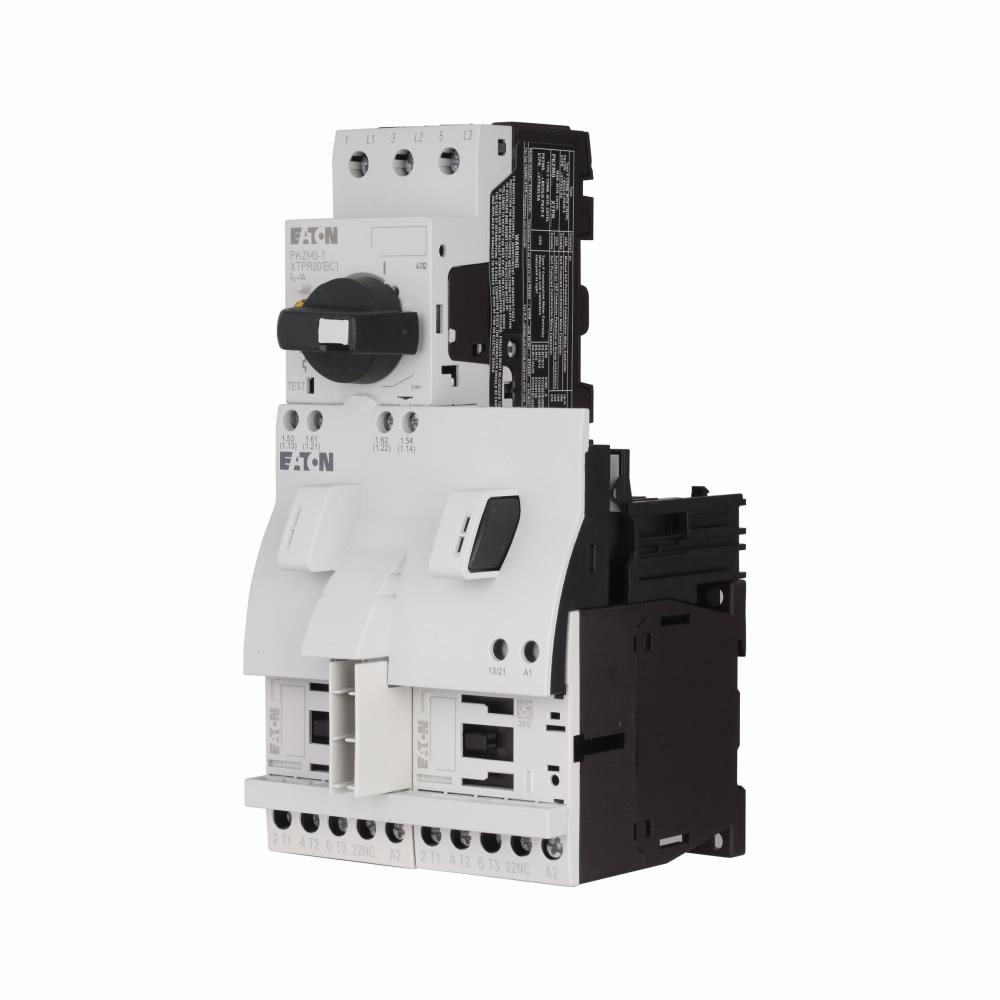

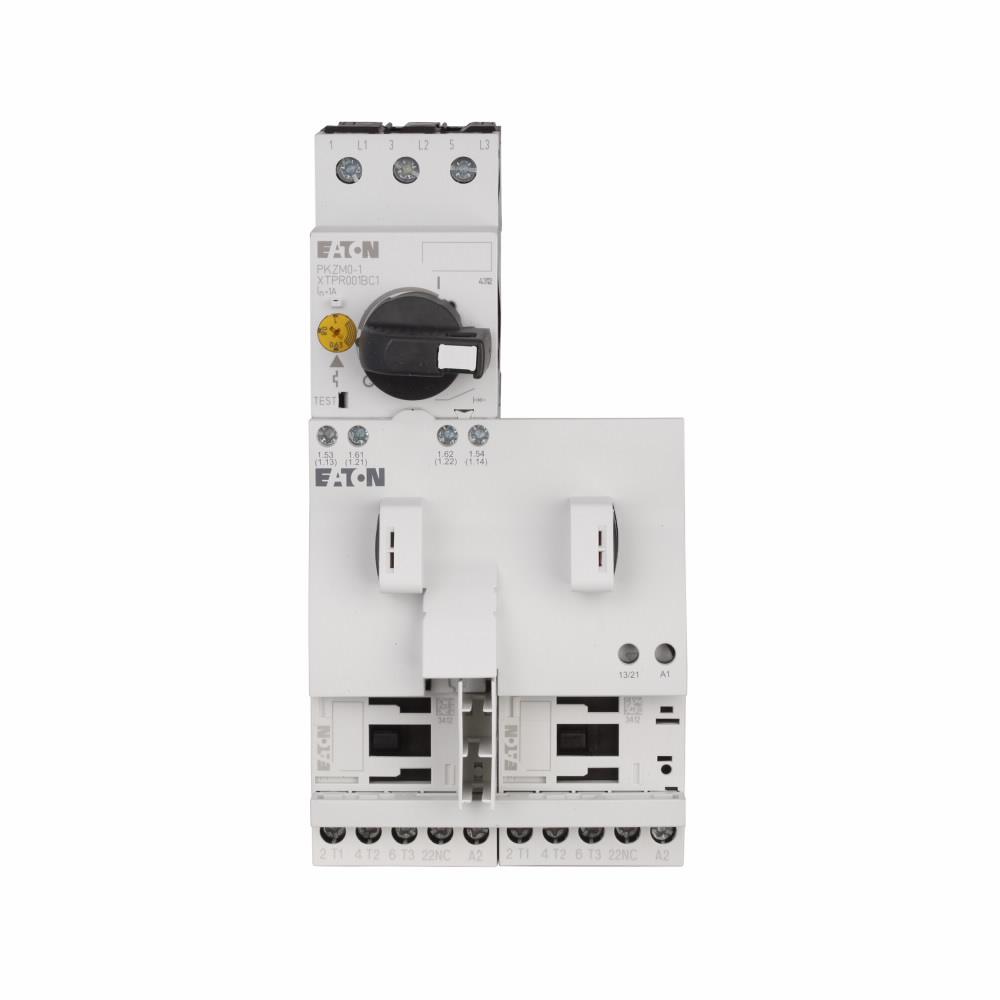

EATON Manual Motor Controller, Full Voltage Reversing, Series: XT Series, 6.3 A, 50/60 Hz, 12 VAC Coil

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/CN15AN3WB_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/CN15AN3WB_Catalog.pdf

• ON/OFF rotary handle with lockout provision
• Visible trip indication
• Test trip function
• Class 10 overload protection
• Built-in heater and magnetic trip elements to protect the motor
• Phase loss sensitivity
• Type 2 coordination
• Control inputs located at front of starter for easy access and wiring
• Short circuit trip at 14 times the maximum setting of the FLA adjustment dial
• 1.1 hp at 220 to 240 VAC, 2.2 hp at 380 to 415 VAC, 3 hp at 500 VAC, 4 hp at 660 to 690 VAC power rating
• 45 mm frame
