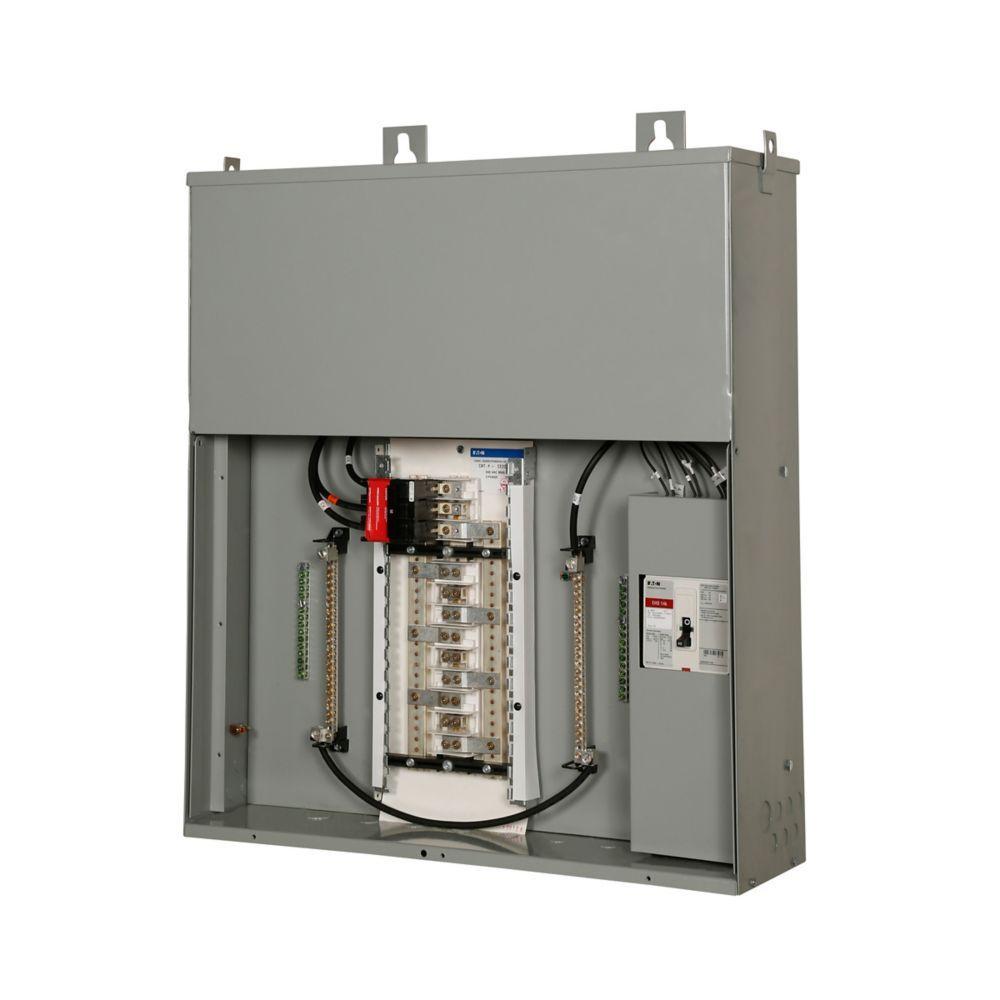

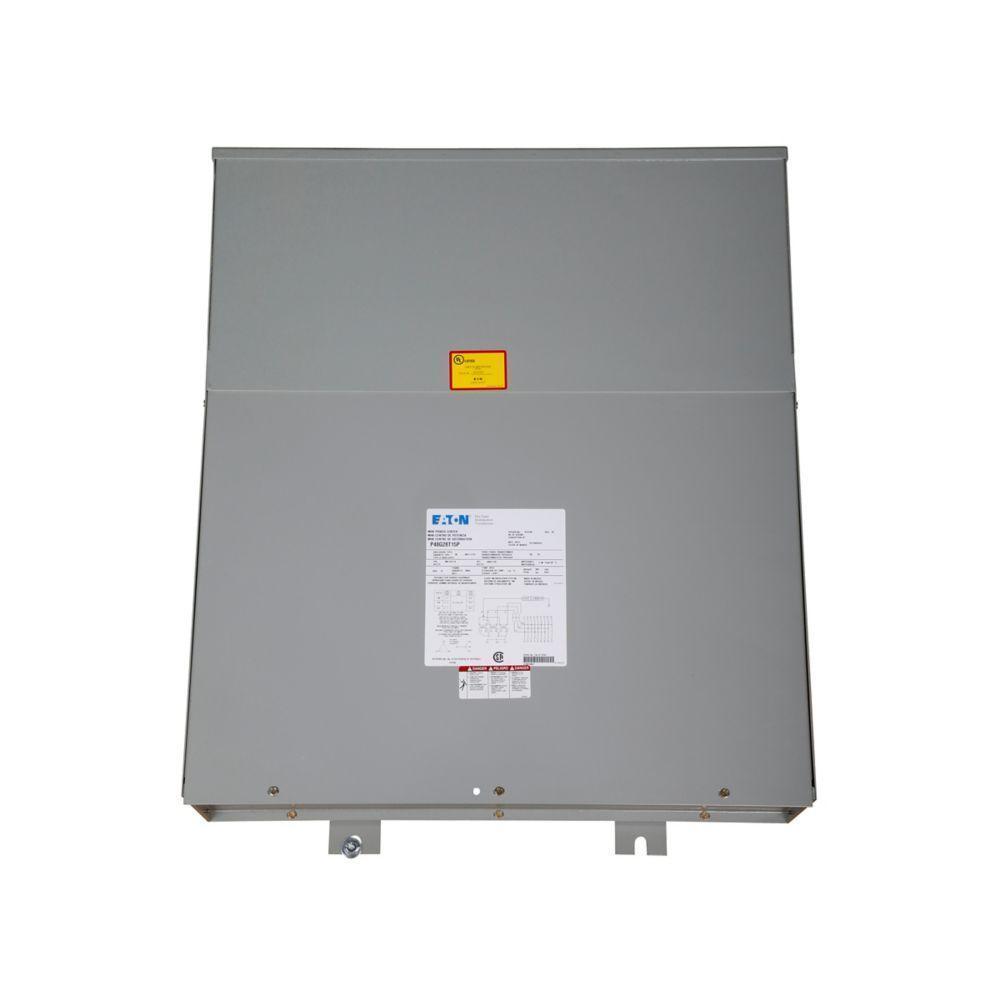

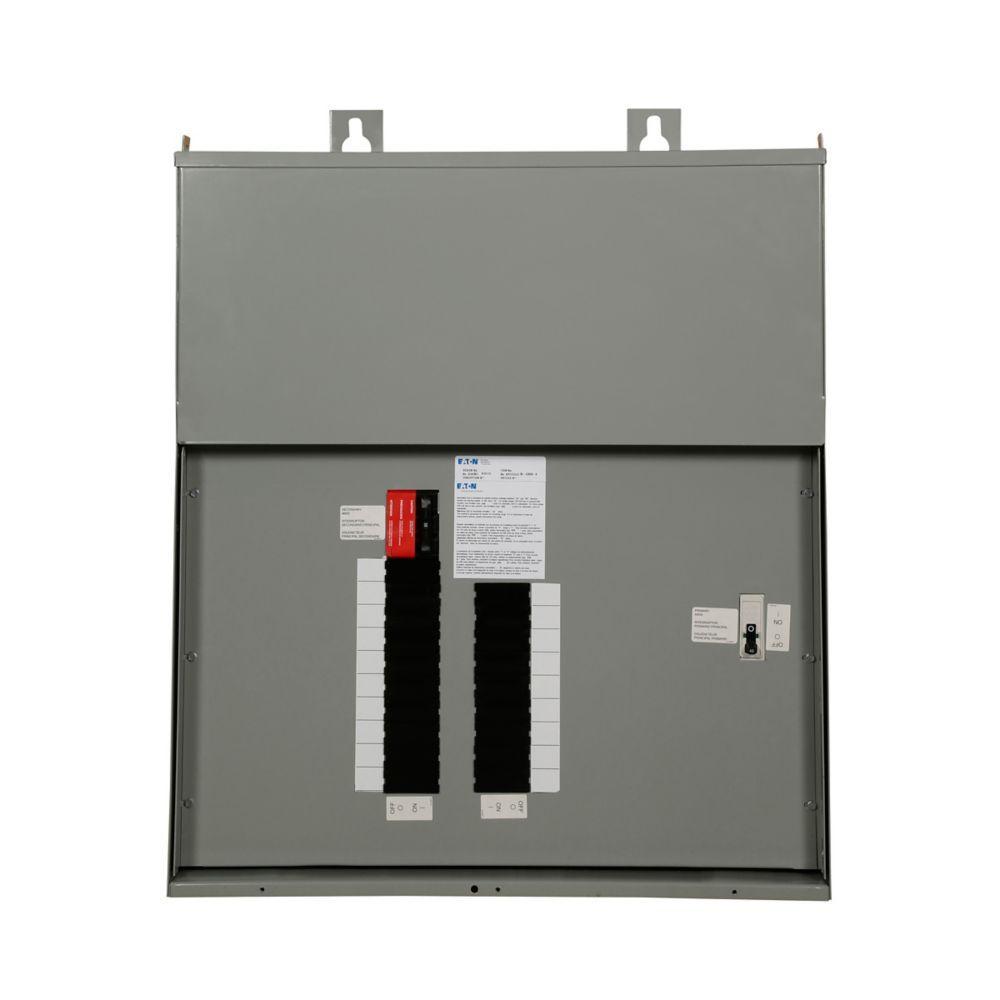

EATON mini-power center incorporates an encapsulated transformer, interior, primary and secondary main circuit breakers in to a single assembly. Mini-power centers are ideally suited for applications where 120 VAC are required at a remote location, such us parking lots, workbenches and temporary power on construction sites.

EATON Mini-Power Center, 3-in-1 Design Dry, 480 V Primary, 208Y/120 V Secondary, 15 kVA Power, 60 Hz Frequency, 3 ph, 40 A Maximum, 2 Taps, 289A Frame Circuit, Class F/180 deg C Insulation, NEMA 3R Enclosure, 115 deg C, Steel Housing Material, 9.38 in L x 28.75 in W x 36.12 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_P48G28T15CUB_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_P48G28T15CUB_Specification_Sheet.pdf
• VIDEO LINK https://www.youtube.com/watch?v=fxmiU0hirBk

• Padlockable hinged cover prevents removal of feeder breakers
• All interconnecting wiring is performed at the factory, saving on installation costs
• Ground bar is supplied to permit grounding of individual secondary circuits
• Wiring compartment includes ample space for conduit entry
• Cores are grounded with a copper lead
• All live parts enclosed for personnel safety
• Neutral bar is grounded to case
• Branch circuits can be easily added or changed using type BR plug-in breakers and type BR plug-in and type BAB bolt-on
• Short term overload capability as required by ANSI
• Meet NEMA ST-20 sound levels
• Maximum wiring gutter space is provided for ease of wiring
• Simplified design includes two keyholes for easy mounting and leveling
• Copper winding
• Bolt-on breakers
• 2 at -5% FCBN taps
