Cutler-Hammer EDB2125

Share Print

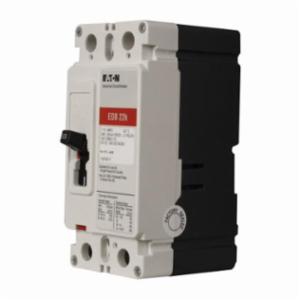

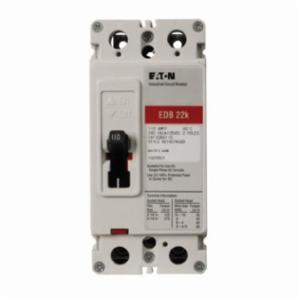

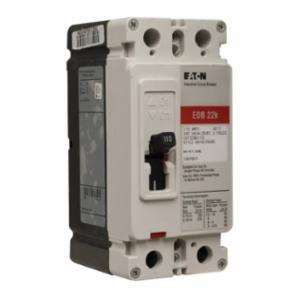

Cutler-Hammer Pow-R-Line C Series Type EDB Molded Case Circuit Breaker With Non-Interchangeable Trip Unit, 240 VAC

  • MPN: EDB2125

  • IESPN: 137630

  • UPC: 782116152667

  • Min Order Qty: 1

  • Quantity Interval: 1

    • Availability: loading

    • Branch Availability
Cutler-Hammer EDB2125

Cutler-Hammer Molded Case Circuit Breaker, Type EDB, Series: C Series, 240 VAC, 125 A, 22 kA Interrupt, F Frame, Fixed Thermal Magnetic Trip, 2 Pole, 1, Bolt-On, 40 deg C, 3.38 in L x 2.75 in W x 6 in H

Type      Type EDB
Series      C Series
Voltage Rating      240 VAC
Amperage Rating      125 A
Interrupt Rating      22 kA
Frame      F
Trip Type      Fixed Thermal Magnetic
Number of Poles      2
Phase      1
Connection Type      Bolt-On
Temperature Rating      40 deg C
Dimensions      3.38 in L x 2.75 in W x 6 in H
Warranty      1 Year
Includes      Terminals
  • pdfCatalog https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_HLDB3600FT33W_Catalog.pdf
  • pdfSpecification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_EDB2125_Datasheet.pdf
  • videoVideo Link http://www.eaton.in/Eaton/ProductsServices/Electrical/ProductsandServices/CircuitProtection/MoldedCaseCircuitBreakers/SeriesCNEMACircuitBreakers/index.htm#tabs-3
  • Comes with non-interchangeable trip units suitable for reverse feed
  • HACR rated
  • Includes terminals on load end only
  • 22 kA at 240VAC interrupt rating
