Eaton’s Series C Molded Case Circuit Breakers are used in panelboard, switchboard, motor control center, and busway applications for dependable branch circuit protection. They have proven user acceptance for over 20 years and meet or exceed North American standards. Available for systems up to 600 VAC or 250 VDC with current ratings up to 2500A.

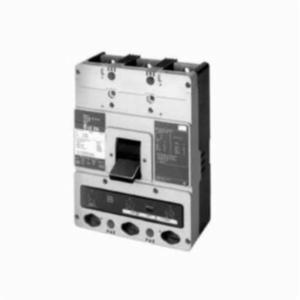

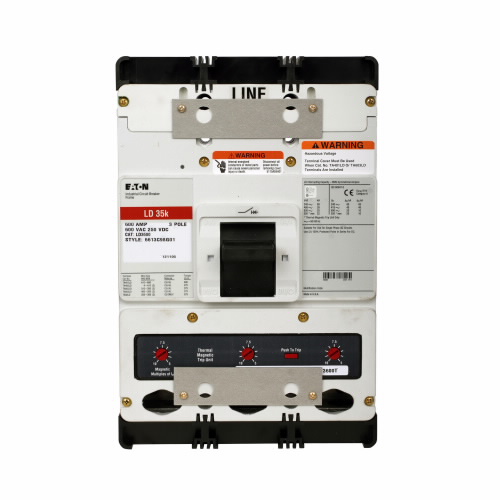

Cutler-Hammer Molded Case Circuit Breaker, Type LD Thermal Magnetic, Series: C, 600 VAC, 600 A, 50/60 Hz, 25 kA Interrupt, L Frame, Long Time/Instantaneous Trip, 3 Pole, 3 Phase, Line and Load Lug, 400 to 500 kcmil Wire, Bolt-On Mount, 40 deg C, 10.75 in H x 8.25 in W x 4.06 in D

• IDW ITEM DOCUMENTS https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1511877516988.pdf
• IDW ITEM DOCUMENTS https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1485574419483.pdf
• IDW ITEM DOCUMENTS https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/http://www.ideadigitalcontent.com/files/10964/ID-SPE-v1-LD3600.pdf
• IDW ITEM DOCUMENTS http://www.eaton.com/ecm/idcplg?IdcService=GET_FILE&allowInterrupt=1&RevisionSelectionMethod=LatestReleased&Rendition=Primary&dDocName=98126808

• Patented contact design features high-speed blow-open action, resulting in superior performance
• Circuit breakers significantly outperform the calculations listed in the Institute of Electrical and Electronic Engineers (IEEE) standard 1584-2002, guide for performing arc flash hazard calculations
• All Eaton L-frame circuit breakers are HACR rated
• All F-frame circuit breakers are suitable for reverse feed use
• Fixed instantaneous trip
• With non-interchangeable trip units suitable for reverse feed
• Standard interrupting
