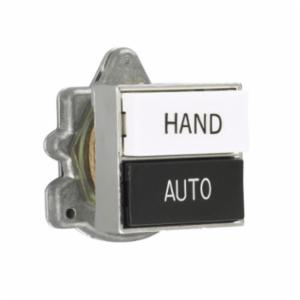

These square, multifunctional operators feature die-cast construction to prevent the passing of oil and other contaminants through the operator into the contact structure or panel interior. The attractive square operator styling, coupled with custom legending of colored button and lenses and many special function accessories, makes E30 30.5 mm components ideal for a variety of industrial and OEM applications.

Cutler-Hammer Pushbutton Operator Button, Type B Extended Actuator Multifunction, Series: E30, 1.3 in L x 0.6 in W x 0.3 in H, Rectangular, STOP Legend, Die Cast, Red

• Catalog https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_E30KA100_Catalog.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_E30KB231_Data_Sheet.pdf

• Up to six input and indicating functions can be grouped into a single operating head, saving valuable panel space
• Push button operators will accommodate up to four single depth, stackable contact blocks behind each operating button
• Indicating lights are supplied complete with either a transformer light unit up to 600 VAC supply line voltage or full voltage light unit up to 120 VAC/VDC supply line voltage
• Combination pushbutton with indicating light operators are supplied complete with a transformer or full voltage unit
• 3/16 in high letter size
• 30.5 mm square multi-function watertight/oiltight
