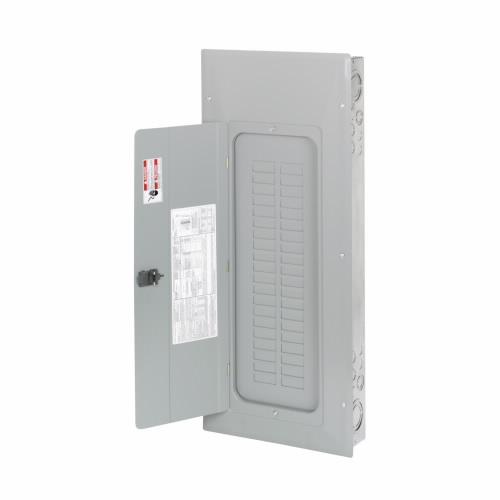

Specially designed for easy installation, EATON BR 1 in loadcenters house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

EATON Convertible Main Loadcenter, 1-Phase, 120/240 VAC, 200 A, 40 Pole, 25 kA Interrupt, 40 Circuits, BR/MCB/MLO Breaker, 3-Wire Wiring Configuration, 40 Spaces, Flush Mounting, NEMA 1 Enclosure, NEMA G1 Enclosure Box, Metal Housing Material, 3.88 in L x 14.31 in W x 34.13 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_97979633dcaf4fc709f75ff7065ec843bc98a0d71d8e84549a700c5f2f44069d.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_97979633dcaf4fc709f75ff7065ec843bc98a0d71d8e84549a700c5f2f44069d.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_92e18c042234d70ee1d0e1716109e558f36c2529f01745af799ecee7b49b5e9f.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_92e18c042234d70ee1d0e1716109e558f36c2529f01745af799ecee7b49b5e9f.pdf

• Flexible neutral design
• Tangential main knockout
• Single key hole mounting
• Factory pre-attached neutral bonding strap
• It accommodates copper aluminum wire at 60/75 deg C
• Copper bus material
• No feed through lugs
