Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

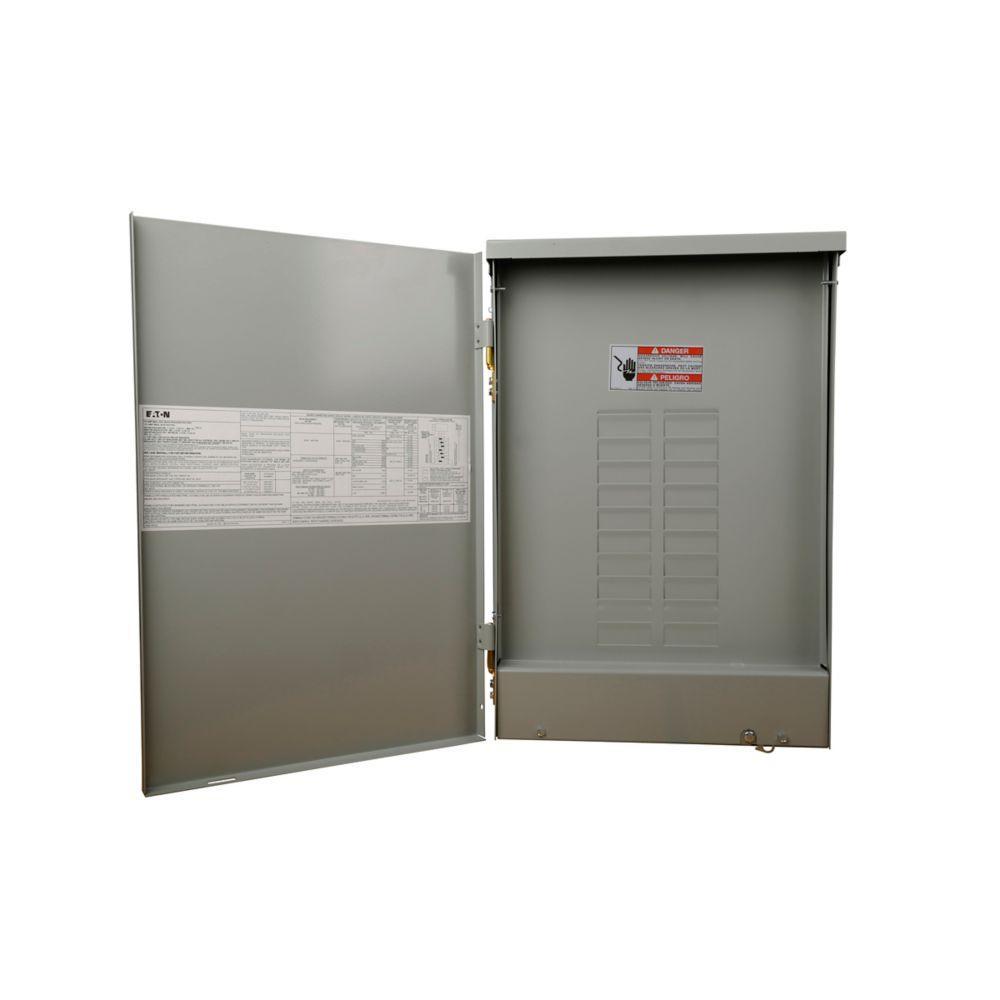

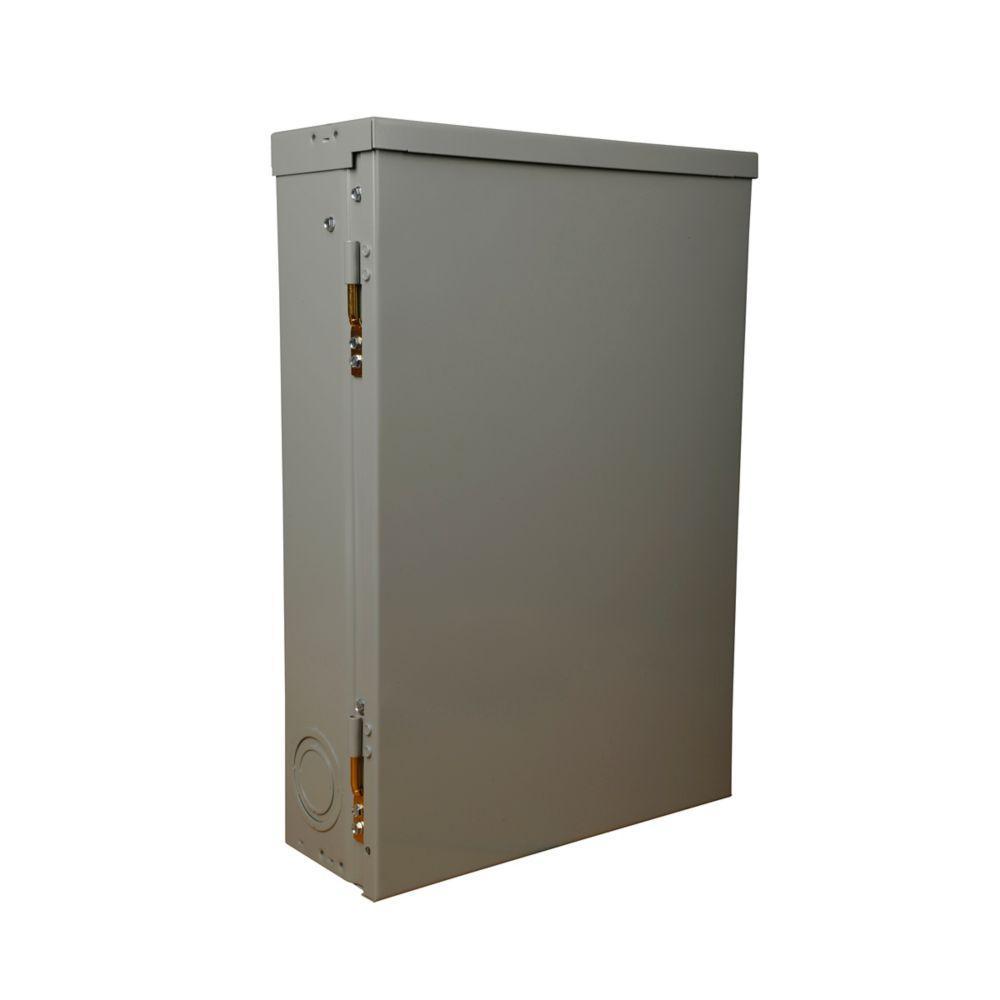

EATON Main Lug Loadcenter, 3-Phase Metallic, 120/208Y/240 VAC, 125 A, 24 Pole, 10 kA Interrupt, 24 Circuits, BR Breaker, 4-Wire Wiring Configuration, 12 Spaces, 6 to 2/0 AWG Wire, Surface Mount, NEMA 3R, NEMA C1R Enclosure Box, 5.19 in L x 14.31 in W x 21 in H

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_CH12L3125B_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_CH12L3125B_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_3BR1224L125R_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_3BR1224L125R_Specification_Sheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_3BR3042N200_Technical_Bulletin.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_3BR3042N200_Technical_Bulletin.pdf

• Flexible neutral design
• Tangential main knockout
• Single key hole mounting
• Factory pre-attached neutral bonding strap
• For use with type BR 1 in breakers
• Outdoor rainproof enclosure
• Copper aluminum wire at 60 to 75 deg C for main lugs
• Standard tin plated aluminum bus for excellent conductivity and corrosion-resistance
• No feed-through lugs
