The compact surface-mount box accepts two QuickPort snap-in connector modules. The box supports voice/data applications in office, retrofit, or other surface-mount environments. It includes an ID window, mounting screws, and adhesive, and is available in four colors: white, ivory, grey, and black.

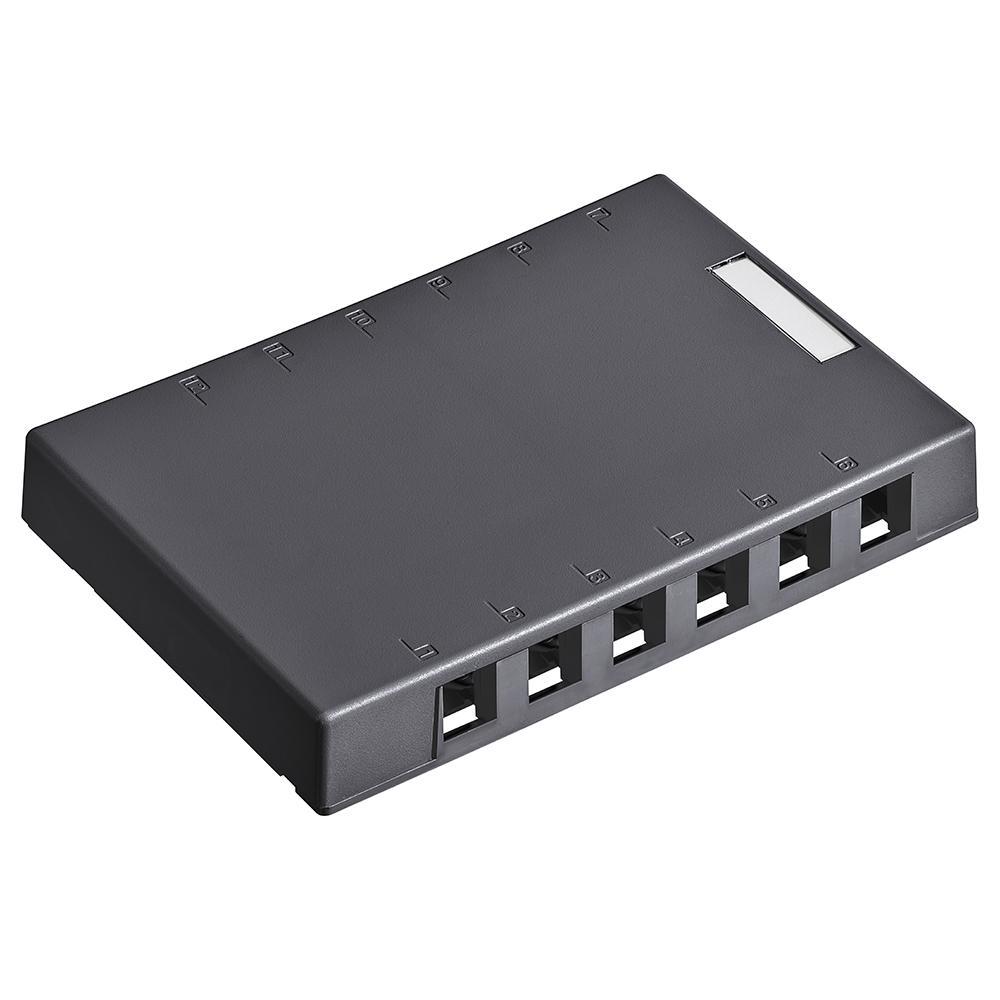

Leviton®, 41089-12E, Outlet Box, 12-Port, Snap-In Module, For Use With: All Individual QuickPort® Modules, Surface Mounting, 1.13 in Length, 524 in Width, 7.6 in Height, Plastic, Black

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/QuickPort_41089_6GP_Instructions.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/QuickPort_41089_6GP_Instructions.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/QuickPort_41089_12E_Data_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/QuickPort_41089_12E_Data_Sheet.pdf

• User provided cover screw can be installed for additional security
• Box base functions as a punchdown platform stabilizing connector modules during termination
• Connector module can be pre-terminated prior to snapping in to housing port
• Designation label provided for identification purposes
• Accept 1 to 12 QuickPort® snap-in connector module, Snap-lock cover speeds entry for adds/moves/changes
• Port numbers molded into base for port identification
• Keyed screw holes mount over standard NEMA openings
• Raceway cable entry knockouts
• Compatible with all individual QuickPort® modules
• Flammability rated UL94 V-0, high impact, fire retardant plastic
• 1.12 in depth
