The modular connector shall meet or exceed requirements for Category 5e described in the ANSI/TIA-568-C.2 specifications. The connectors shall also be in compliance with all National electrical Codes; compliant with ANSI/ TIA-1096-A; UL listed; and independently UL Certified. In addition to Category 5e compliance, the connector shall have the ability to support high-megabit and shared-sheath applications. All plastics used in construction of the connector bodies shall be fire-retardant with a UL flammability rating of 94V-0. Termination of all connectors shall be 110-type IDC with solder-plated phosphor bronze contacts. The connector shall provide a ledge directly adjacent to the 110 style termination against which the wires can be directly terminated and cut in one action by the installer. Connector wiring label shall provide installation color codes for both T568A and T568B wiring schemes. The modular hardware shall fit all other installed telecommunications wallplates outlets and field-configurable patch panels and patch blocks.

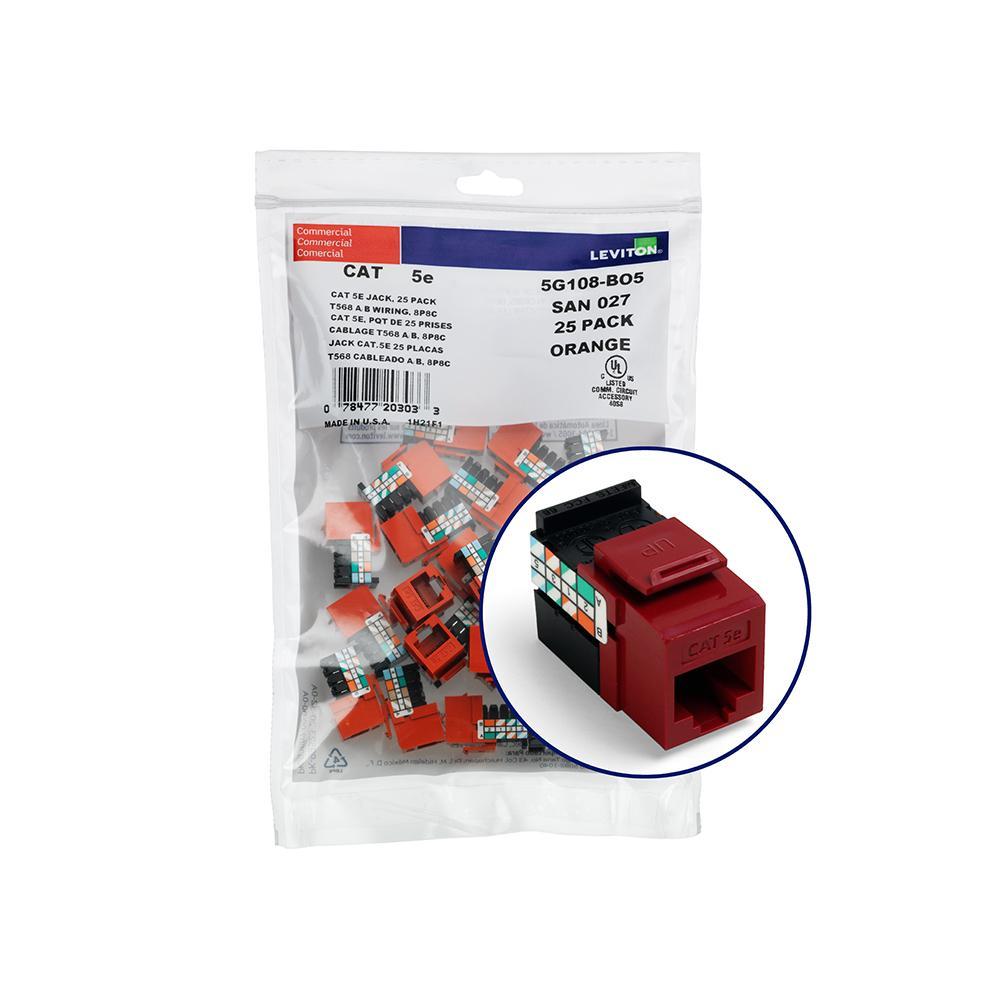

Leviton® QuickPack® eXtreme® QuickPort® UTP Connector, 8-Conductor 8-Position, Cat 5e Module, Panel Mounting, 1 Ports, Plastic, Dark Red, 0.89 in H x 0.64 in W x 1.17 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_5G108_BR5_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_5G108_BR5_Specification_Sheet.pdf
• VIDEO LINK https://www.youtube.com/embed/4kndMLuqxzM

• Permanently laser engraved
• Fire retardant
• Individual port configurability allows specification flexibility
• Narrow body connector allows high port density in a small area
• Robust 1-piece lead frame design
• Performance supports high megabit and shared sheath application
• To ID ports, use different colored modules for each application
• Dual wiring code label allows connector to be wired to either T568A/T568B
• Phosphor bronze contact material
