EATON T20P11B75EE

Share Print

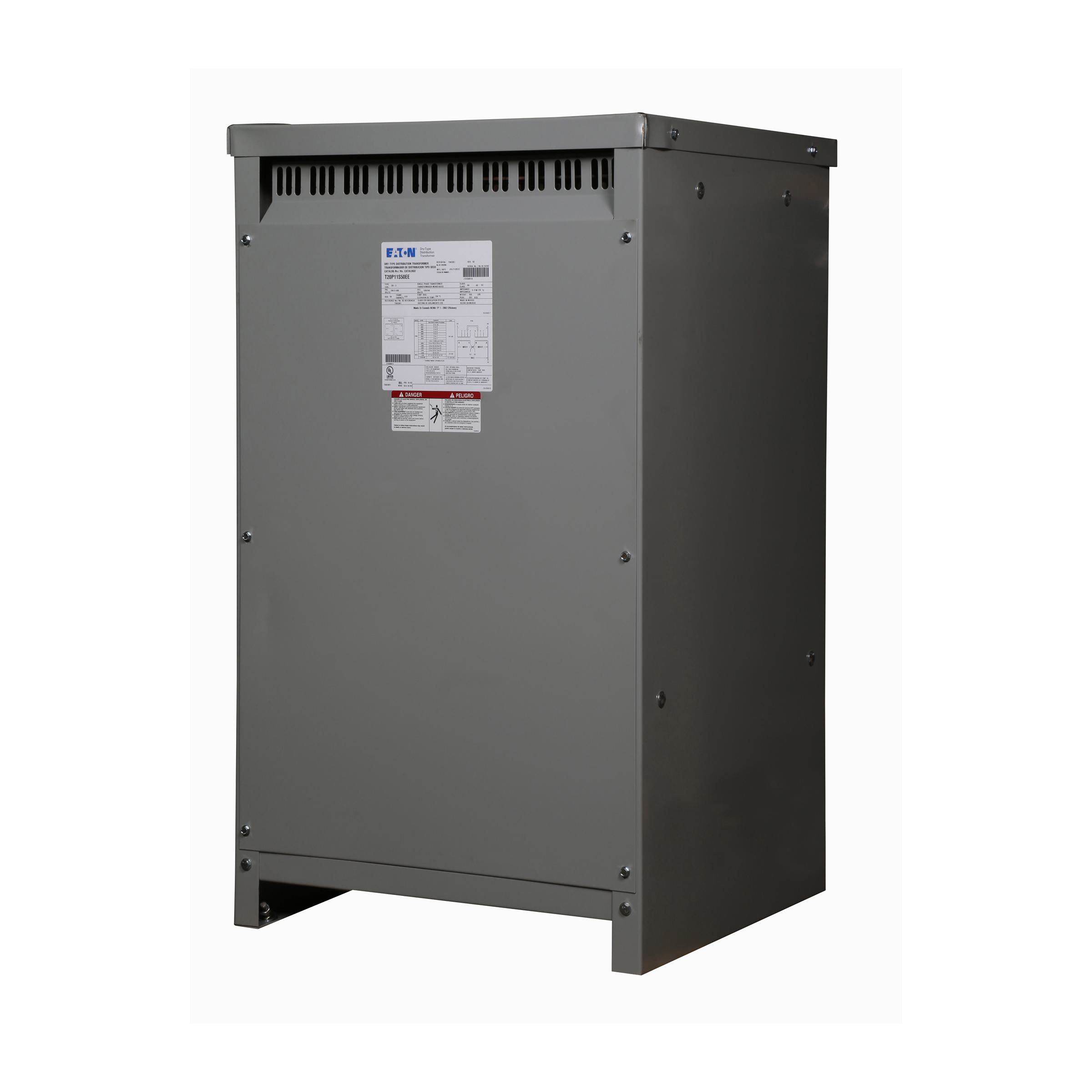

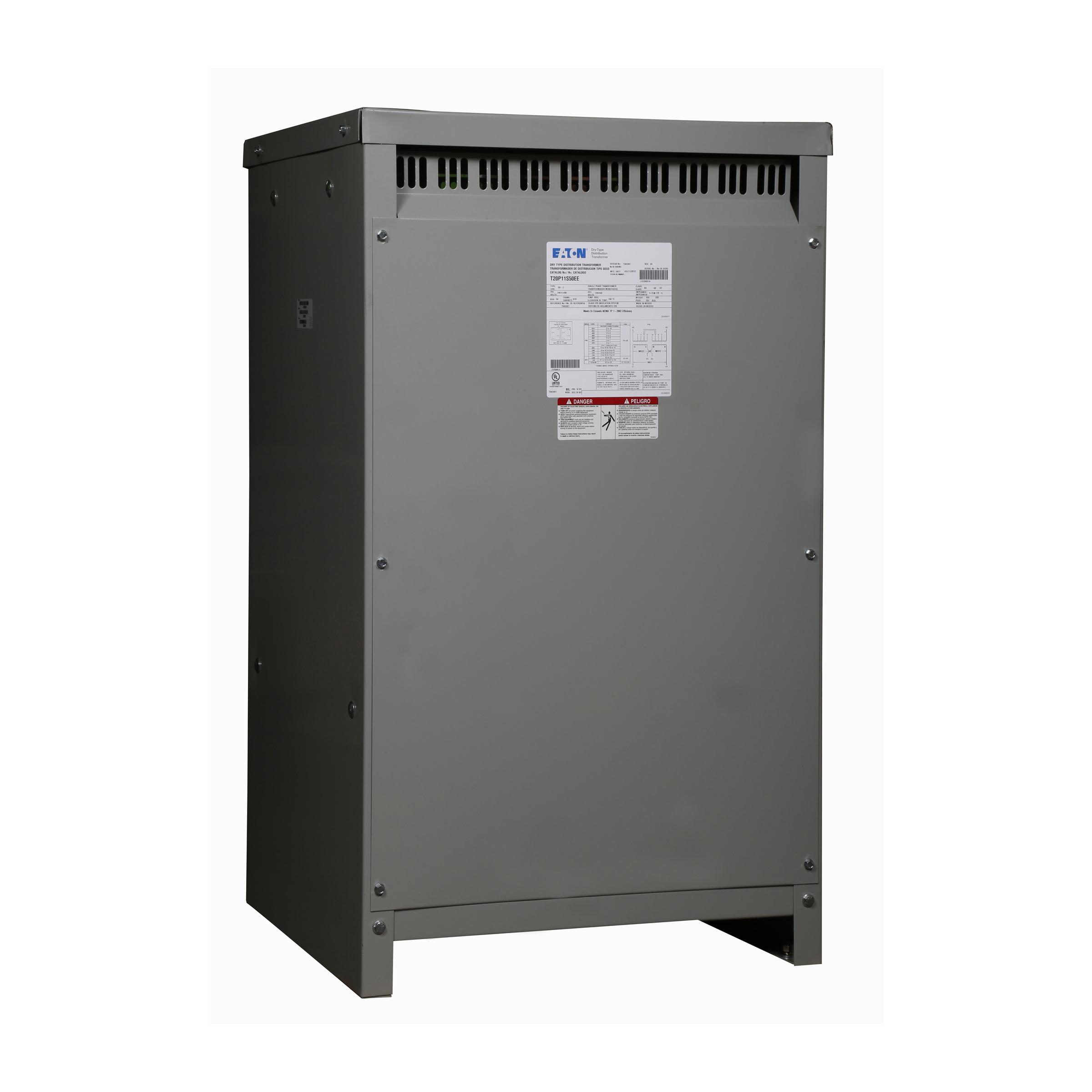

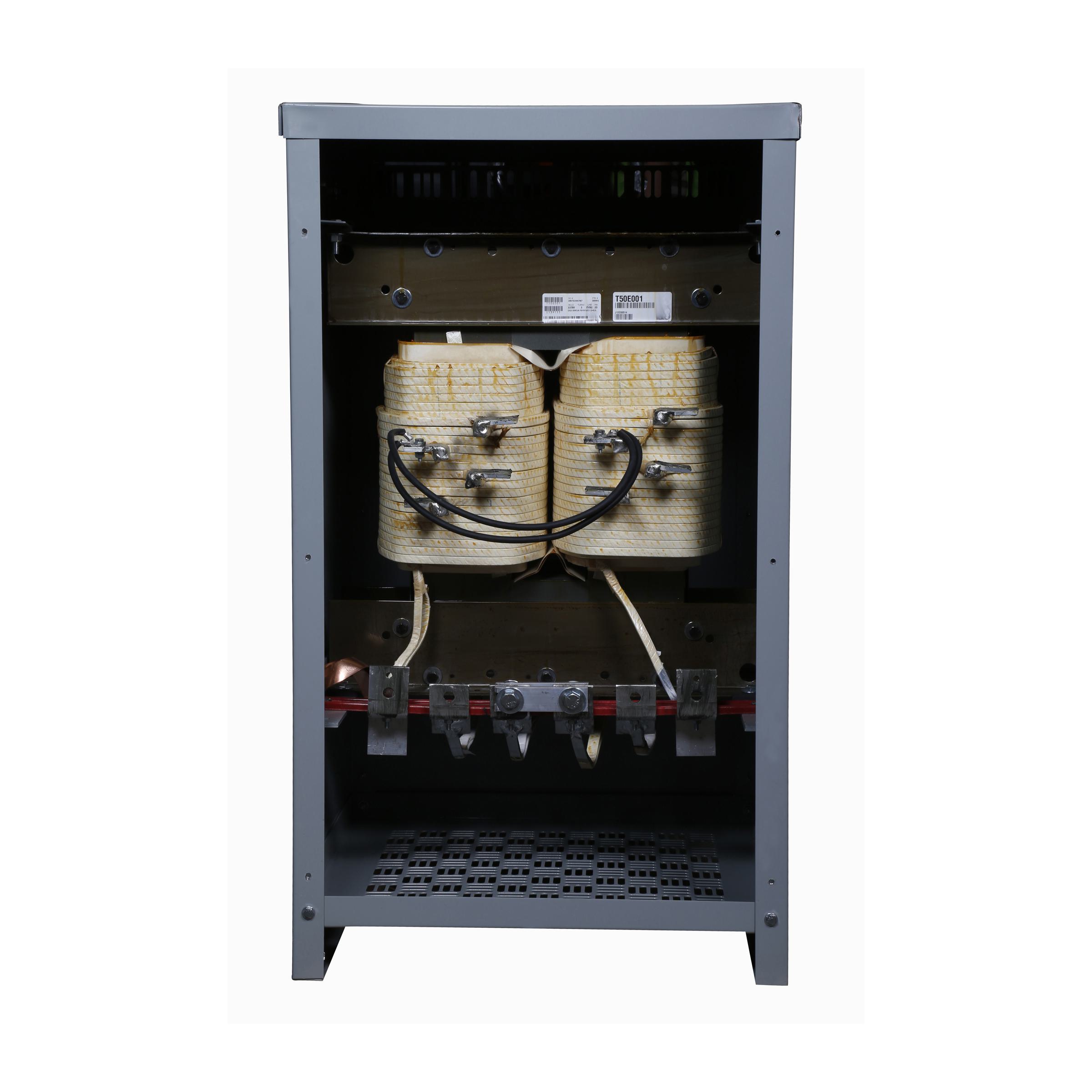

EATON T20P11B75EE Dry Type Distribution Transformer Transformer, 480 VAC Primary, 120 VAC Secondary, 75 kVA Power Rating, 60 Hz, 1 Phase

  • MPN: T20P11B75EE

  • IESPN: 198767

  • UPC: 786680029233

  • Min Order Qty: 1

  • Quantity Interval: 1

    • Availability: loading

    • Branch Availability
EATON T20P11B75EE

EATON Transformer, Dry Type Distribution Transformer, 480 VAC Primary, 120 VAC Secondary, 75 kVA Power, 60 Hz Frequency, 1 ph, 9 Taps, 821 Frame Circuit, Upright Mounting, 220 deg C Insulation, NEMA 3R Enclosure, 80 deg C, Steel Housing Material, 33.91 in L x 29.97 in W x 62.91 in H Dimensions

Type      Dry Type Distribution Transformer
Primary Voltage      480 VAC
Secondary Voltage      120 VAC
Power Rating      75 kVA
Frequency Rating      60 Hz
Phase      1
Number of Taps      9
Circuit Type      821 Frame
Mounting Type      Upright
Insulation      220 deg C
Enclosure Type      NEMA 3R
Temperature Rating      80 deg C
Housing Material      Steel
Dimensions      33.91 in L x 29.97 in W x 62.91 in H
  • WS13 weathershield
  • Aluminum winding
  • 1 at +5% FCAN, 2 at -5% FCBN x 2 at +2.5% FCAN, 4 at -2.5% FCBN tap
