Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.

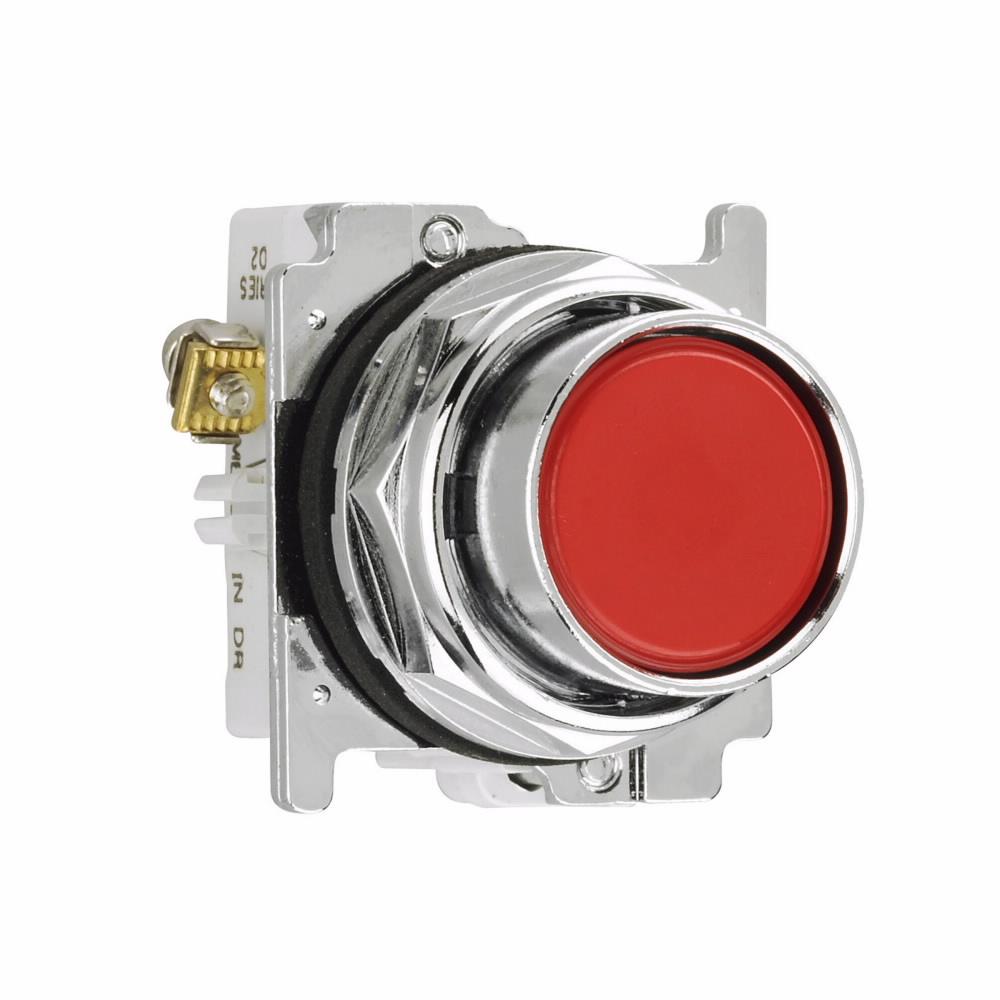

EATON Non-Illuminated Pushbutton, Heavy Duty Oil/Watertight Standard, Series: 10250T, 30.5 mm Size, 1NC Contact Configuration, Momentary Contact Mode, 10 A at 600 VAC Contact, Bezel/Housing: Polished Chrome Bezel, Flush Button Actuator, Screw Terminal, NEMA 3/3R/4/4X/12/13 Enclosure, Flush Mounting, Die-Cast Zinc, Polished Chrome, Red

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_bfb70d27140ae06429e0fa4a53670f1a67af7ff020f8d3097562a5f753f873f6.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_bfb70d27140ae06429e0fa4a53670f1a67af7ff020f8d3097562a5f753f873f6.pdf
• VIDEO LINK http://videos.eaton.com/detail/video/6243433319001/how-to-size-and-select-a-power-supply?autoStart=true&q=power%20supplies

• Heavy duty die-cast zinc construction
• Enclosed silver contacts with reliability nibs
• Diaphragm seals with drainage holes
• Grounding nibs on the operator casing
• Reliability nibs improve contact reliability even under dry circuit and fine dust conditions
• Drainage holes prevent build-up of liquid inside the operator which can prevent operation in freezing environments
• Grounding nibs bit through paint and other coatings to provide secure ground
