Maximum system voltage is up to 240 VAC for AQ panelboard line, field installable kits allow you to shift gears on the fly, standard Pro-Stock™ panels have the capability of adding sub feed breakers or feed-thru lugs in the field, all panel are convertible between main lugs or main breakers, reversible interior. No need to specify top or bottom feed, solid state Spectra RMS™ or thermal magnetic breakers available as mains or sub-feeds, NEMA 1 or 3R/12 enclosures available, flush or surface mounted trims with door within door and front hinge to box options available, extruded split neutrals speed and simplify wiring, main bus ratings of 225 A, 400 A and 480 A available, modular kits allow for field installation of 200% neutrals and service entrance bonding straps, field installable TVSS (transient voltage surge suppression) kits - 200 kA per phase, up to 6 poles of sub feed available in 400 A and 600 A and up to 3-poles of sub feed available in 225 A.

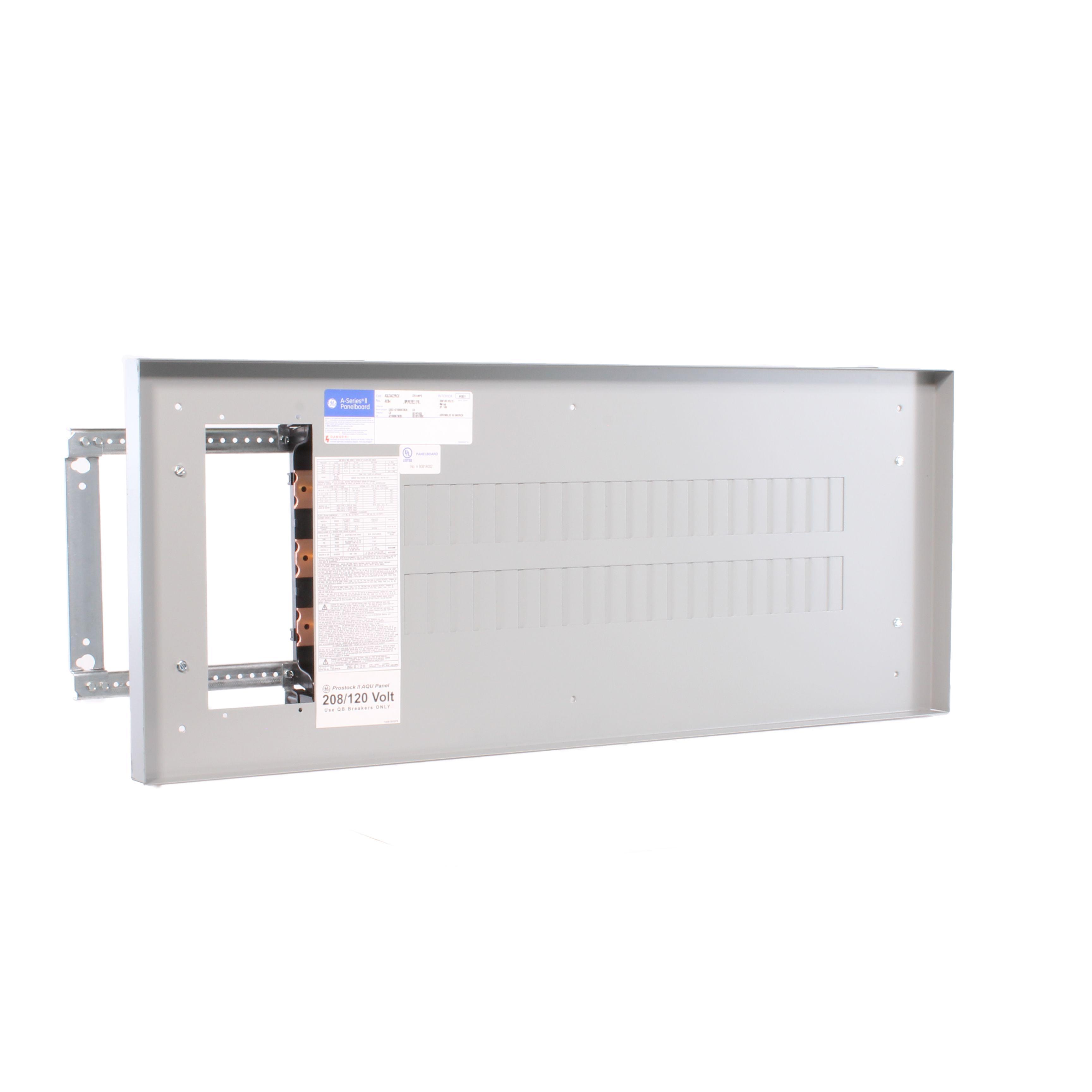

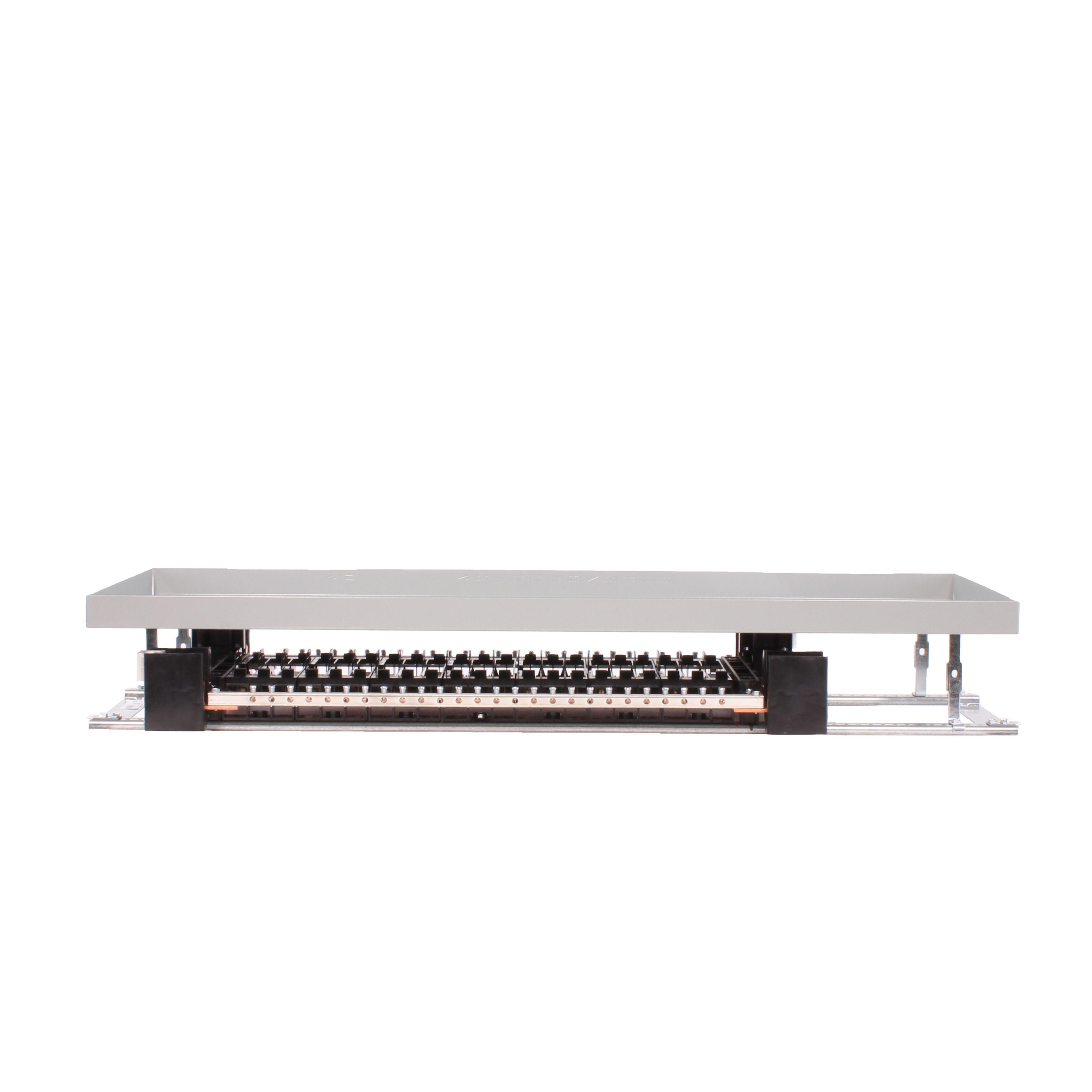

GE A-Series™ II Pro-Stock™ Panelboard Interior, 3-Phase Type AQU Non-Feed-Through, 240 VAC, 225 A, 50/60 Hz Frequency, 65/200 kA Interrupt, 42 Spaces, 100000 A Short Circuit, TQD/THQD/SF/FE Breaker, Bolt-On Breaker Mounting, Copper Bus, Surface Mounting, NEMA 1/3R/12 Enclosure, 20 in W x 5.81 in D x 43.5 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_AQU3422RCXAXB4_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_AQU3422RCXAXB4_Specification_Sheet.pdf

• Wide, easy to install galvanized enclosures with removable end walls
• Standard concealed mounting hardware and hinges
• Interiors that allow straight in wiring
• Split neutral
• Branch bus direct connection
• Captive hardware on branch breakers
• Bus connected TVSS for maximum surge protection
• Symmetrical design, no required top or bottom mountings
