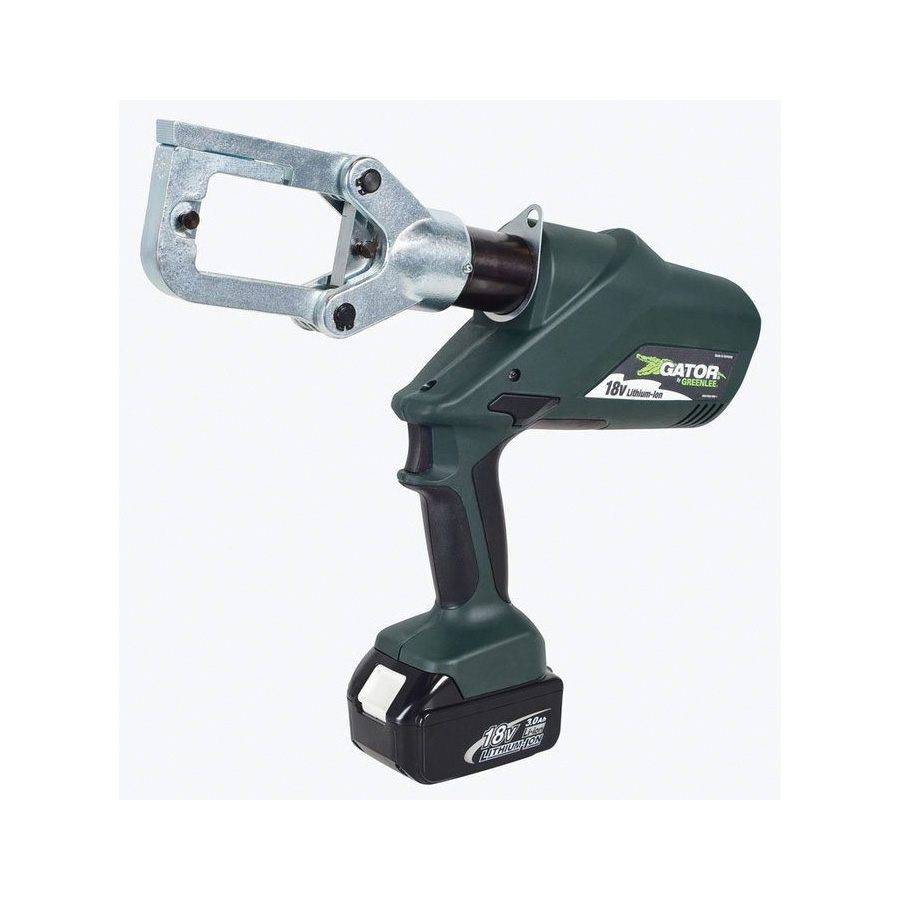

Greenlee® Gator® Crimping Tool, Battery Powered, Bare Tool, Series: CCX, Crimping Capacity: 4 AWG to 1000 kcmil Copper, 6 AWG Aluminum, 6 ton Crimping Force, 18 V, Li-Ion Battery, 3 Ah Battery, Overmolded Tacky Grip, 16 in Overall Length

• Intelligent crimping system technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
• State of the art 18 V lithium-ion (lithium-ion) battery provides 70% more cycles per charge and faster cycle times
• LED light provides the operator with the battery charge and tool maintenance status
• Retraction stop repeat allows the operator to partially retract the ram and then the tool repeats the retraction for subsequent crimps
• Two-stage hydraulic system provides fast advance and power speeds, saving time
• Forward handle position improves tool balance
• One trigger controls all tool functions
• Crimping head rotates 350 deg
• Tools automatically retract when the crimping or cutting cycle is complete
• Overmolded tacky grip areas make gripping the tool easier and more comfortable
• LED work light illuminates dark work areas
• Greenlee® battery powered crimping tools now use bio-degradable oil
• Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
• Available with 120 V, 12 V or 230 V battery charger or with 120 V or 230 V corded adapter in place of batteries and charger
• U.S. patent #6,206,663, #6,532,790
• When used with Greenlee® KC22 and KA22 dies in combination with Anderson, Blackburn®, FCI Burndy, Ilsco, Panduit, Penn-Union® and Thomas & Betts color-coded connectors, connections up to 600 kcmil (copper) and 350 kcmil (aluminum) are UL and cUL classified
• These tools also accept Greenlee®, Burndy®, Kearney®, Blackburn®, Panduit® and Thomas & Betts® dies used for 6 ton tools
• They can drive knockout punches up through 2 in Dia
