Cam-Lok™ "J" series provides the means to quickly connect and disconnect power systems safely. Cam-Lok™ is the industry standard for motors, generators, indoor and outdoor lighting distribution panels and numerous other power applications.

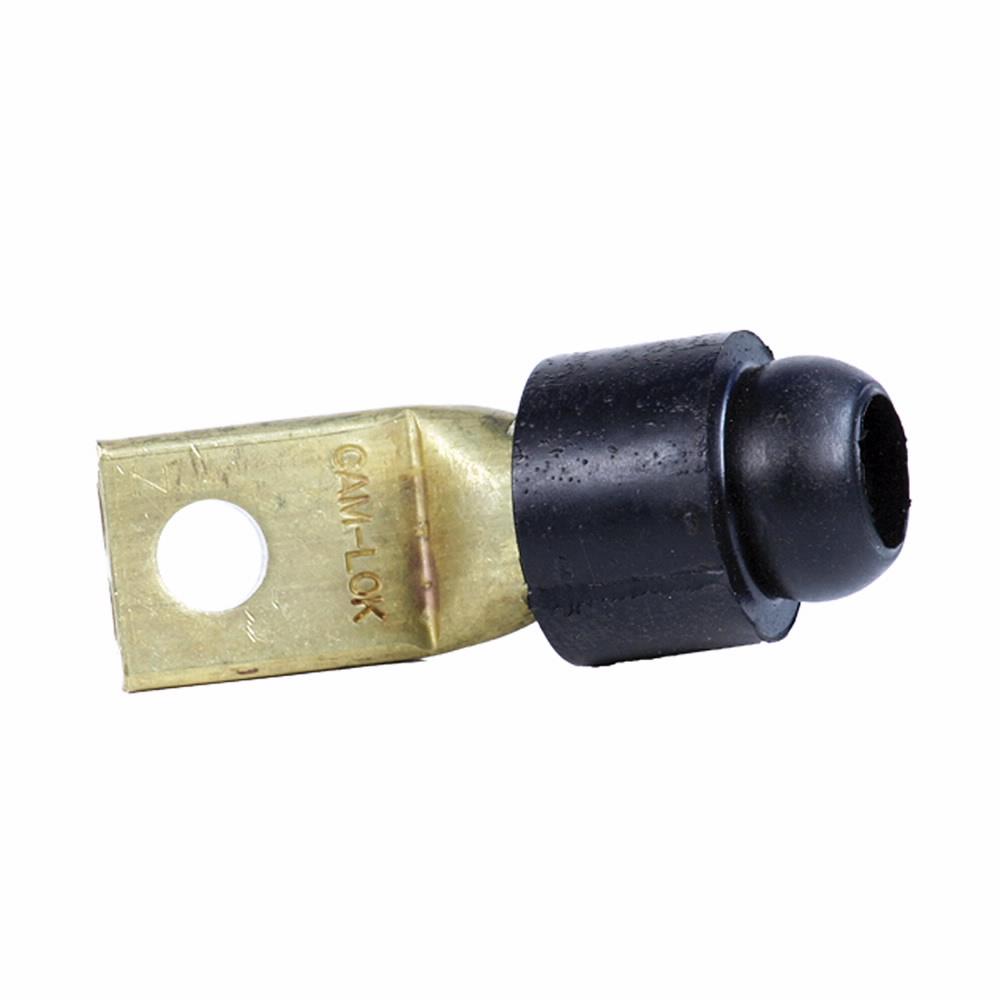

EATON Crouse-Hinds Cam-Lok™ Terminal, Angle, Series: Standard Series E1018, 600 VAC/VDC, 400 A, 8 to 4/0 AWG Wire, Female Connection, Brass Contact, Rubber Housing Material, NEMA 3R NEMA Rating, Panel Mounting, Specifications: 1-Pole, -40 to 105 deg C, Black, 1.5 in Dia x 3.65 in L Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/A100793_1_Catalog_02.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/A100793_1_Catalog_02.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/E1016_1601S_Installation_Manual_04.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/E1016_1601S_Installation_Manual_04.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/E1018_575_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/E1018_575_Specification_Sheet.pdf

• Double cam principle provides a positive, vibration proof connection
• Self-compensating for wear
• No moving contact surfaces, eliminating arcing or burning of contacts
• Superior electromechanical connections
• Locked contacts will withstand a pulling force of 1000 lb
• 1/3 of a turn assures a high pressure contact approaching 600 lb/sq-in providing minimum resistance
• Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
• Watertight body molded from colorfast material, color coded for easy phase identification
• Recessed contacts protected by insulating jacket that extends beyond contact ends for safety
