Halo H99RTAT

Share Print

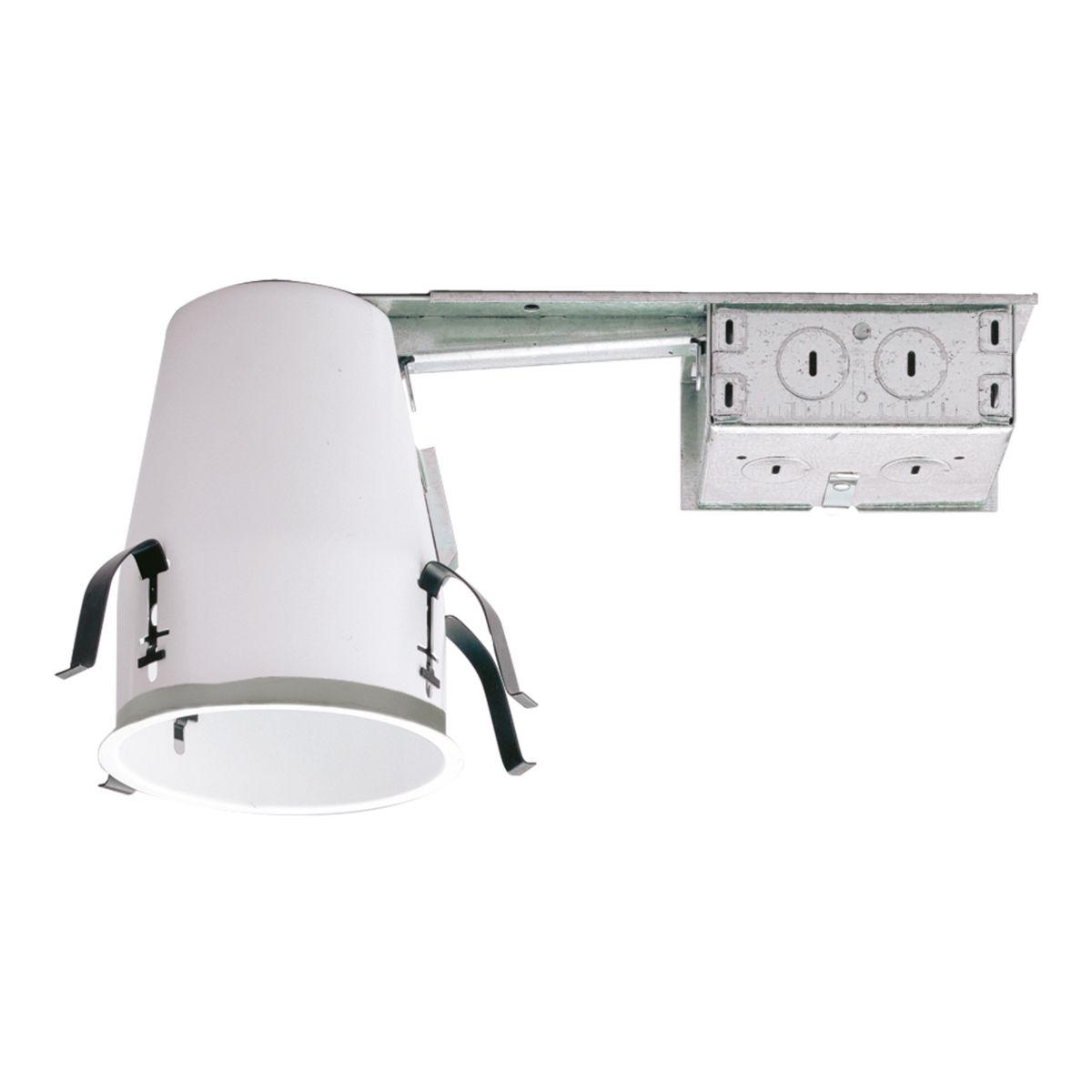

Halo Lighting H99RTAT Small Aperture Recessed Lighting Housing, Incandescent Lamp, Non-IC Insulation, 120 VAC

  • MPN: H99RTAT

  • IESPN: 164970

  • UPC: 080083584369

  • Min Order Qty: 1

  • Quantity Interval: 1

    • Availability: loading

    • Branch Availability
Halo H99RTAT

The H99RTAT is a small aperture non-IC AIR-TITE™ housing for providing accent and task lighting. The H99RTAT is designed for use in non-insulated existing ceilings. Non-IC housing is AIR-TITE™ but insulation must be kept 3 in away from all sides of housing. For installation from below the ceiling.

Halo Lighting Recessed Lighting Housing, Small Aperture, 120 VAC, 4-1/2 in Ceiling Opening, Incandescent Lamp, 60 W Lamp, 1 Lamps, Non-IC Insulation, NEMA 3/3R/4/4X/12/13/IP65 Enclosure, Ceiling Mounting, For Use With: Recessed Downlight Fixtures, 4 in Diameter, 5-1/2 in Height, 4-3/4 in Width, Cold Rolled Steel Housing Material

Type      Small Aperture
Voltage Rating      120 VAC
Ceiling Opening      4-1/2 in
Lamp Type      Incandescent
Lamp Wattage      60 W
Number of Lamps      1
Insulation Type      Non-IC
Enclosure Type      NEMA 3/3R/4/4X/12/13/IP65
Mounting Type      Ceiling
Suitable For Use With      Recessed Downlight Fixtures
Diameter      4 in
Height      5-1/2 in
Width      4-3/4 in
Housing Material      Cold Rolled Steel
  • pdfBrochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1515126330304.pdf
  • pdfBrochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/11143/ID-BRO-v1-HR-HaloRecessedCatalog2016-CA518001EN-bro.pdf
  • pdfSpecification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1518583244870.pdf
  • pdfSpecification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1537666425696.pdf
  • pdfSpecification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/11143/ID-SPE-v1-110470_h99rtat_spec.pdf
  • videoVideo Link http://www.cooperindustries.com/content/public/en/lighting/products/recessed_general_purpose_downlighting/incandescent/_6_inch_housings/_269412.videos.html
  • pdfWarranty https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1511873502812.pdf
  • pdfWarranty https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/http://www.ideadigitalcontent.com/files/11143/StockGuide_Warranty_Page.pdf
  • Quick connect wiring connectors included in junction box
  • Thermally protected
  • Die formed CRS housing with powder coat finish
  • Remodel springs accommodate 1/2 and 5/8 in ceiling material
  • NM cable pry-outs and conduit knockouts in junction box
  • Seven 1/2 in trade size conduit knockouts with true pry-out slot
  • Fixed position porcelain socket with nickel plated brass screw shell provides consistent lamp positioning
