The TQD line of devices include thermal magnetic molded case circuit breakers and molded case switches. The devices are complete with copper aluminum line and load lugs.

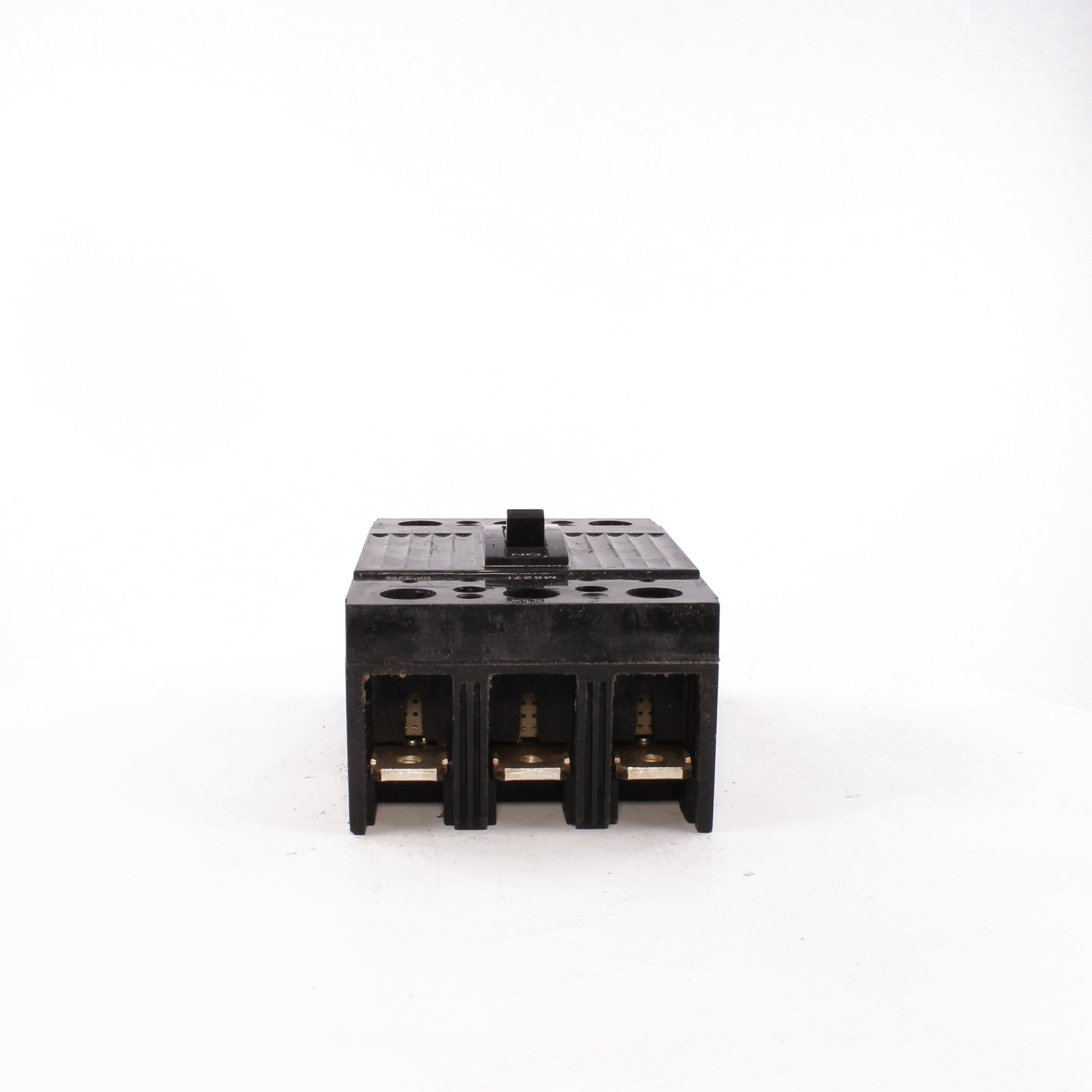

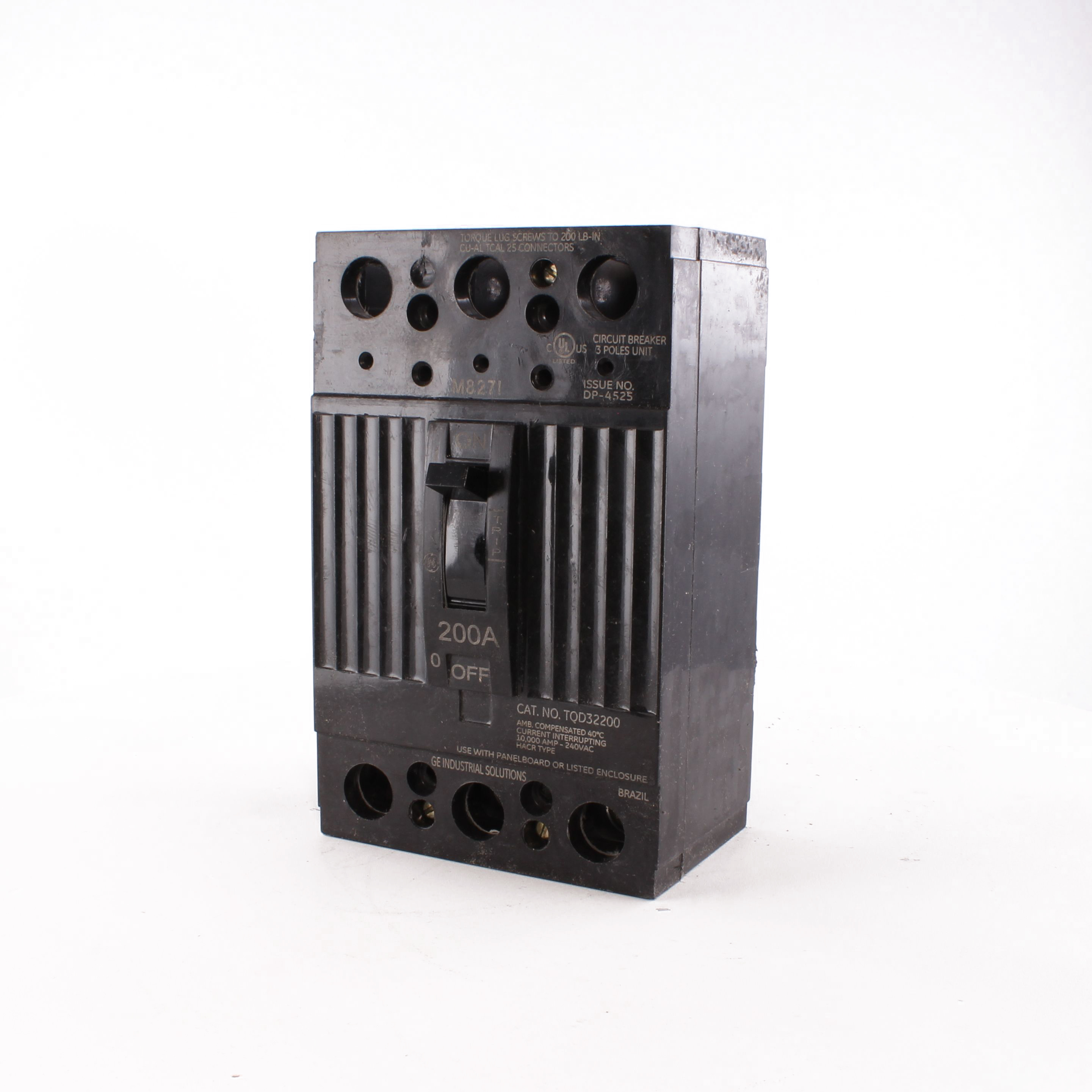

GE Q-Line® Molded Case Circuit Breaker, Type TQD Compact, 240 VAC, 200 A, 50/60 Hz Frequency, 10 kA Interrupt, Q-Line Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Pivot/Toggle Handle Actuator, Load Lug Connection, (2) 1 AWG to 300 kcmil Wire, Bolted-On Mounting, 10 to 50 deg C, 6-9/16 in H x 4-1/8 in W x 2-5/8 in D Dimensions, Plastic

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ef1073cf7394e4a5881bde09bfeb2c8d4d5f05b37cc75a44464abd1afda36b48.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ef1073cf7394e4a5881bde09bfeb2c8d4d5f05b37cc75a44464abd1afda36b48.pdf

• Molded case is molded from high mechanical and high dielectric strength engineered plastic
• Trip indication is shown by handle position midway between on and off, to reset the trip mechanism, move the handle to extreme off, then to on position
• Quick-make, quick-break, trip-free mechanism minimizes arcing during breaker operation, contacts cannot be ''teased'' into position
• Trip-free mechanism is independent of manual handle control, the breaker trips under short circuit or overload, even though the operating handle is held in on position
• VERIFIER™ "twist-to-trip" and ''push-to-trip'' mechanically simulates over current tripping through actuation of linkages not operated by the on-off handle
• Common trip bar assures instant disconnect of all conductors when an overload or short circuit occurs on any one conductor in the circuit or an accessory trip device operates
• Silver alloy contacts combine the conductive properties of silver with other elements for clean, positive electrical contacting, pitting and burning are minimized for longer contact life
• Arc chutes of heat absorbing, insulating material and metal grid plates quickly ''extinguish'' arcs
• UL listed lugs for copper or aluminum cable, at full frame rating, easy access and simple, straight-in wiring
• 10 kA at 120 VAC, 10 kA at 120/240 VAC, 10 kA at 240 VAC interrupt rating
