GE TQD32150WL

Share Print

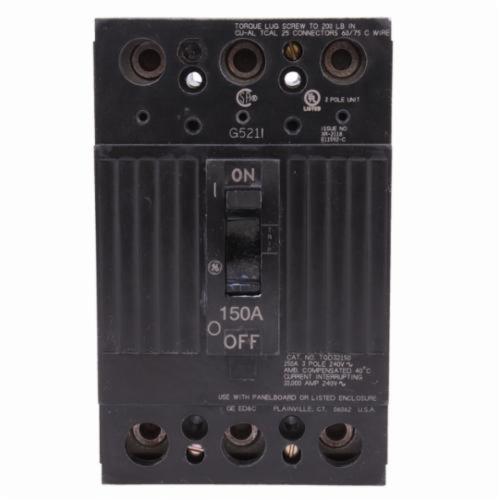

GE Q-Line TQD32150WL Type TQD Molded Case Circuit Breaker, 240 VAC, 150 A, 10 kA, 3 Poles, Long Time/Instantaneous Trip

  • MPN: TQD32150WL

  • IESPN: 76074

  • UPC: 783164021318

  • Min Order Qty: 1

  • Quantity Interval: 1

    • Availability: loading

    • Branch Availability
GE TQD32150WL

GE Q-Line Molded Case Circuit Breaker, Type TQD, 240 VAC, 150 A, 10 kA Interrupt, Long Time/Instantaneous Trip, 3 Poles, 3-Phase, Cable In/Cable Out (Lug-Lug), (2) 1 AWG to 300 kcmil Wire, Bolt-On Mount, 40 deg C, 6-9/16 in H x 4-1/8 in W x 2-5/8 in D

Type      Type TQD
Voltage Rating      240 VAC
Amperage Rating      150 A
Interrupt Rating      10 kA
Trip Type      Long Time/Instantaneous
Number of Poles      3
Phase      3-Phase
Connection Type      Cable In/Cable Out (Lug-Lug)
Wire Size      (2) 1 AWG to 300 kcmil
Mounting Type      Bolt-On
Temperature Rating      40 deg C
Dimensions      6-9/16 in H x 4-1/8 in W x 2-5/8 in D
  • pdfSpecification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520541787585.pdf
  • pdfSpecification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/NEURSPE/20395.pdf
  • The TQD Line of devices include thermal magnetic molded case circuit breakers and molded case switches
  • Non-interchangeable trip
