Cutler-Hammer QBGF1020

Share Print

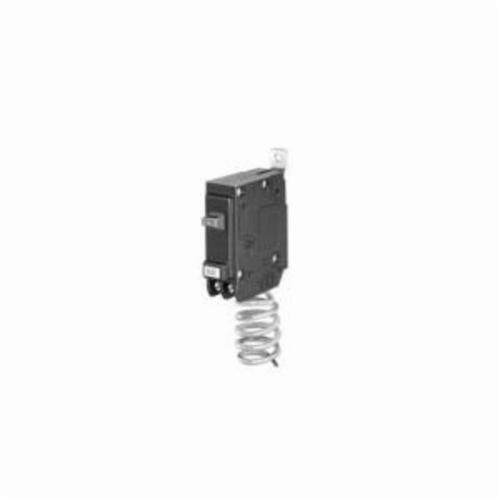

Cutler-Hammer QuickLag™ QBGF Ground-Fault Circuit Breaker, 120 VAC, 20 A, 10 kA Interrupt, 1 Poles

  • MPN: QBGF1020

  • IESPN: 71704

  • UPC: 786679360200

  • Min Order Qty: 1

  • Quantity Interval: 1

    • Availability: loading

    • Branch Availability
Cutler-Hammer QBGF1020

Cutler-Hammer QuickLag™ Ground-Fault Circuit Breaker, Series: QBGF, 120 VAC, 20 A, 50/60 Hz, 10 kA Interrupt, Thermal Magnetic/Non-Interchangeable Trip, 1 Pole, Extended Tang Line/Box Lug Load Terminal, 14 to 4 AWG Wire, Bolt-On Mount, 40 deg C, 12-1/2 in H x 5-1/2 in W x 5 in D

Series      QBGF
Voltage Rating      120 VAC
Amperage Rating      20 A
Frequency Rating      50/60 Hz
Interrupt Rating      10 kA
Trip Type      Thermal Magnetic/Non-Interchangeable
Number of Poles      1
Connection Type      Extended Tang Line/Box Lug Load Terminal
Wire Size      14 to 4 AWG
Mounting Type      Bolt-On
Temperature Rating      40 deg C
Dimensions      12-1/2 in H x 5-1/2 in W x 5 in D
  • Ground fault miniature circuit breaker with thermal magnetic non-interchangeable trip has bolt on mounting
  • It has 5 mA trip sensitivity
  • Circuit breaker has extended tang line terminal, box lug load terminal with a aluminum/copper wire
  • Line terminal extended tangs which bolt directly to the bus
