EATON D3PF3AB
Share

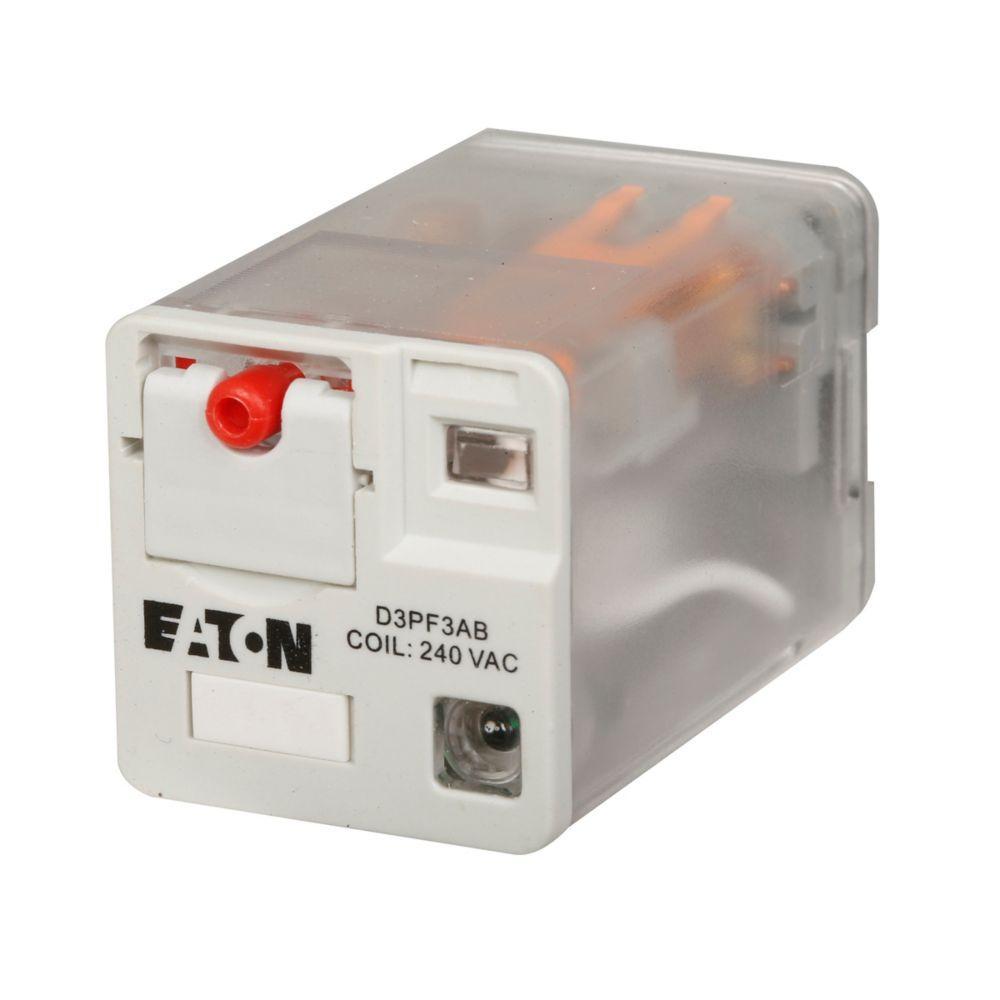

PrintEATON D3PF3AB D3PF Series Full Featured General Purpose Relay, 11 Pin, 3 Form C 3PDT Contact, 240 VAC V Coil
-
MPN: D3PF3AB
-
IESPN: 202206
-
UPC: 782113723983
-
Min Order Qty: 1
-
Quantity Interval: 1
-
-
Availability:
-
-
EATON D3PF3AB
EATON General Purpose Relay, Full Featured, Series: D3PF Series, 1/3 hp, 1/2 hp Power, 50/60 Hz Frequency, 240 VAC Coil, 3 Form C 3PDT Contact Form, 11 Pins, 3 Pole, Octal Base Plug-In Terminal, -22 to 122 deg F, 2.14 in L x 1.6 in W x 0.97 in H Dimensions
| Type | Full Featured |
| Series | D3PF Series |
| Power Rating | 1/3 hp, 1/2 hp |
| Frequency Rating | 50/60 Hz |
| Coil Voltage | 240 VAC |
| Contact Form | 3 Form C 3PDT |
| Number of Pins | 11 |
| Number of Poles | 3 |

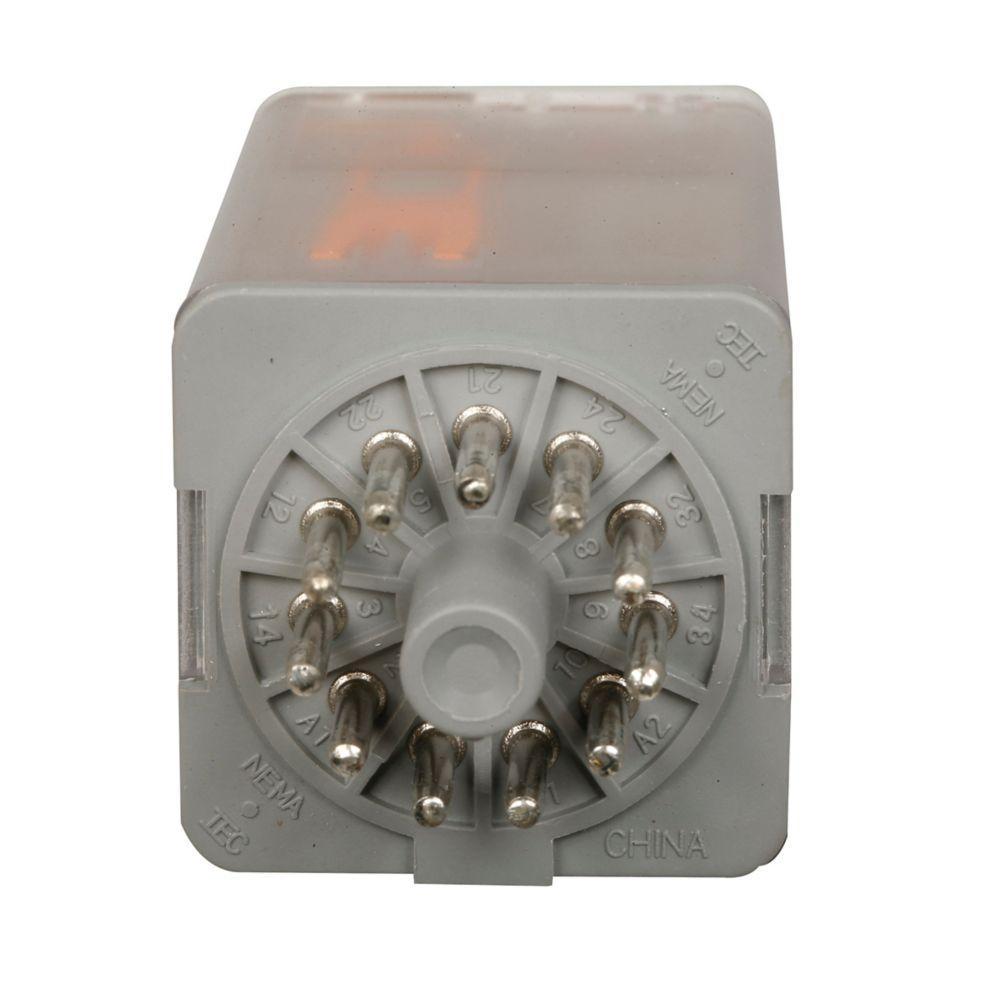

| Terminal Type | Octal Base Plug-In |
| Temperature Rating | -22 to 122 deg F |
| Dimensions | 2.14 in L x 1.6 in W x 0.97 in H |

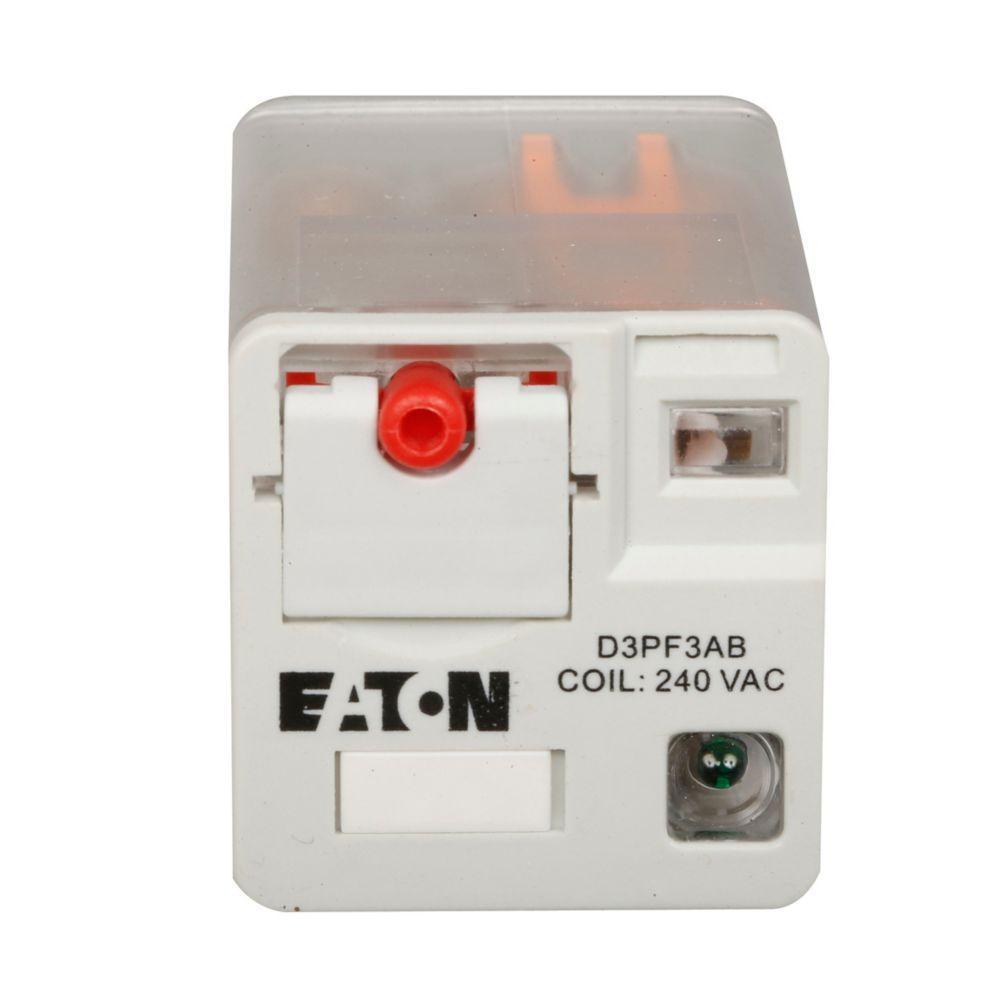

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/D3PF3AB_Specification_Sheet.pdf- Flag indicator shows relay status in manual or powered condition
- LED status lamp shows coil ON or OFF status - ideal for use in low light applications
- Push to test button allows for manual operation of relay without the need for coil power
- Lock down door holds pushbutton and contacts in the operate position when activated
- Finger grip cover allows operator to remove relays from sockets easily
- ID tag/write label to identify relays in multiple relay circuits
- Bi-polar LED allows for reverse polarity applications
- 1/3 hp at 120 VAC and 1/2 hp at 240 VAC maximum hp rating
