Crouse-Hinds series Arktite plugs and receptacles are used to supply power to portable electrically operated devices, such as motor generator sets, compressors, heating and cooling units, welders, conveyors, lighting systems and similar equipment. Also used where temporary power is needed, such as at trailers, building units, heavy machinery or wherever electrical loads must be quickly disconnected from power source.

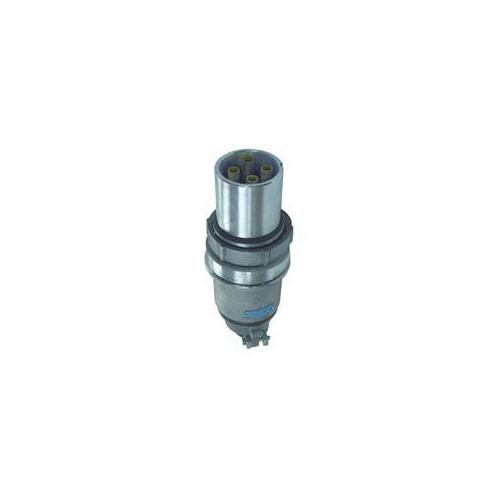

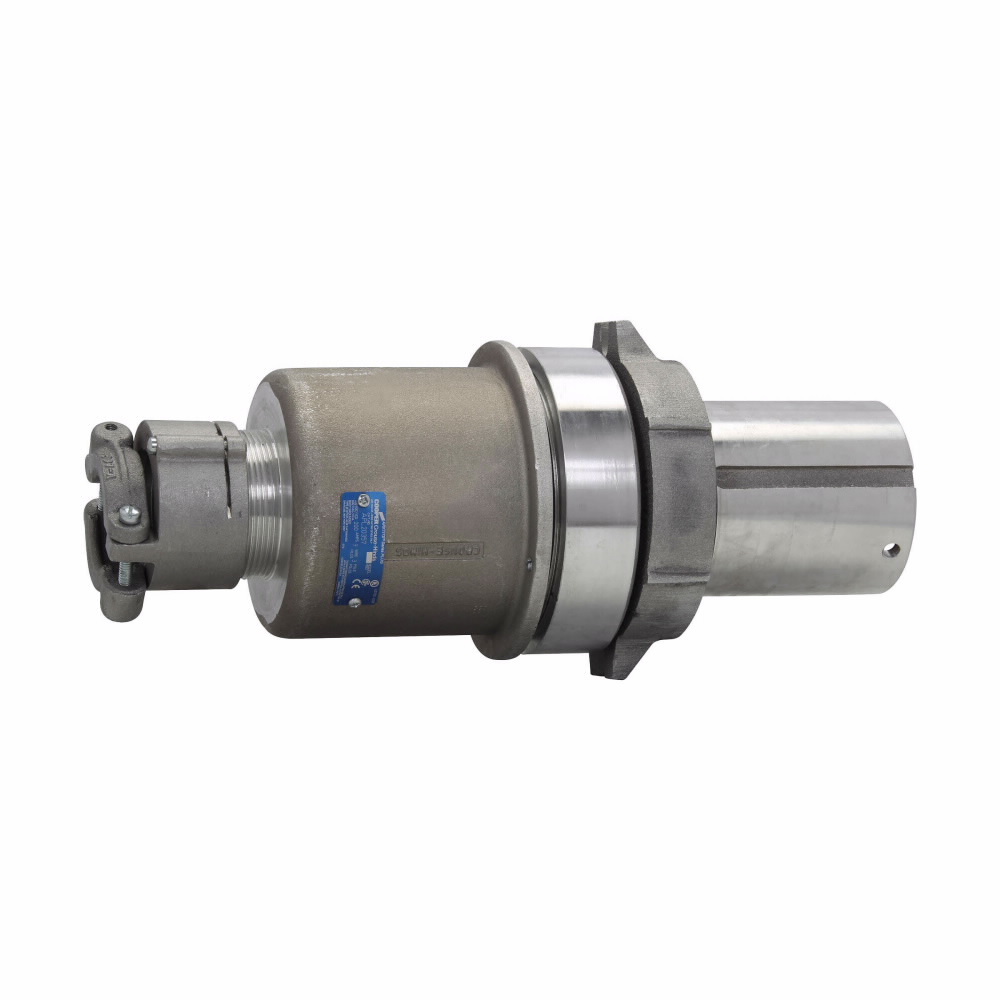

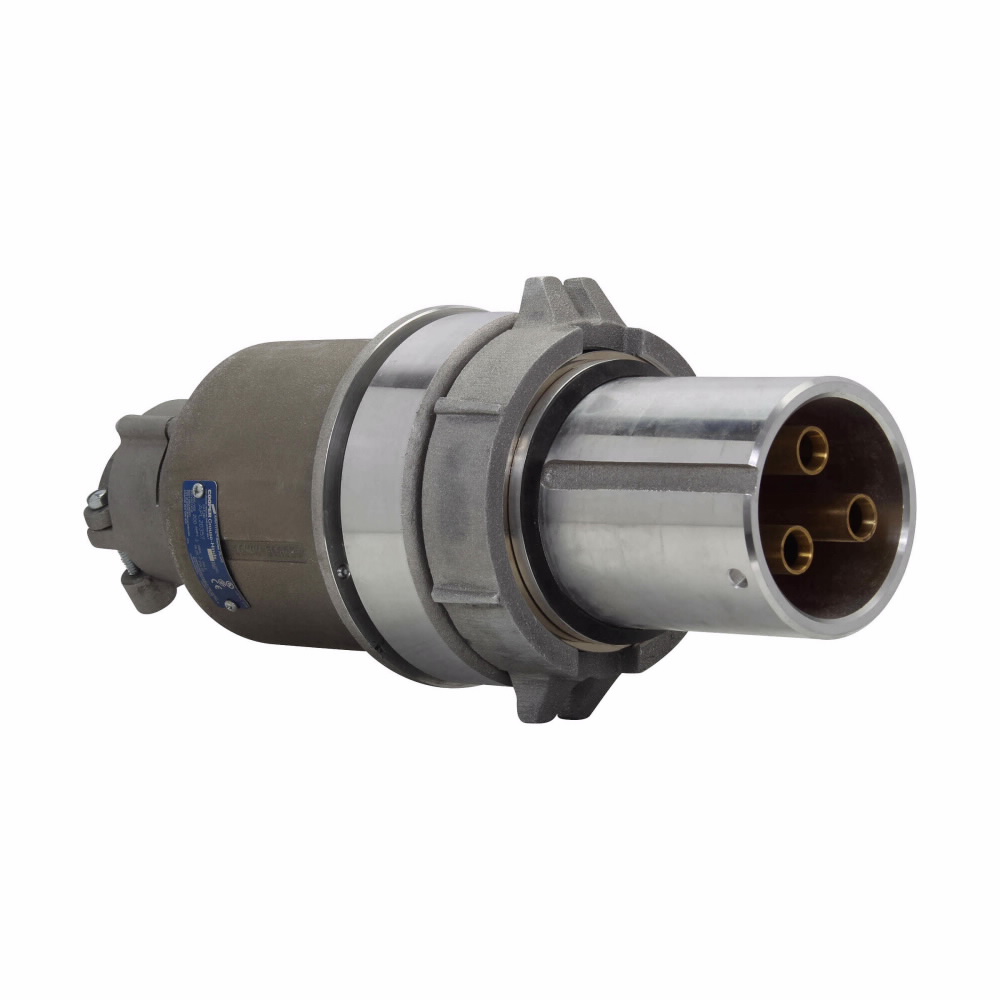

Crouse-Hinds Arktite® Mating Plug, Grounding Style 1 Heavy Duty Watertight Weatherproof, Series: AP Series, 600 VAC/250 VDC, 200 A, 150 hp, 50 to 400 Hz Frequency, 3 Pole, 3 Wires, NEMA 3R/4 NEMA Rating, Crimp/Pressure/Solder Terminal, Copper-Free Aluminum, Natural, 6-3/4 in Dia x 14-3/4 in L Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ec4cd39c7c5181b404d40a19bdc53d3e813650524bc6ac0c832e9e6c260b756d.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ec4cd39c7c5181b404d40a19bdc53d3e813650524bc6ac0c832e9e6c260b756d.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2100c342a10e7485816246cea1ffc6d2b1e3837e781bffe02d22509371dfd9b9.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2100c342a10e7485816246cea1ffc6d2b1e3837e781bffe02d22509371dfd9b9.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7008287bdd9ca7b120b82cfb4abc19d9f914fac151099020494f3eea1fec1b6d.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7008287bdd9ca7b120b82cfb4abc19d9f914fac151099020494f3eea1fec1b6d.pdf

• Grounding contact wire terminators will accommodate ground wire of same size as phase wire
• Spring band contact design provides multiple points of electrical contact, improves electrical reliability and significantly reduces effort required for insertion and withdrawal
• Crimp/solder type contacts are standard
• Larger wire well size connectors will interchange with connectors of other wire well size of same amperage and contact configuration
• Self-closing spring doors on receptacles and cord connectors provide environmental sealing
• Threaded nuts provide positive plug retention
• Two piece plug and cord connector design provide easy installation
• For disconnect use only
