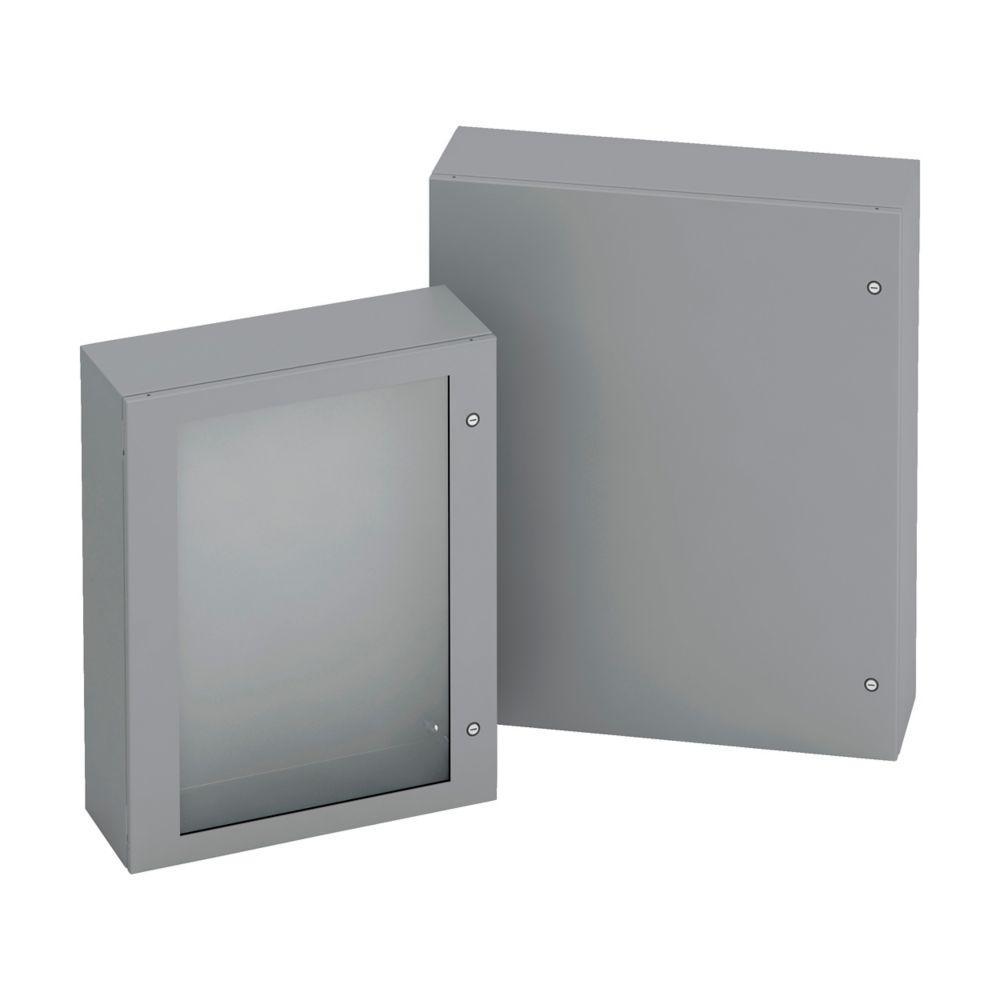

B-Line Electrical Enclosure, 1-Solid Door Slotted, Series: Premier™, 24 in Width, 12 in Depth, 24 in Height, NEMA 4X NEMA Rating, Hinged Cover, 22 in W x 22 in H Panel, Lock: Quarter-Turn Flush Latch/Padlock Handle, Wall Mounting, 304 Stainless Steel, Smooth Brushed, Gray

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/242410_RHCF_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/242410_RHCF_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_242412-SDSS4_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_242412-SDSS4_Specification_Sheet.pdf

• Enclosure and door are fabricated from code gauge type 304 or type 316L stainless steel
• All continuous welded seams are finished smooth
• Hardware kit contains grounding hardware, 0.312 to 18 flanged hex nuts for panel mounting and sealing washers for body mounting holes
• Body flange trough design is formed around body opening to divert liquid contaminants away from door opening
• Reduced width flange design increases enclosure opening
• Ground stud provided on enclosure body with provision on door
• Doors are secured to the body with a unique spring loaded hidden hinge design on one side and slotted quarter-turn flush latches on the opposite side
• Doors are easily removed and interchangeable
• Door has a seamless poured in place gasket
• Door opens 180 deg for easy access

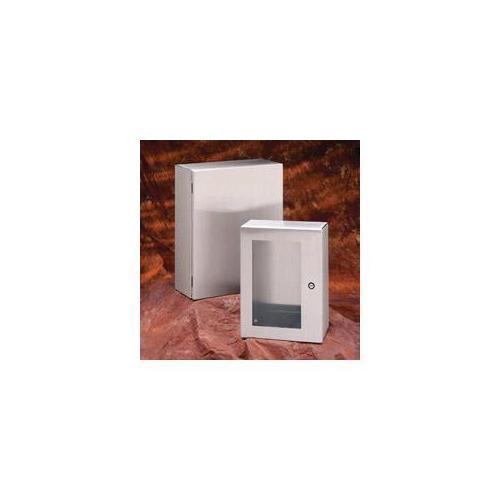

• Window-door enclosures feature flush-mounted clear polycarbonate window
• Utility bracket provides wire management and accessory mounting options
• Protects against corrosion, circulating and windblown dust, falling dirt, dripping non-corrosive liquids, rain, splashing water and hose directed water
