EATON B-Line series enclosure solutions are designed to meet our customer requirements. From standard stock product to modified enclosures, our enclosure experts are available to help you choose the enclosures you want, in the time you need them.

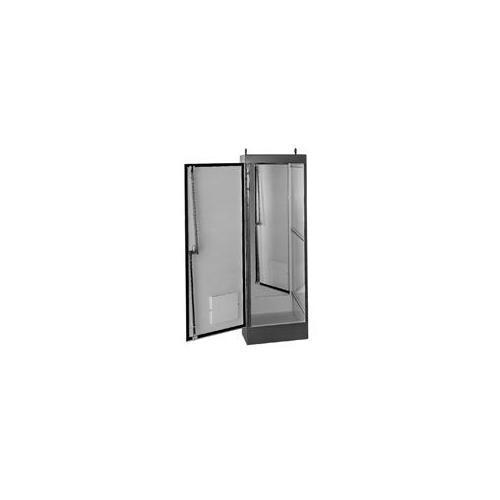

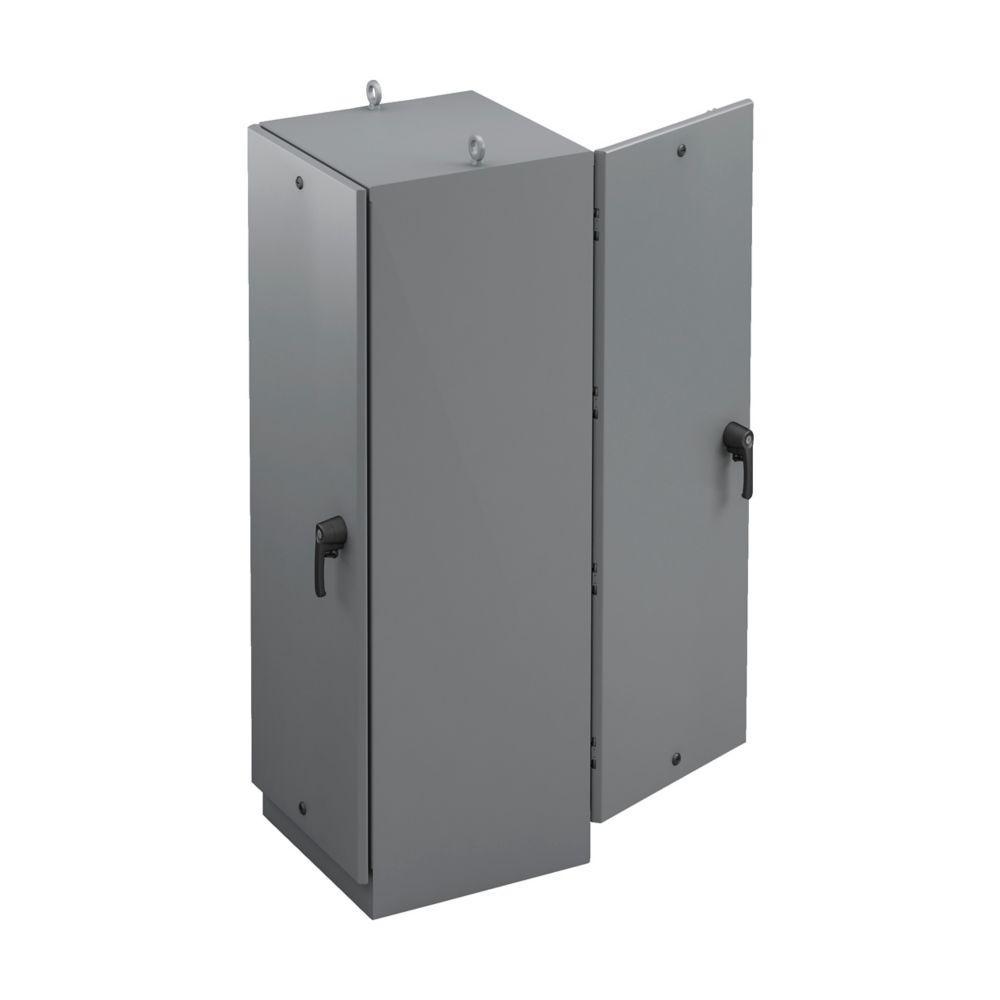

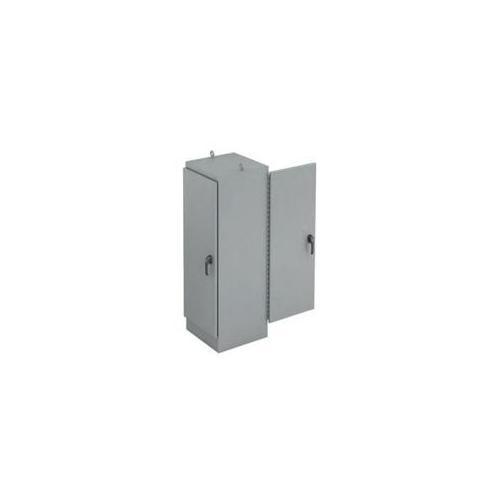

B-Line Ground Mount Enclosure, 1-Door Dual Access, 36 in Width, 36 in Depth, 72 in Height, NEMA 4 NEMA Rating, Hinged Cover, Lock: 3-Point, Freestanding Mounting, Carbon steel, Polyester Powder Coated, Gray

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/1086_SDFQRCC_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/1086_SDFQRCC_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_723636-4FSDA3PT_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_723636-4FSDA3PT_Specification_Sheet.pdf

• Enclosure and door are fabricated from 12 ga steel
• All continuous welded seams are finished smooth
• Doors are secured to the body with removable concealed hinges and a center locating three-point key locking and padlock handle mechanism which closes the right side door over the left door
• Modern bevel profile on hinge side of enclosure door
• Doors have an oil-resistant gasket
• Ground stud provided on door and body
• Print pocket is provided
• Large lifting eyebolts are supplied
• Mounting channels are welded inside for locating panels along enclosure depth
• Swing panels, single full and single half panels can be installed in double door enclosures when the center post is used
• Protects against circulating dust, falling dirt and dripping non-corrosive liquids
• Wash and phosphate undercoat
• 3-pt latching handle
