When specifications call for fire-retardant and/or corrosion-resistant materials, Eaton has an important solution in its B-Line series fiberglass strut system. Two fire-retardant (FR) resins, polyester and vinyl ester, each of which is ideal for corrosive environments.

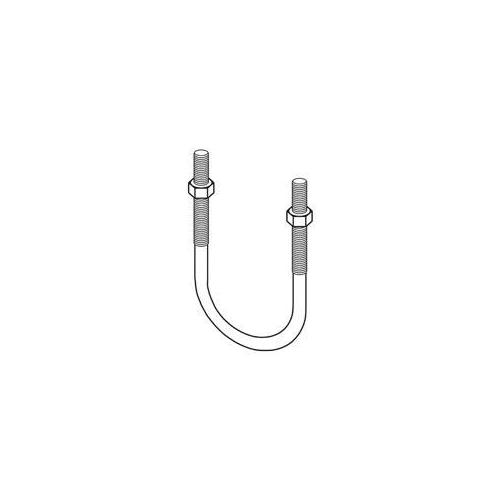

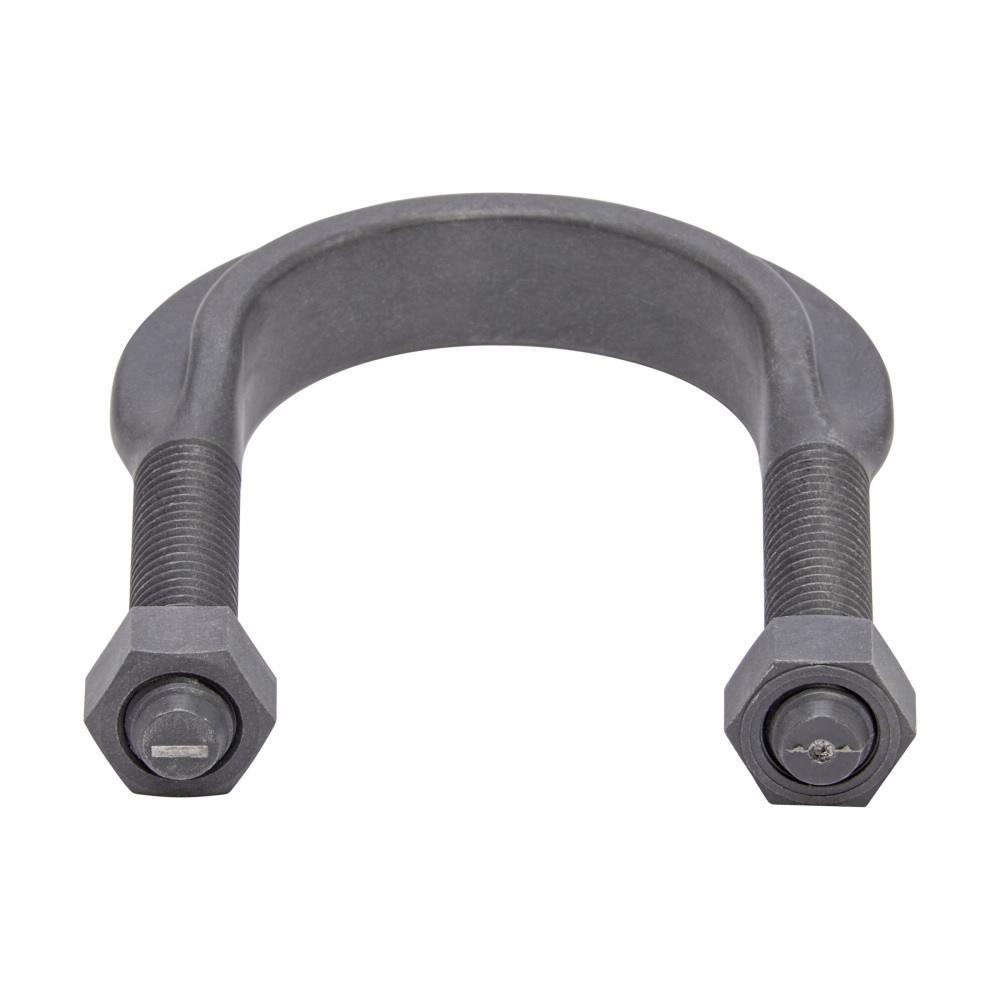

B-Line U-Bolt, Series: BFV501, 3/8-16 in Thread, 1-1/4 in Stud Length, Specifications: 300 lb Load Capacity, For Use With: Strut Channel and Fitting, Fiberglass Reinforced Polyurethane

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BFV136_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BFV136_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_BFV501-11_4_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_BFV501-11_4_Specification_Sheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_BFP22-120_Technical_Bulletin.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_BFP22-120_Technical_Bulletin.pdf

• Design load safety factor of 3
• Load A: straight down loading
• Load B: side loading
• Inner surface of u-bolt is flat to provide additional contact surface area
• 150 lb side design load
• 30 in-lb maximum torque
