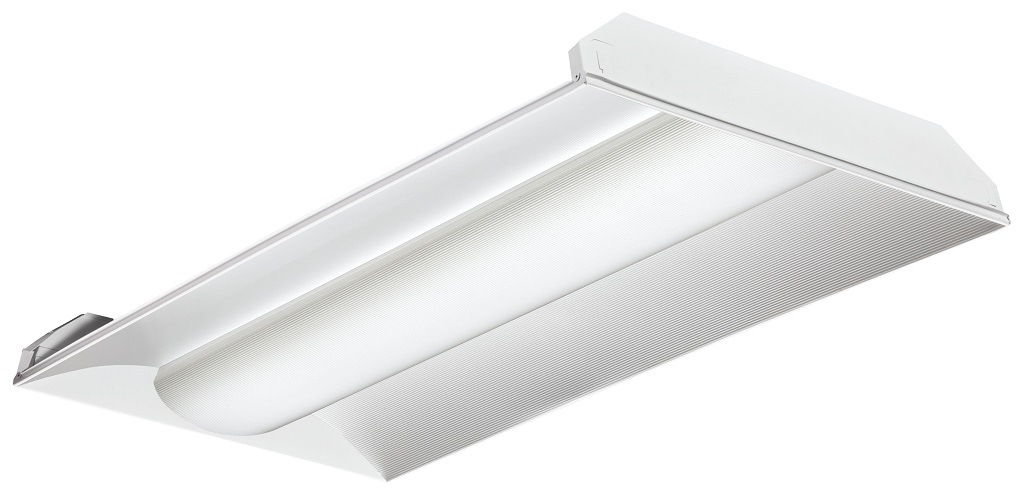

Lithonia Lighting® Volumetric Troffer, Rectangular Traditional, Series: 2VTL4, 120 to 277 VAC, Static LED Lamp, 46 W Lamp, 60000 hr Average Life, White Light, 3500 K Color Temperature, 80 CRI, Acrylic Prismatic Glass Lens, 4800 Lumens, Ceiling Mounting, Steel Housing Material, 48 in L x 24 in W x 4-3/8 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6a94b069c5785ab74a11f43151585afff5e94161cd4d01ef39265b5502368130.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6a94b069c5785ab74a11f43151585afff5e94161cd4d01ef39265b5502368130.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5f935439b3a1f6dc831ed9a47306380a6e0c852b96bfb2d191e3263e149499bb.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5f935439b3a1f6dc831ed9a47306380a6e0c852b96bfb2d191e3263e149499bb.pdf

• Rugged, one-piece cold rolled steel coated polyester, painted after fabrication with embossed facets
• Impact modified, single clear acrylic diffuser provides excellent shielding and wide distribution
• Endplates include integral T-Bar clips
• Fixture may be mounted and wired in continuous rows
• Total fixture height is only 4-3/8 in
• Long life LEDs, coupled with high efficiency drivers, provide superior quantity and quality of illumination for extended service life
• 80% led lumen maintenance at 60000 hours
• EldoLED driver options deliver choice of dimming range and choices for control, while assuring flicker-free, low current inrush, 89% efficiency and low EMI
• Unique lumen management system (option N80) provides onboard intelligence that actively manages the led light source so that constant lumen output is maintained over the system life, preventing the energy waste created by the traditional practice of over-lighting
• Step-level dimming option allows system to be switched to 50% power for compliance with common energy codes while maintaining fixture appearance
• Unique grid interfacing arrangement provides mounting into standard 1 in and 9/16 in tee bar or screw slot grids
• 9/16 in allows fixture trim to hang level with architectural ceiling tiles
• EldoLED dims to 1 %, 0 to 10 V
• LED Emergency battery pack (nominal 1400 lumens
