The nWSX LV / nWSX PDT LV series nLight® wall switch occupancy sensor provides a simple control solution for a small room, in particular one utilizing nLight® enabled digital luminaires. Capable of detecting small motion up to 20 ft (6.10 m), this sensor is perfect for private offices, private rest rooms, copy rooms, closets or any small enclosed space. The nWSX LV uses Passive Infrared (PIR) detection while the nWSX PDT LV utilizes PIR/Microphonics Dual Technology (PDT). This stylish sensor can be programmed locally, via the front push-button(s) or remotely via the nLight® SensorView software. The nWSX LV/nWSX PDT LV includes an integrated photocell (inhibit only disabled by default).

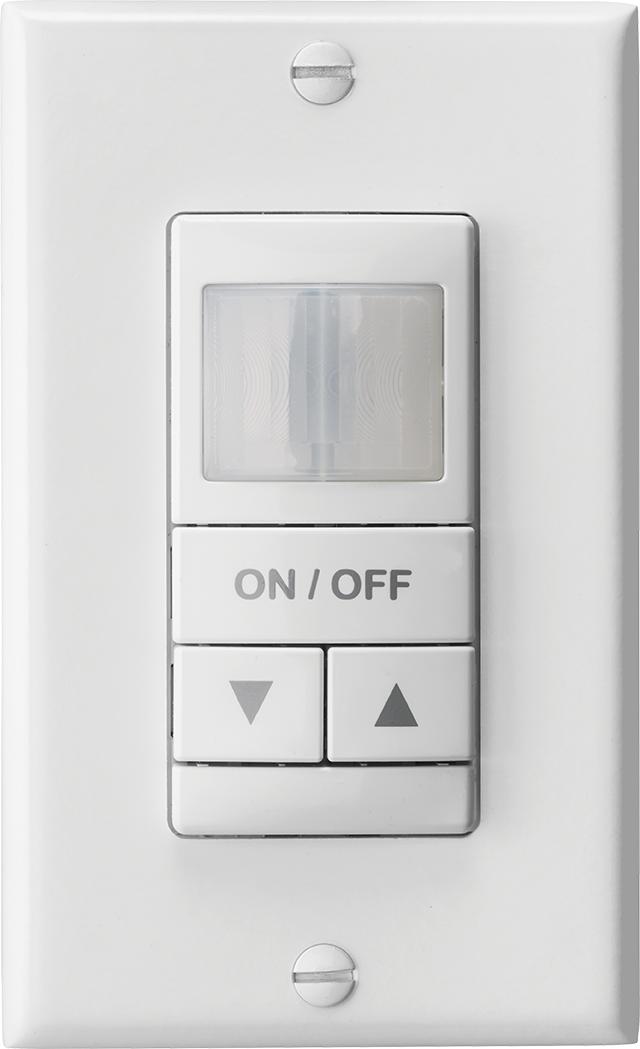

Sensor Switch™, NWSX PDT LV DX WH, Wall Switch Occupancy Sensor, Low Voltage, Series: NWSX, 120/277 VAC, 800/1200 W Power, PIR/Microphonics™Dual Technology Sensor, 20 to 36 ft Coverage, LED Lamp, 50/60 Hz Response, 100% Accuracy, 0 to 60 deg C, Plastic, White, 2.74 in H x 1.68 in W x 1.63 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/nLight_NWSX_PDT_LV_IV_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/nLight_NWSX_PDT_LV_IV_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/nLight_NWSX_PDT_LV_IV_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/nLight_NWSX_PDT_LV_IV_Specification_Sheet.pdf

• 100% digital PIR detection, vandal resistant lens standard, includes wallplate (screwless sold separate)
• Standard temperature range and humidity
• Gloss finish
• For indoor environment
• Push button programmable, adjustable time delays, multiple operating modes
• Multiple nWSX sensors or WallPods can be used in 3-way (or greater) configurations without traveler wires
• Broadcasts occupancy, photocell and switch information over a local and/or global nLight® channel
• Remotely firmware upgradeable
• Raise/lower dim control
• Photocell standard (inhibit only - disabled by default) - not available in night light versions
• < 3 mA bus power consumption
• The nWSX PDT LV DX nLight wall switch occupancy sensor provides a simple lighting control solution for a small room featuring small motion detection up to 20 ft (6.10 m) with 100% digital Passive Infrared (PIR) detection combined with microphonics to detect sound for applications where occupants are stationary for long periods of time perfect for private offices, rest rooms, copy rooms, closets or any small enclosed space
