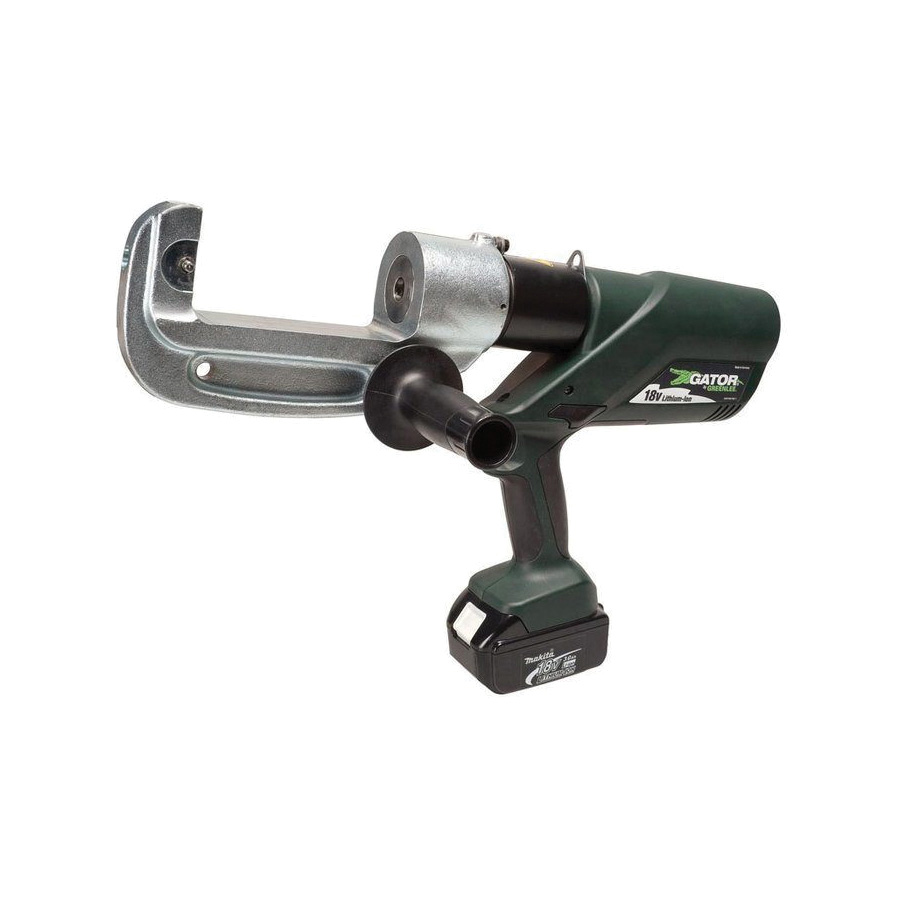

Greenlee® Gator® Crimping Tool, Cordless, Bare Tool, Series: EK1550L, Crimping Capacity: 8 AWG to 1000 kcmil Aluminum/Copper, 15 ton Crimping Force, 18 V, Li-Ion Battery, 3 Ah Battery, Trigger Control, 19-5/8 in Overall Length, 15 in H

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Greenlee_EK1550L11_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Greenlee_EK1550L11_Manual.pdf

• Intelligent crimping system technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
• State of the art 18 V lithium-ion (lithium-ion) battery provides 70% more cycles per charge and faster cycle times
• Automatic retraction stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
• LED light provides the operator with the battery charge and tool maintenance status
• Two-stage hydraulic system provides fast advance and power speed, saving time
• Forward handle position improves tool balance
• One trigger controls all tool functions
• Crimping head rotates 350 deg
• Tools automatically retract when the crimping cycle is complete
• Overmolded tacky grip areas make gripping the tool easier and more comfortable
• LED work light illuminates dark work areas
• Greenlee® battery powered crimping tools now use bio-degradable oil
• Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
• Available with 120 V, 12 V or 230 V battery charger or with 120 V or 230 V corded adapter in place of batteries and charger
• Interchangeable adapters permit the use of a wide variety of crimping dies
• Accepts Kearney PH4/P14 dies without adapter
• Assist handle is included to provide better balance for the tool
