The Z-Max® digital switches are 100% digital, using the Luma-Net® protocol and are specifically designed for use with Z-Max® lighting control relay Cabinets. They connect using the same wire and connectors as other Luma-Net® products (D4200, D8000) and can be ordered from one button to 10 buttons per gang mounting in a standard deep switch box.

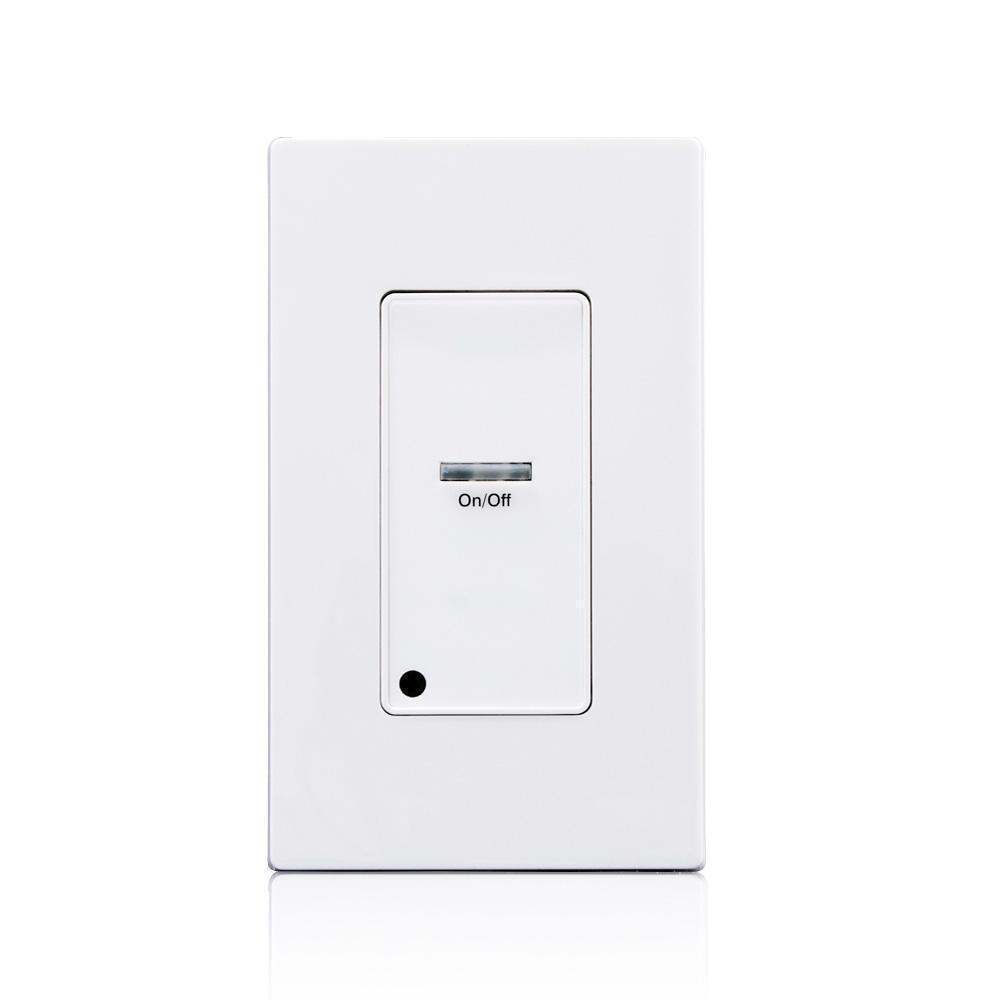

Leviton® EZ-Max® Pushbutton Station, 1-Gang Digital, 24 VDC, 25 mA, Operation Mode: On/Off, (1) Button Control, Surface Mounting, 32 to 104 deg F, White, 4-5/16 in H x 1-5/8 in W x 1-3/4 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_ZMDSW_10W_Instruction_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_ZMDSW_10W_Instruction_Sheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_af94c93b39a7cc2403a2ab343d3756fb7456a0734cedfc236c12c8c1b64bddb9.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_af94c93b39a7cc2403a2ab343d3756fb7456a0734cedfc236c12c8c1b64bddb9.pdf

• Status LED for each button provides true relay status
• Matching screwless wallplate
• Install up to 127 digital switches and cabinets on a sub network
• Switches can be programmed for ON, OFF, ON/OFF, groups or presets/scenes
