E47 Precision switches from EATON electrical sector provide high accuracy switching at an affordable price. A variety of standard features, such as current capacity, operating force, travel characteristics and actuators, lets you custom fit the switch to your application. The switches are available in their compact basic form, or enclosed in a rugged, metal housing.

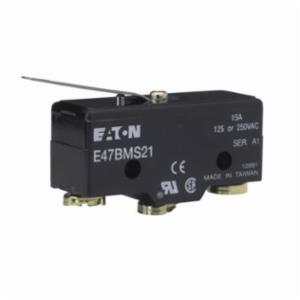

Cutler-Hammer Precision Limit Switch, Basic, Series: E47, 500 VAC/250 VDC, 15/0.2 A, SPDT, 15 A at 125 VAC/15 A at 14 VDC Contact, 1 Pole, 15 MOhm Closed Contact Resistance, Spring Return, Reversed Lever, Screw Terminal, NEMA 1, 0.69 in L x 1.19 in W x 2.41 in H, 20 Operations/min Operating Cycles, -13 to 176 deg F Operating, Mineral Filled Phenolic

• Catalog https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_E47BCC06_Catalog.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_E47BMS21_Datasheet.pdf

• Compact housings are ideal for use where space is restricted
• Precision, snap action operators provide accurate repeatability of electrical and mechanical operating characteristics
• High current capacity (up to 20A) allows power load switching and motor handling capability
• 0.01 to 1 m/sec operating speed
• 120 operations/min mechanical operating frequency
• 3000000 operations mechanical and 500000 operations minimum electrical life
• 1000 VAC, 50/60 Hz for 1 minimum between non-current carrying parts and 2000 VAC, 50/60 Hz for 1 minimum dielectric strength
• 15/32 in threaded bushing
• Aluminum die casting (ADC-3/A380), nitrile, butyl rubber (NBR) seal boot
• 1/2 in NPT conduit fitting on enclosed type
• 100 MOhm minimum at 500 VDC insulation resistance
