EATON Crouse-Hinds mogul pulling elbows facilitate wire pulling in 90 deg bends to allow changes in conductor direction. The pulling elbows can also be used to allow conductor entrance into buildings. With the smooth finish and large dome cover, wires can be easily pulled through without compromising the wire insulation. The gasketed cover creates a raintight chamber and the copper-free aluminum construction provides increased corrosion resistance, making the mogul pulling elbow ideal for any outdoor application.

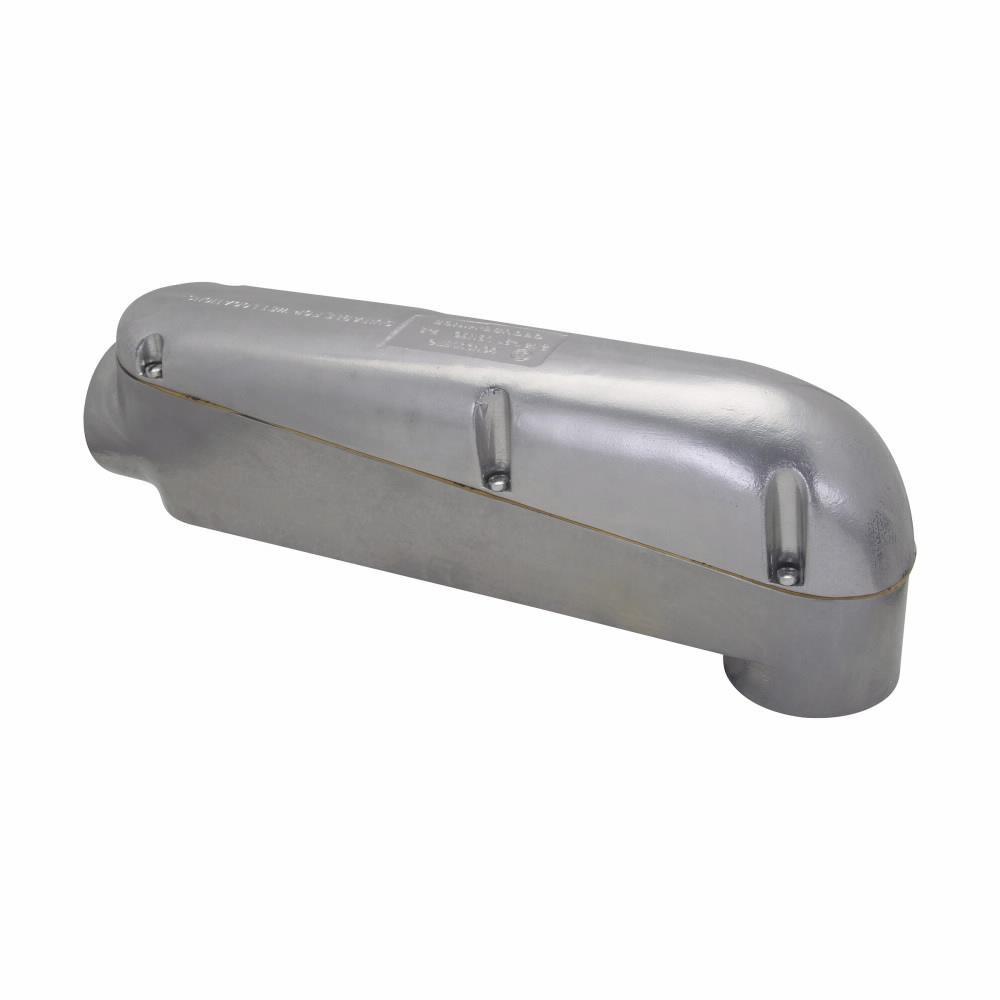

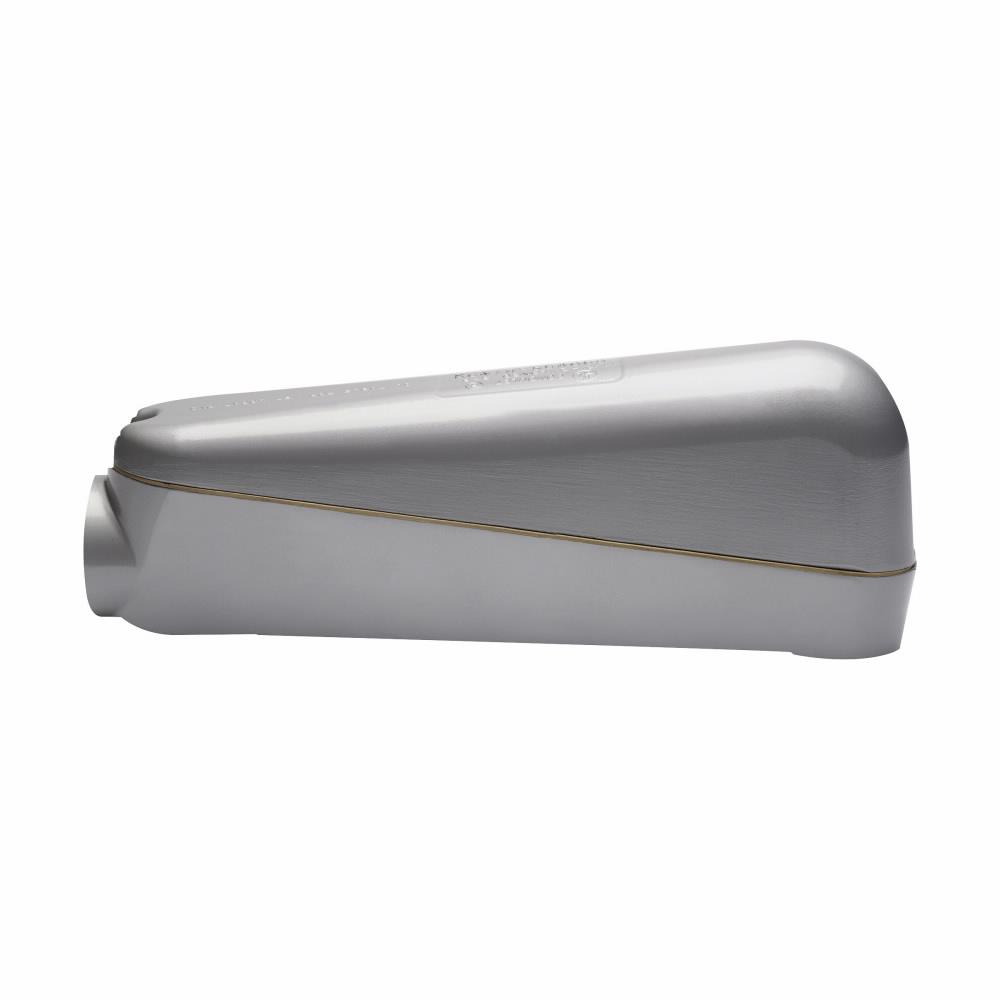

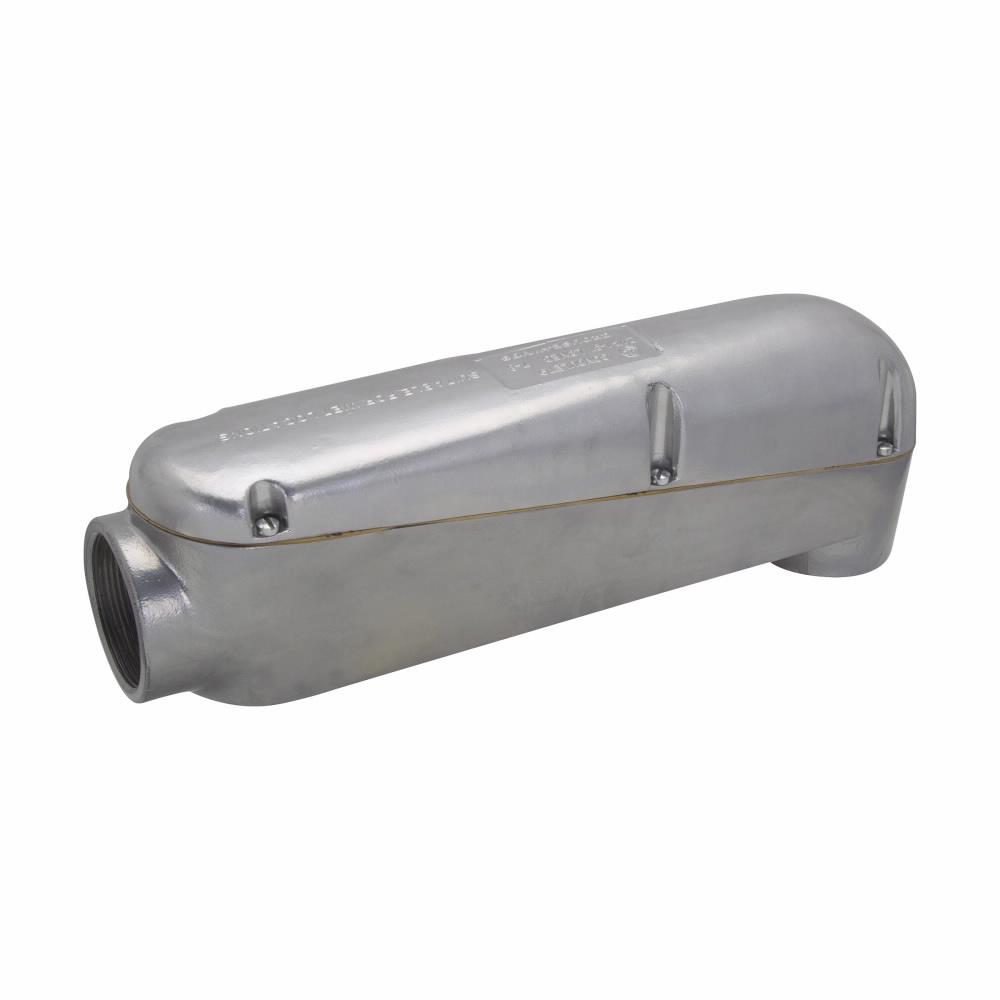

EATON Crouse-Hinds Condulet® Mogul Pull Elbow, Tapered Threaded, 2 in, 90 deg, For Use With: Rigid/IMC Conduit, Die Cast Copper-Free Aluminum, Metallic Painted, 14-17/32 in L x 3-1/8 in W x 5-13/32 in H

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/LBNEC8_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/LBNEC8_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/LBNEC6_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/LBNEC6_Specification_Sheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/LB38SS_Technical_Bulletin_02.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/LB38SS_Technical_Bulletin_02.pdf

• Large dome cover permits easy, straight through pull
• Dimension from center line of back hub to bushing of end hub exceeds six times the trade diameter of the conduit
• Tapered threads provide easy assembly and tight construction
• Heavy duty machine screws for cover
• Cover gasket provides long, dependable service and protection against the elements, such as fuel, oil and water
• Smooth design and finish make handling easy and complement any construction job
• Fuel, oil and water-resistant flex seal gasket
• Corrosion-resistant
• 250 kcmil maximum wire
