Eaton offers the industry’s most complete line of ACDs. Devices are available in fused, non-fused, molded case switch or three phase designs, and in metal or plastic enclosures for all application. An Air Conditioning Disconnect (ACD) provides an installer or repair personnel with a visible disconnecting means while performing maintenance on an air conditioning unit.

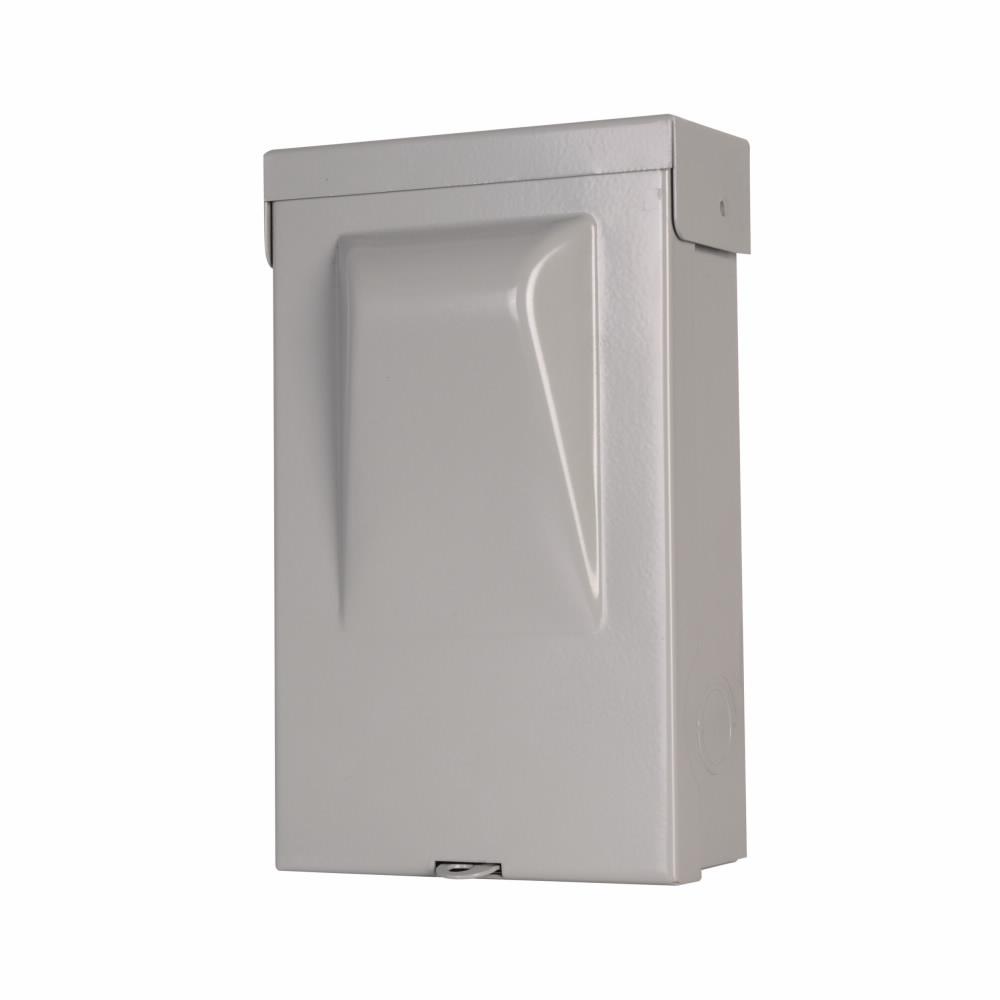

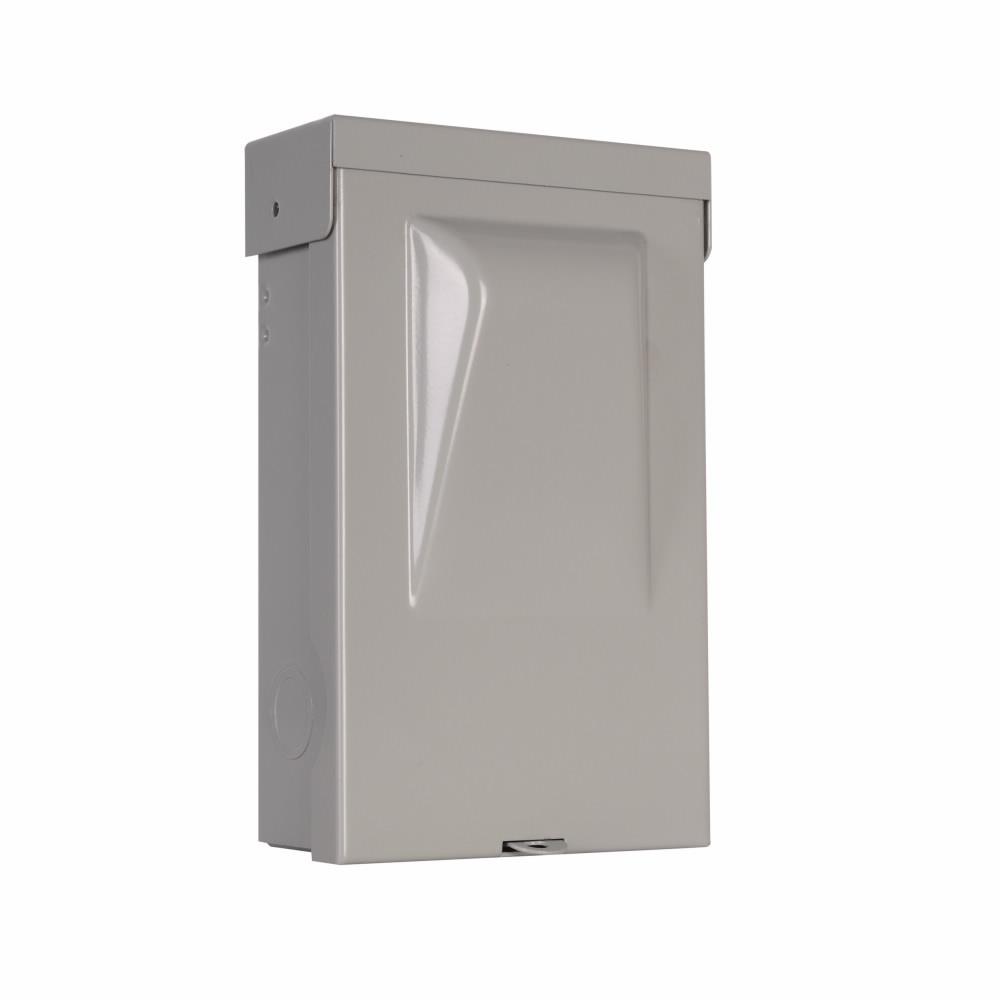

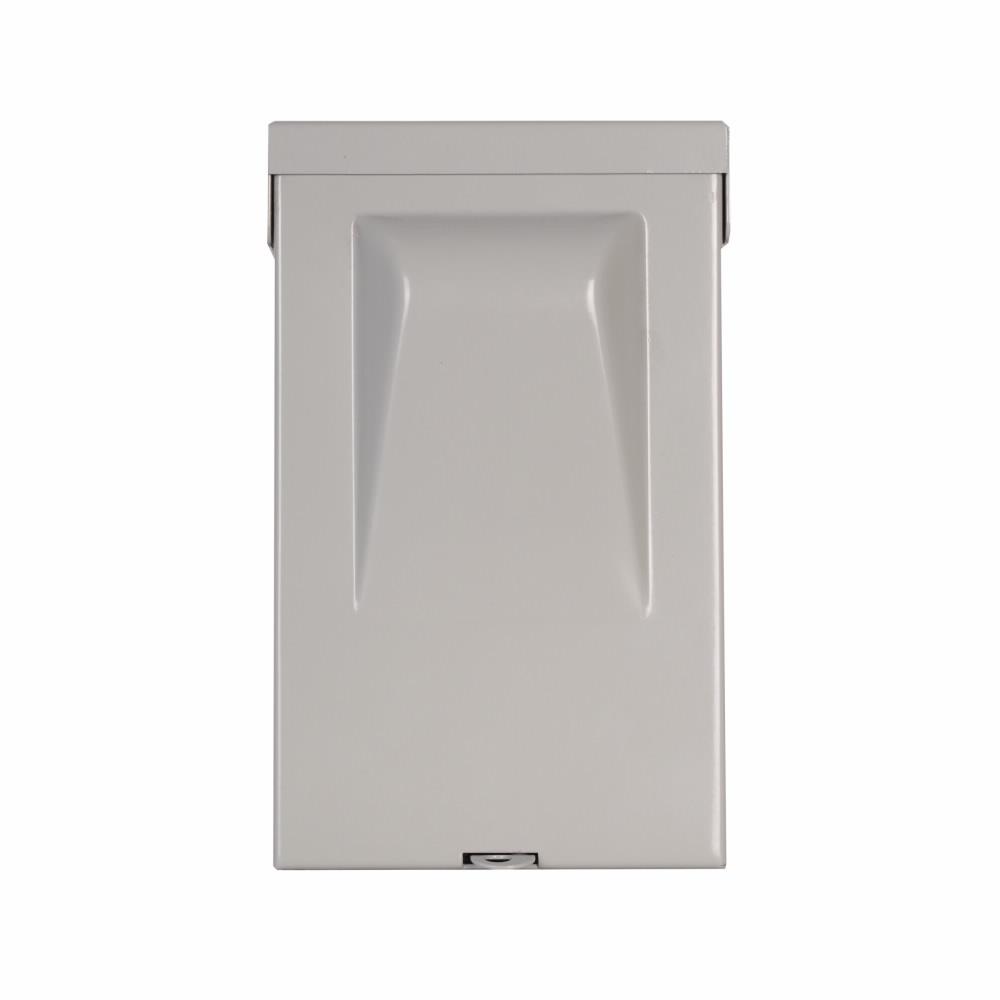

EATON Air Conditioning Disconnect, Fused Pullout, 120/240 VAC, 60 A, 3 hp, 10 hp, 1 ph, 2 Pole, 10 kA Short Circuit, NEMA 3R Enclosure, Surface Mounting, 60 to 75 deg C, 5.4 in L x 3.15 in W x 8.7 in H Dimensions, Steel, Gray, Hot Dipped Galvanized

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/CMBE22P125BTFR_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/CMBE22P125BTFR_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/DPF221RGF20WRTR_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/DPF221RGF20WRTR_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/DPF222R_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/DPF222R_Specification_Sheet.pdf

• Air conditioning disconnects (ACD) are located between a load center (distribution panel) and an air conditioner
• ACD provide a visible disconnecting means when performing maintenance and are commonly referred to as disconnects, pullouts or air conditioning switches
• ON/OFF control provided by a Pull-out handle

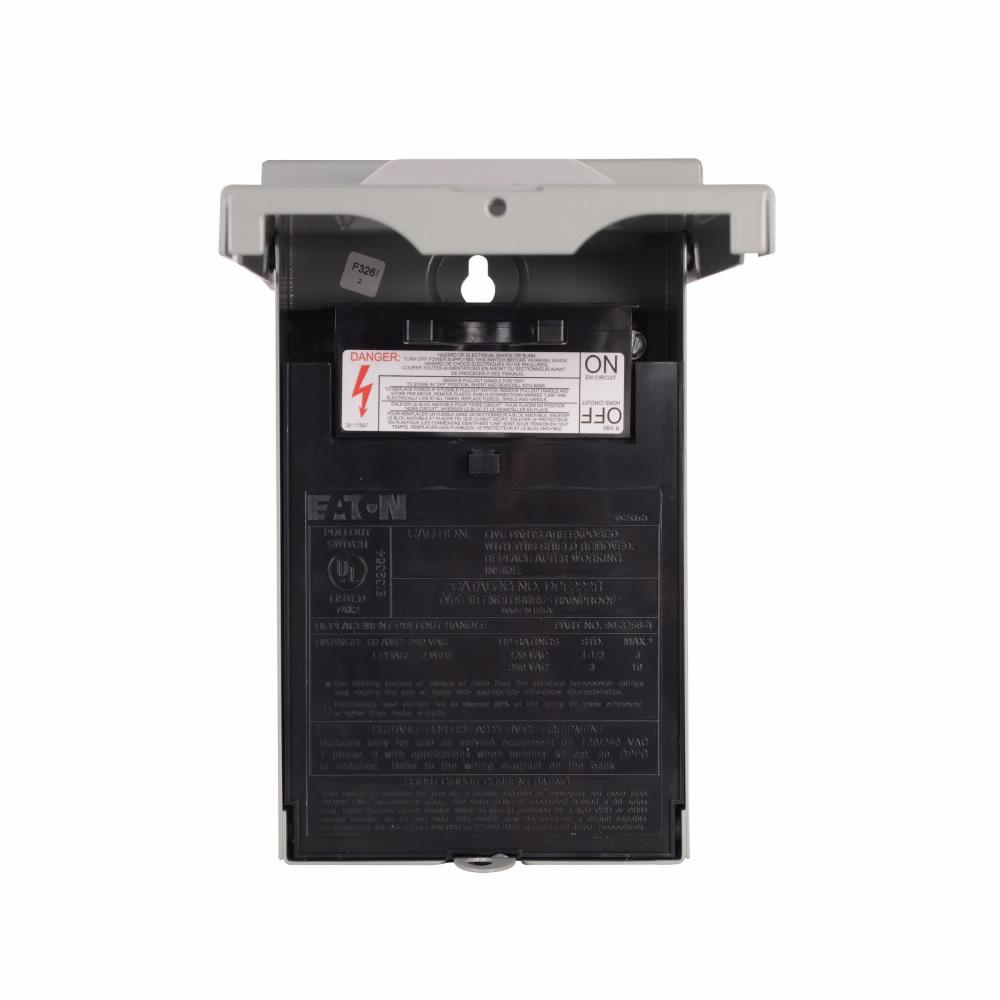

• Pull-out handle can be conveniently stored in the compartment in the Off position, helping to prevent the handle from being misplaced
• Protective shield cannot be removed until the pullout handle is removed, disconnecting the power
• 3 hp at 120 VAC and 10 hp at 240 VAC
• 14 to 3 AWG copper/aluminum wire
