B-Line 6660 GRTGV NK

Need Help? Call 866-625-5155

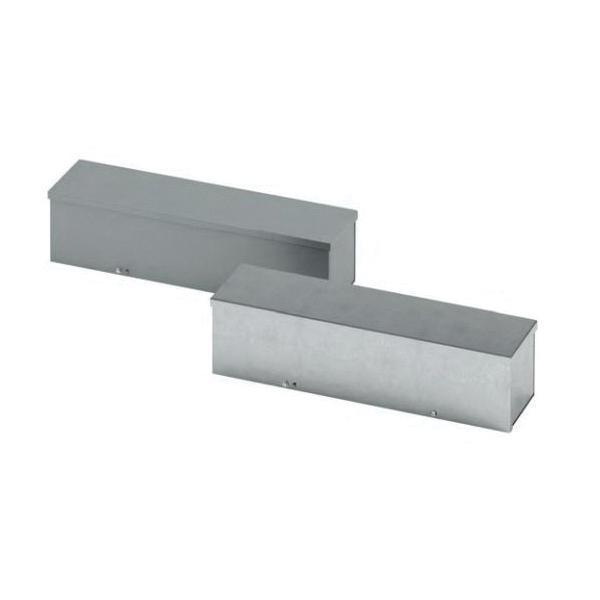

B-Line 6660 GRTGV NK Straight Section Wiring Trough, 60 in L x 6 in W x 6 in H, Screw Cover, Steel

B-Line Wiring Trough, Straight Section, 60 Length, 6 Width, 6 Height, Screw Cover, NEMA 3R/IP32, Steel, Gray, Acrylic Electro Coated/Pre-Galvanized

Type	Straight Section
Length	60 in
Width	6 in
Height	6 in
Cover Type	Screw
NEMA Rating	NEMA 3R
Material	Steel
Color	Gray
Finish	Acrylic Electro Coated/Pre-Galvanized

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/4472_GTGV_NK_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/4472_GTGV_NK_Catalog.pdf

Wash and phosphate undercoat or galvanized steel finish
ANSI 61 gray acrylic electro coated finish
Wireway body and cover are fabricated from 16 ga galvanneal steel for painted or galvanized steel
Wireway body has embossed mounting holes on the back
Cover is held secure by sliding it under the top end flange and fastening it with plated screws on the bottom end flange
Sealing screws and lances are located at each end of the wireway cover
Wireway exceeding 72 in L has two covers, a removable center channel and body supports
Without knockout
