B-Line 12124 RTHC

Share Print

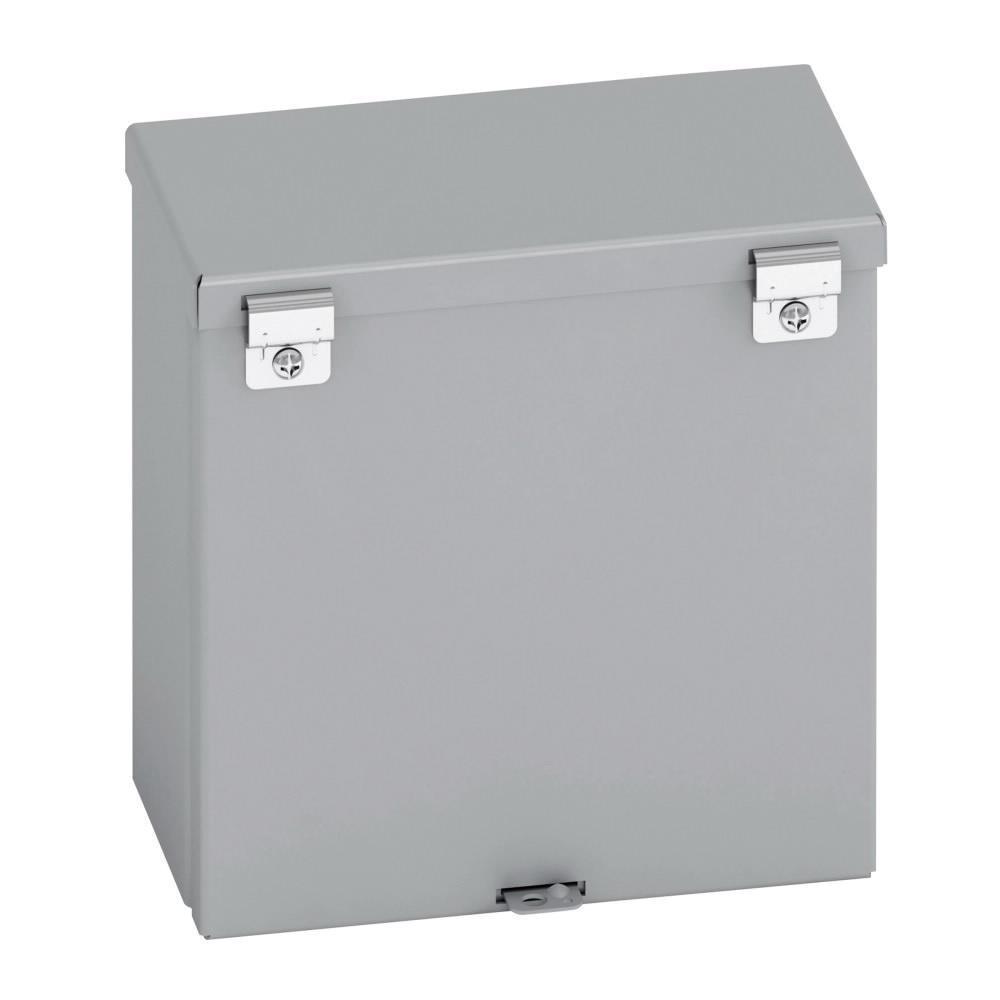

B-Line 12124 RTHC Electrical Enclosure Box With Knockout, 12 in H x 12 in W x 4 in D, Hinged Cover, NEMA 3R/IP32 NEMA Rating, Carbon steel

  • MPN: 12124 RTHC

  • IESPN: 1141

  • UPC: 782051331608

  • Min Order Qty: 1

  • Quantity Interval: 1

  • Sold as: EACH

    • Availability: loading

    • Branch Availability
B-Line 12124 RTHC

B-Line Electrical Enclosure Box, 12 in Height, 12 in Width, 4 in Depth, NEMA 3R/IP32 NEMA Rating, Hinged Cover, Lock: Padlock Hasp, Surface/Wall Mounting, Carbon steel, Acrylic Electro Coated/Galvannealed/Phosphate Undercoat, Gray

Height      12 in
Width      12 in
Depth      4 in
NEMA Rating      NEMA 3R/IP32
Cover Type      Hinged
Lock      Padlock Hasp
Mounting Type      Surface/Wall
Material      Carbon steel
Finish      Acrylic Electro Coated/Galvannealed/Phosphate Undercoat
Color      Gray
  • Used as wiring boxes, junction and pull boxes
  • Enclosure and door are fabricated from code gauge galvaneal steel
  • Enclosure body has embossed mounting holes on the back
  • Cover is secured to the top end with galvanized, detachable formed hinges on sizes up to and including 24188
  • Cover can be held in the open position by sliding it into notches on body
  • Cover has padlock hasp and sealing hole provisions at the bottom
  • Protects against falling rain, sleet and external ice formation
  • Rain hood, removable cover
