EATON BAB2040

Share Print

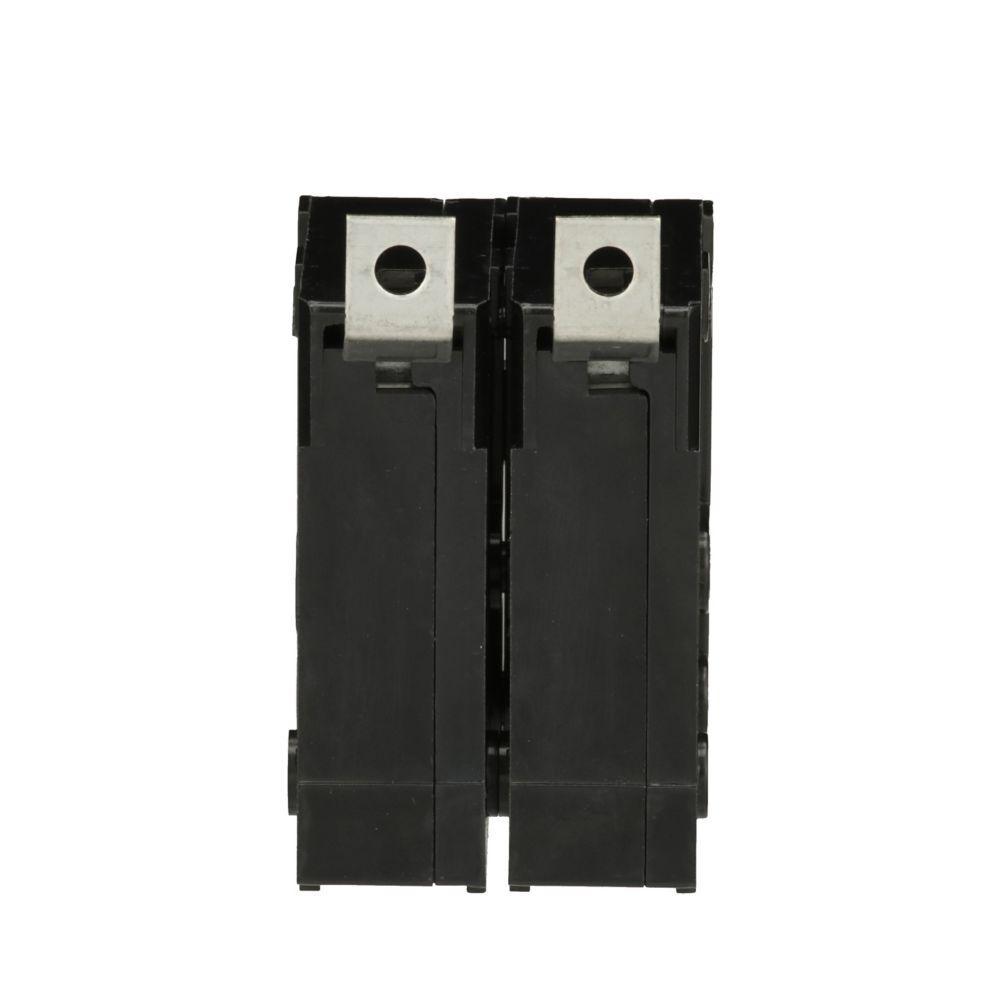

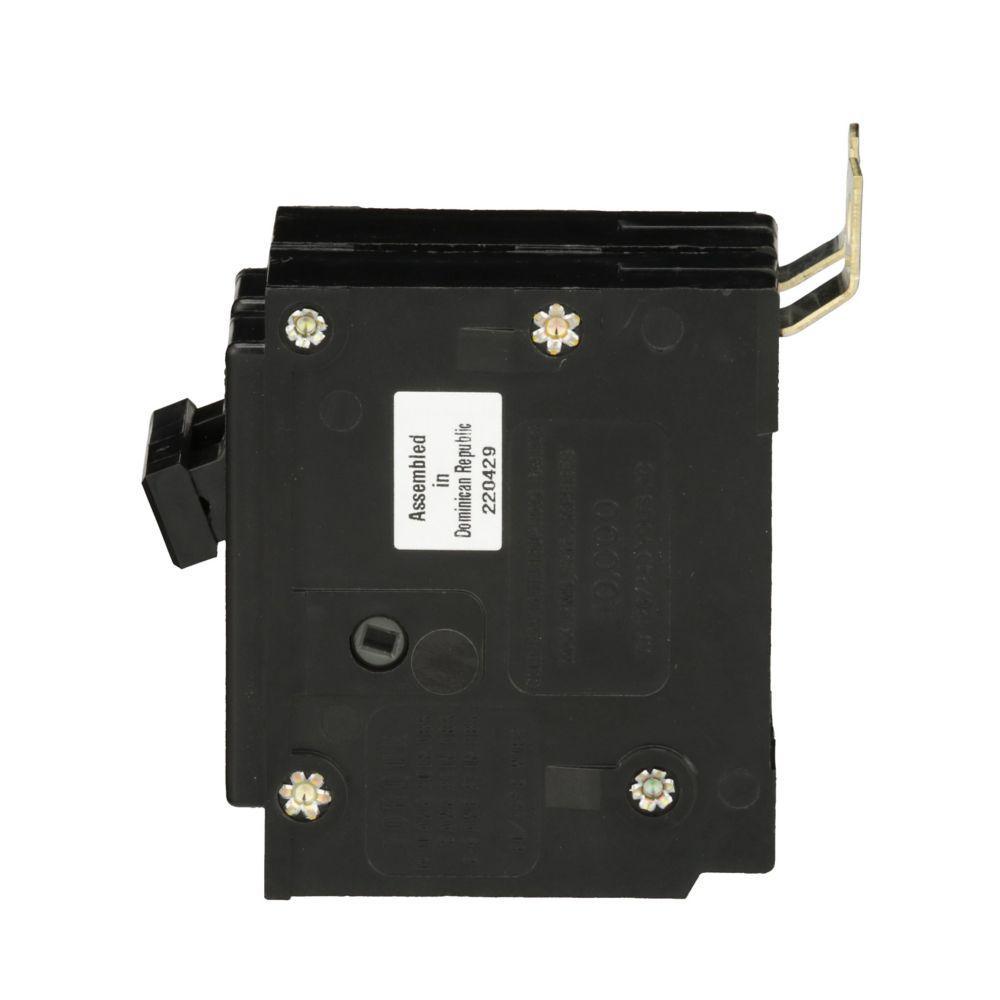

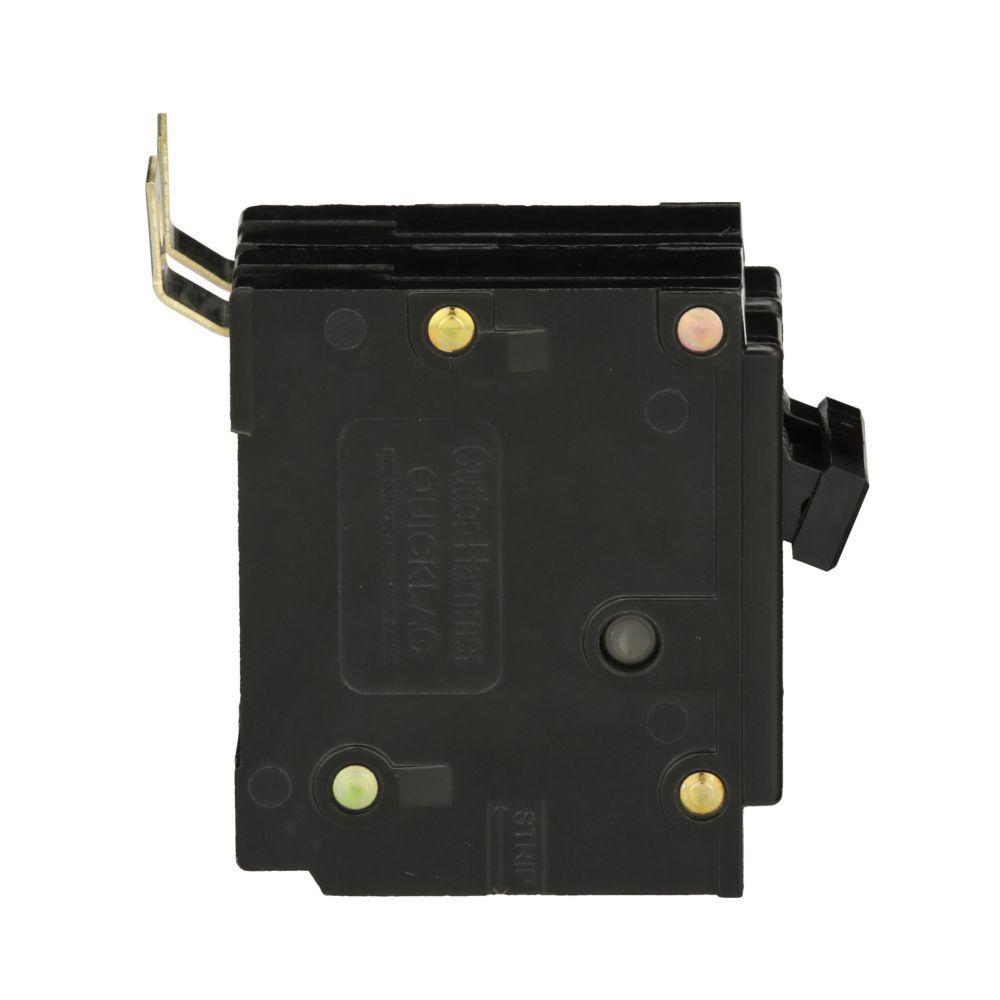

EATON QuickLag® BAB2040 Type BAB Miniature Circuit Breaker, 120/240 VAC, 40 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip

  • MPN: BAB2040

  • IESPN: 68904

  • UPC: 786679302408

  • Min Order Qty: 1

  • Quantity Interval: 1

  • Sold as: EACH

    • Availability: loading

    • Branch Availability
EATON BAB2040

Eaton’s bolt-on miniature circuit breakers (Quicklag) provide superior protection in panelboards, and offer easy installation. They are also switching duty rated for 120 VAC fluorescent light applications, and UL 489 listed. All products 15–100A are HACR rated. Select from one-, two-, or three-pole designs.

EATON QuickLag® Miniature Circuit Breaker, Type BAB, 120/240 VAC, 40 A, 50/60 Hz Frequency, 10 kA Interrupt, Thermal Magnetic Trip, 2 Pole, 1 ph, Steel Box Lug Connection, 14 to 4 AWG Wire, Bolted-On Mounting, 40 deg C, 3.1 in L x 2 in W x 2.9 in H Dimensions

Type      Type BAB
Voltage Rating      120/240 VAC
Amperage Rating      40 A
Frequency Rating      50/60 Hz
Interrupt Rating      10 kA
Trip Type      Thermal Magnetic
Number of Poles      2
Phase      1
Connection Type      Steel Box Lug
Wire Size      14 to 4 AWG
Mounting Type      Bolted-On
Temperature Rating      40 deg C
Dimensions      3.1 in L x 2 in W x 2.9 in H
  • Flexible power feed connection (wire size and position) offers product uniformity as well as ease of installation
  • Field mountable accessories make installation and on-site custom configuration easy
  • Compact designs available to minimize panel size
