Eaton's heavy duty fusible safety switches offer the ability to manually open and close a circuit and provide over current protection by means of field-installed fuses. Switches are 100% load break and 100% load make rated and are suitable for service entrance use. Fuse pullers are built-in on NEMA 4X and NEMA 12 enclosures through 200 amperes. Tangential knockouts on NEMA 1 and NEMA 3R enclosures through 200 A.

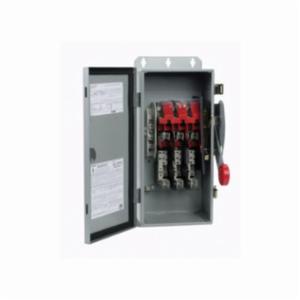

Cutler-Hammer Heavy Duty Safety Disconnect Switch, Fused Motor Circuit, 600 VAC, 60 A, 25/50 hp, 3 Phase, 6 Poles, 6 Wires, 200 kA Short Circuit, 6PST, NEMA 12, 25-1/2 in L x 13-1/4 in W x 9 in H, Steel, Galvanized

• Catalog https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_DH162NRK_Catalog.pdf
• Catalog-1 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_DH162NRK_Catalog_1.pdf
• Installation Instructions-1 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_DH363FGK_Instruction_Sheet.pdf
• Specification Sheet-1 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_DH662FDK_Datasheet.pdf
• Video Link https://www.youtube.com/watch?v=evbbeaeAs9Y

• Clearly visible, palm fitting red handle allows users to easily see the handle position (ON or OFF) from a distance and provides for easy operation
• Visible double break rotary blade mechanism offers two points of contact for a positive open and close, easier operation and to help prevent contact burning for longer contact life
• Triple padlocking capability increases personnel safety
• Interlocking mechanism keeps the door closed when the handle is in the on position to maximize safety, although there is a built-in defeater mechanism for user access when necessary
• Clear line shield protects against accidental contact with energized parts and the probe holes enable the user to test if the line side is energized without removing the shield
• Complete accessory and renewal parts data shown on inner door label
• Meets stringent UL 98 standards for safety, durability and reliability
• Accepts class H fuses
• Without neutral
