Cutler-Hammer 3MTB400R

Share Print

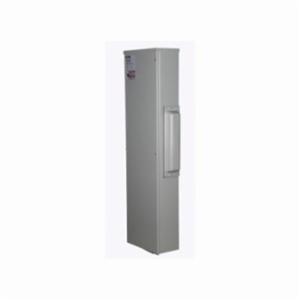

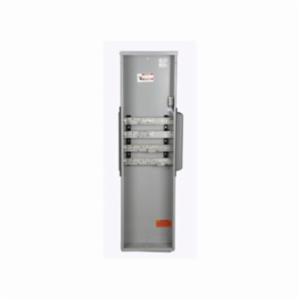

Cutler-Hammer 3MTB400R Main Lug Terminal Box, 120/208 VAC, 400 A, 3 Phase, NEMA 3R Enclosure, Overhead/Underground Feed

  • MPN: 3MTB400R

  • IESPN: 110648

  • UPC: 786849053086

  • Min Order Qty: 1

  • Quantity Interval: 1

    • Availability: loading

    • Branch Availability
Cutler-Hammer 3MTB400R

Cutler-Hammer Main Lug Terminal Box, 120/208 VAC, 400 A, 3, Overhead/Underground Feed, NEMA 3R, (1) 6 AWG to 600 or (2) 1/0 AWG to 250 kcmil Wire, 48 in L x 20 in W x 20 in H

Voltage Rating      120/208 VAC
Amperage Rating      400 A
Phase      3
Feed Type      Overhead/Underground
Enclosure Type      NEMA 3R
Wire Size      (1) 6 AWG to 600 or (2) 1/0 AWG to 250 kcmil
Dimensions      48 in L x 20 in W x 20 in H
  • pdfCatalog https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_1MCB1000R_Catalog.pdf
  • pdfSpecification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_3MTB400R_Datasheet.pdf
  • Short-circuit rating is the least AIC rating of any installed main tenant breaker-to a maximum of 100000 RMS symmetrical amperes
  • Aluminum bus material
  • 4-wire
