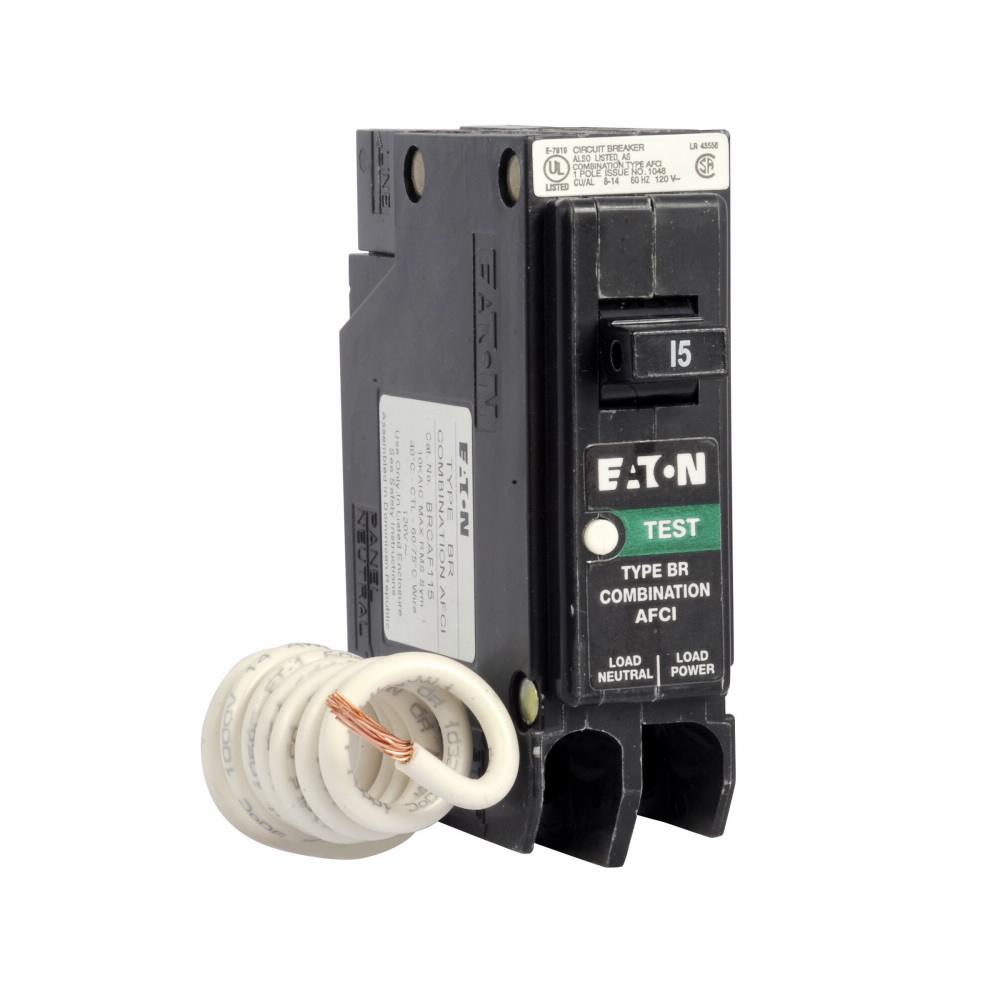

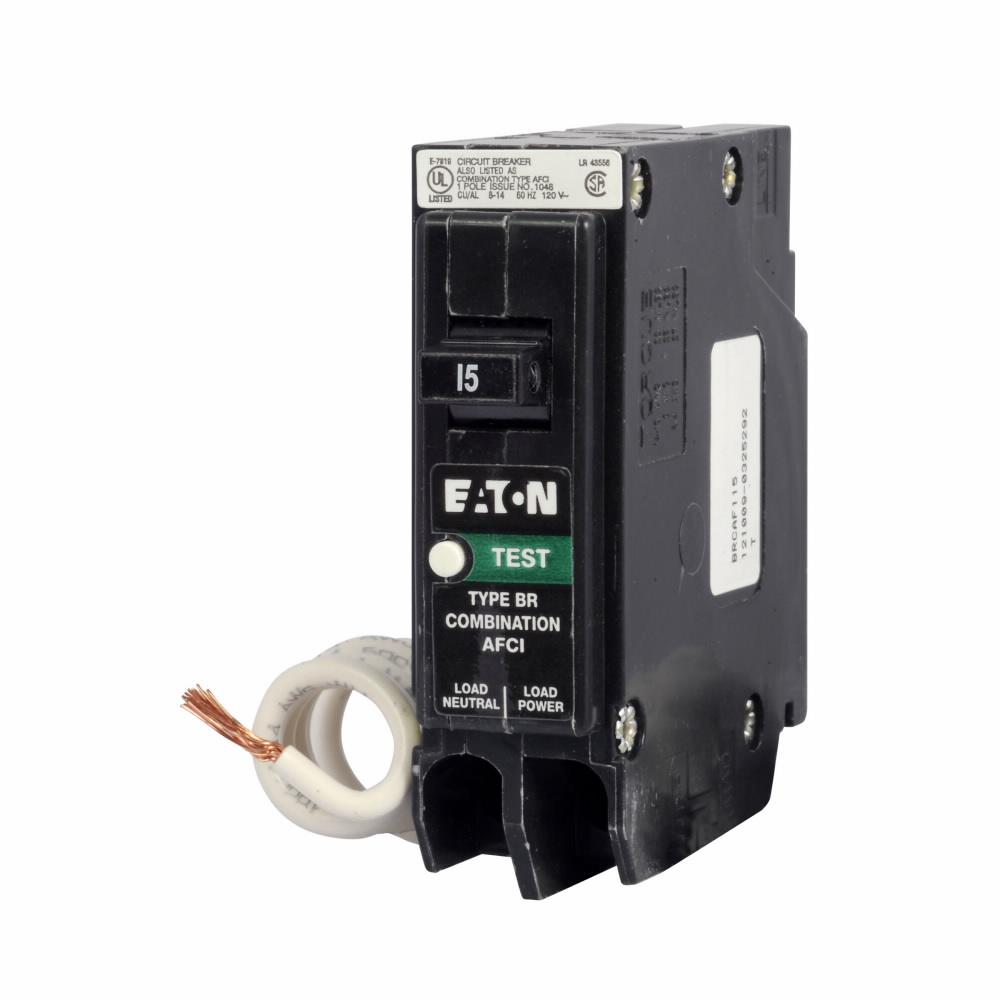

EATON type BR (1 in) combination AFCI is available in 15 and 20 A configurations and includes options for 22 kAIC interrupting rating. EATON has also made a diagnostic version of the BR arc fault which includes an led, indicating the most recent trip code to assist in troubleshooting.

EATON FIRE-GUARD® Arc-Fault Circuit Breaker, Type BRC Combination, 120 VAC, 20 A, 10 kAIC Interrupt, Thermal Magnetic Trip, 1 Pole, Standard Pigtail, 14 to 4 AWG Copper/Aluminum Wire, Plug-On Mount, 60 to 75 deg C, 6 in L x 3-1/2 in W x 1-1/4 in H

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_97979633dcaf4fc709f75ff7065ec843bc98a0d71d8e84549a700c5f2f44069d.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_97979633dcaf4fc709f75ff7065ec843bc98a0d71d8e84549a700c5f2f44069d.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_051560224bb6d546b80a9e833d5dac635048ca8dd0191e6b1102b65d14ec1760.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_051560224bb6d546b80a9e833d5dac635048ca8dd0191e6b1102b65d14ec1760.pdf

• 1 in combination
• Compact footprint as standard
• Arc fault detection methodology tolerant of non-compliant devices
• Lifetime trip code retention
• Overvoltage protection
• Continuous self-test of electronic components
