EATON's type BR (1 in) combination AFCI is available in 15 and 20 A configurations and includes options for 22 kAIC interrupting rating. Eaton has also made a diagnostic version of the BR arc fault which includes an led, indicating the most recent trip code to assist in troubleshooting.

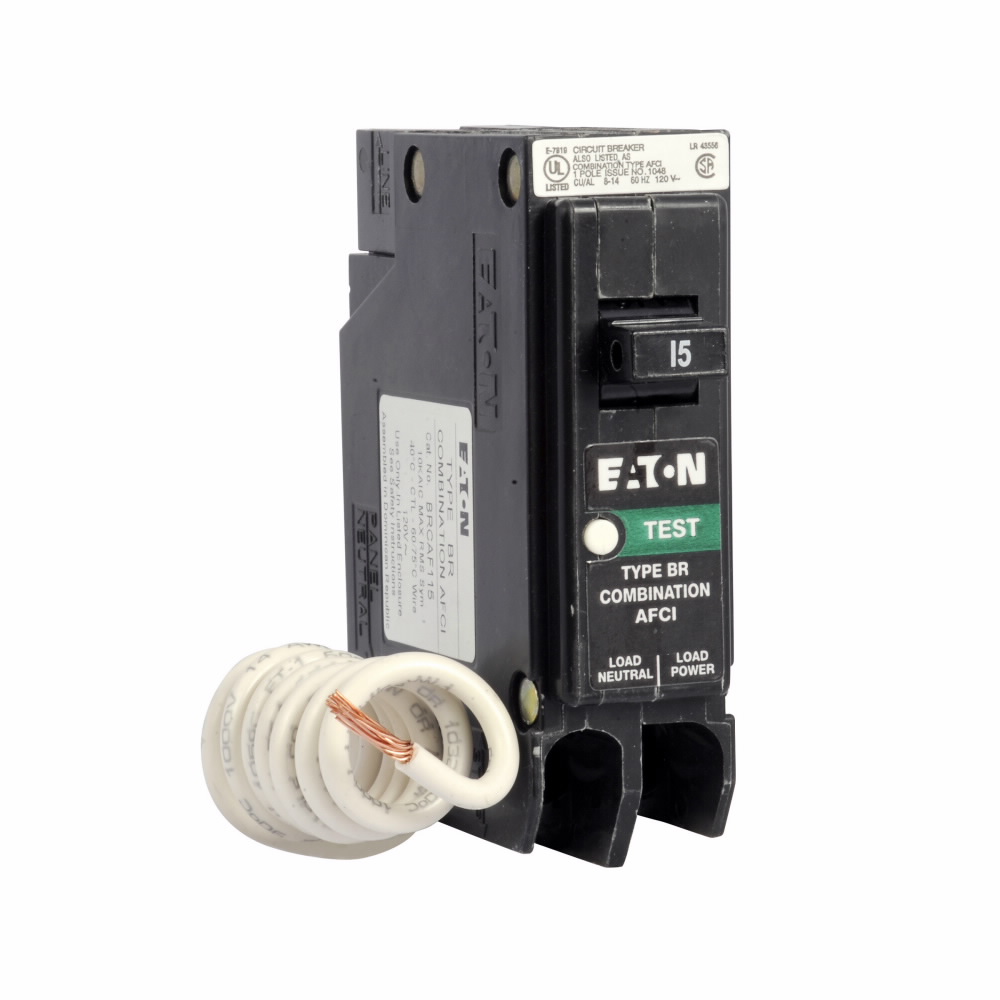

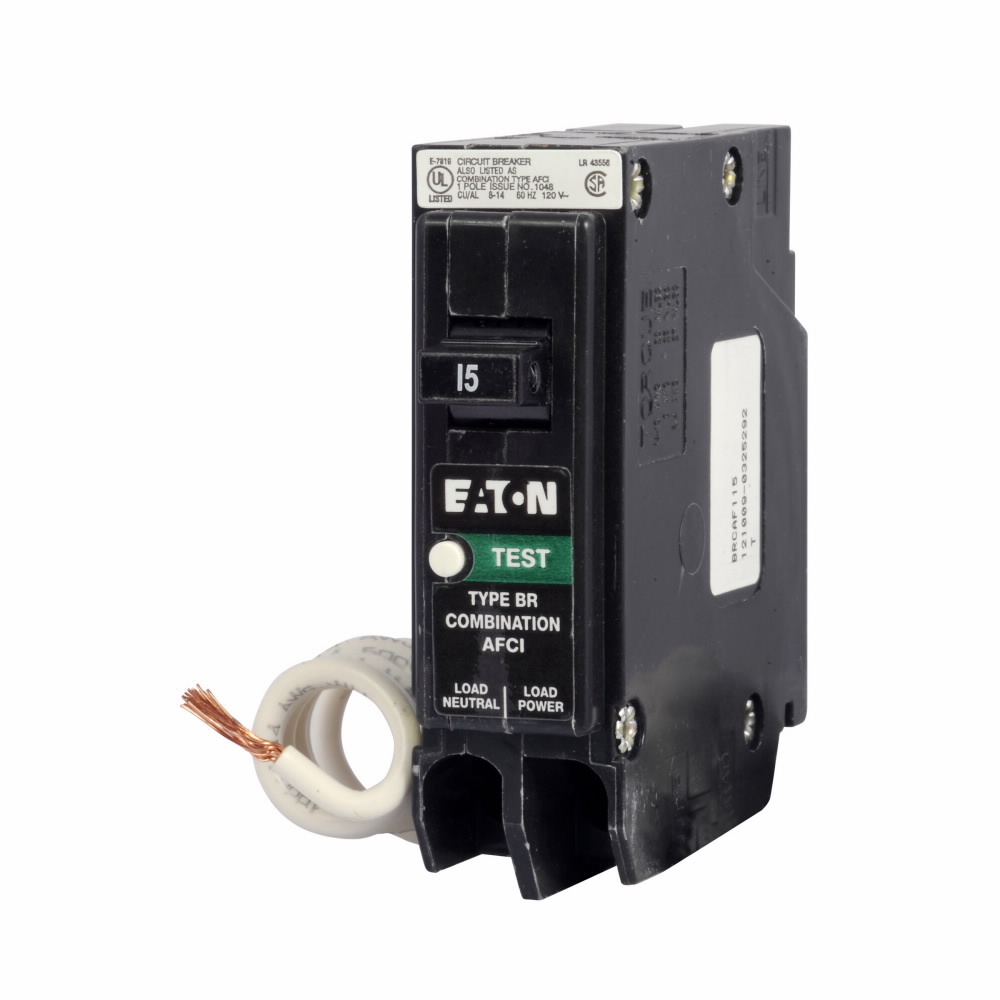

EATON FIRE-GUARD® Arc-Fault Circuit Breaker, Type BRC Combination, 120 VAC, 15 A, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, Standard Pigtail, 14 to 4 AWG Wire, Plug-On Mount, 60 to 75 deg C, 6 in L x 3-1/2 in W x 1-1/4 in H

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_97979633dcaf4fc709f75ff7065ec843bc98a0d71d8e84549a700c5f2f44069d.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_97979633dcaf4fc709f75ff7065ec843bc98a0d71d8e84549a700c5f2f44069d.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_651f46d2d63858ba170b9b537fd94af597f45aa0c7a5fb2cd550704ba12e01b4.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_651f46d2d63858ba170b9b537fd94af597f45aa0c7a5fb2cd550704ba12e01b4.pdf

• 1 in combination
• Compact footprint as standard
• Arc fault detection methodology tolerant of non-compliant devices
• Lifetime trip code retention
• Overvoltage protection
• Continuous self-test of electronic components
