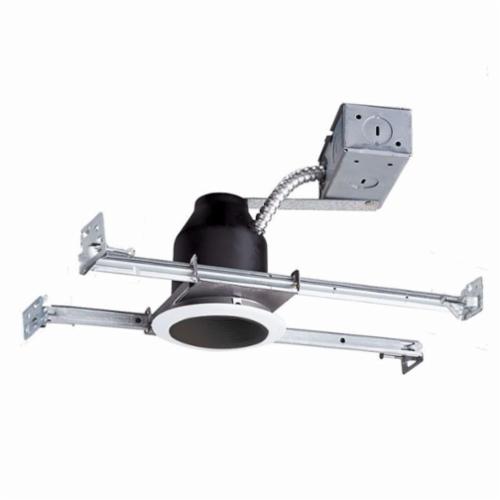

Juno® Recessed Housing and Trim Kit, Flood Mini Low Voltage, Series: TC18, 120 VAC, 2-3/8 in Ceiling Opening, 60 W Lamp, 3 in Dia, 13-1/2 in Height, Steel Housing, White

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Juno_TC18_184W_WH_Installation_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Juno_TC18_184W_WH_Installation_Sheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_755cf76ebd98dbd6344352c9e89f9509700ddc3a480f37e662d0a5f605ba9e42.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_755cf76ebd98dbd6344352c9e89f9509700ddc3a480f37e662d0a5f605ba9e42.pdf

• 3 in shallow round housing fits into tight spaces
• Medium base porcelain socket with nickel plated copper screw shell
• Unique plaster frame design facilitates new or remodel type installation
• Real Nail® 3 bar hangers telescoping system with pre-installed removable nail for repositioning and integral T-bar mounting feature for suspended ceilings
• Real Nail® 3 bar hangers feature patented break away bars for tight joist spacing
• Pre-wired junction box includes five 1/2 in knockouts with pryout slots, 3 non-metallic sheathed cable connectors and ground wire
• Shipped as a complete fixture with housing, trim and bar hangers, steel housing is fully assembled for easy installation
• UL listed, cUL, CSA certified for through branch wiring, maximum (8) 12 AWG minimum 90 deg C branch circuit conductors
• Thermally protected against improper use of insulation and lamps
• The non-IC recessed housing with trim can be installed in either new construction or remodel applications
• 22 ga black painted steel, installs into 1 in maximum ceiling thickness
