Eaton's Commercial Meter Stacks provide users with quick, flexible, and easy installation. The combination indoor / outdoor durable enclosures make them ideal for applications such as strip malls, office complexes, and industrial parks. These unique meter stacks can also be mounted with 1MM/3MM modules to allow for numerous different arrangements in how they are bolted together. Eaton’s Commercial Meter Stacks are UL listed, meet EUSERC electrical requirements, and are suitable for use as service entrance equipment, meaning there is no need to purchase more equipment or use add-ons.

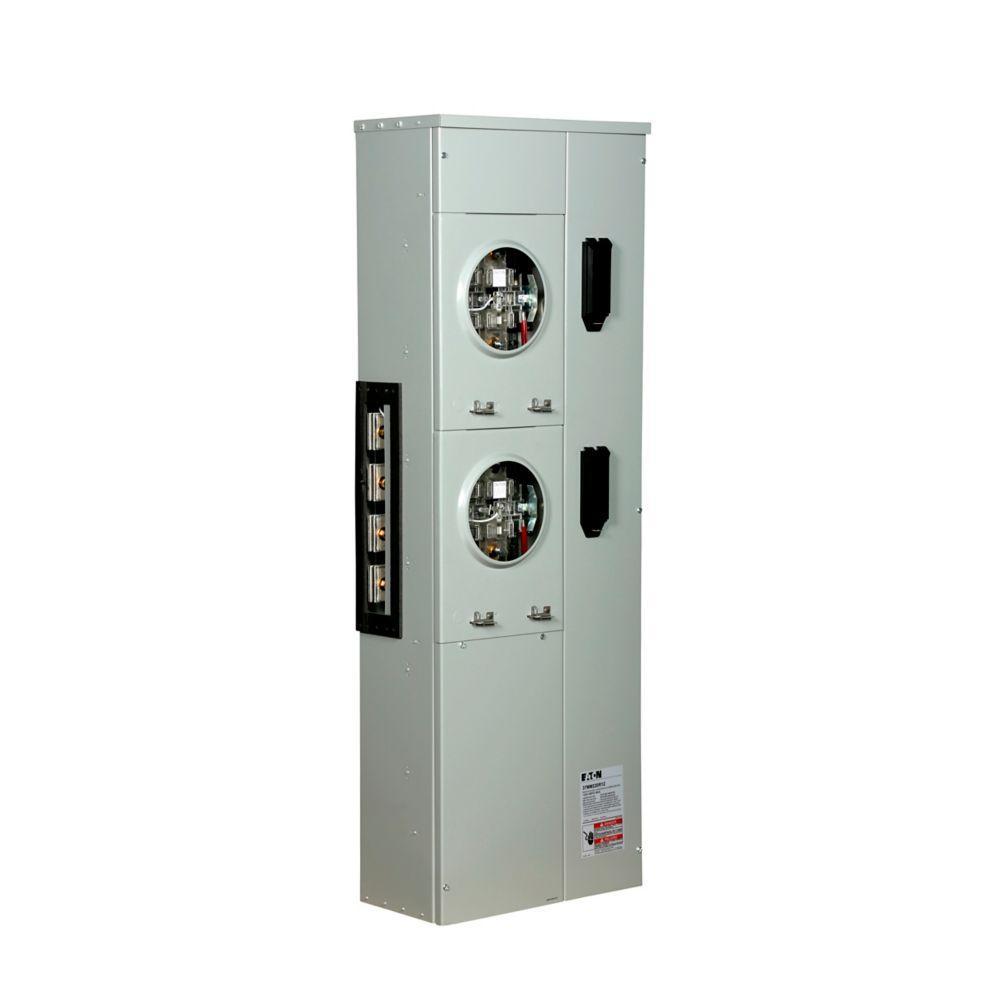

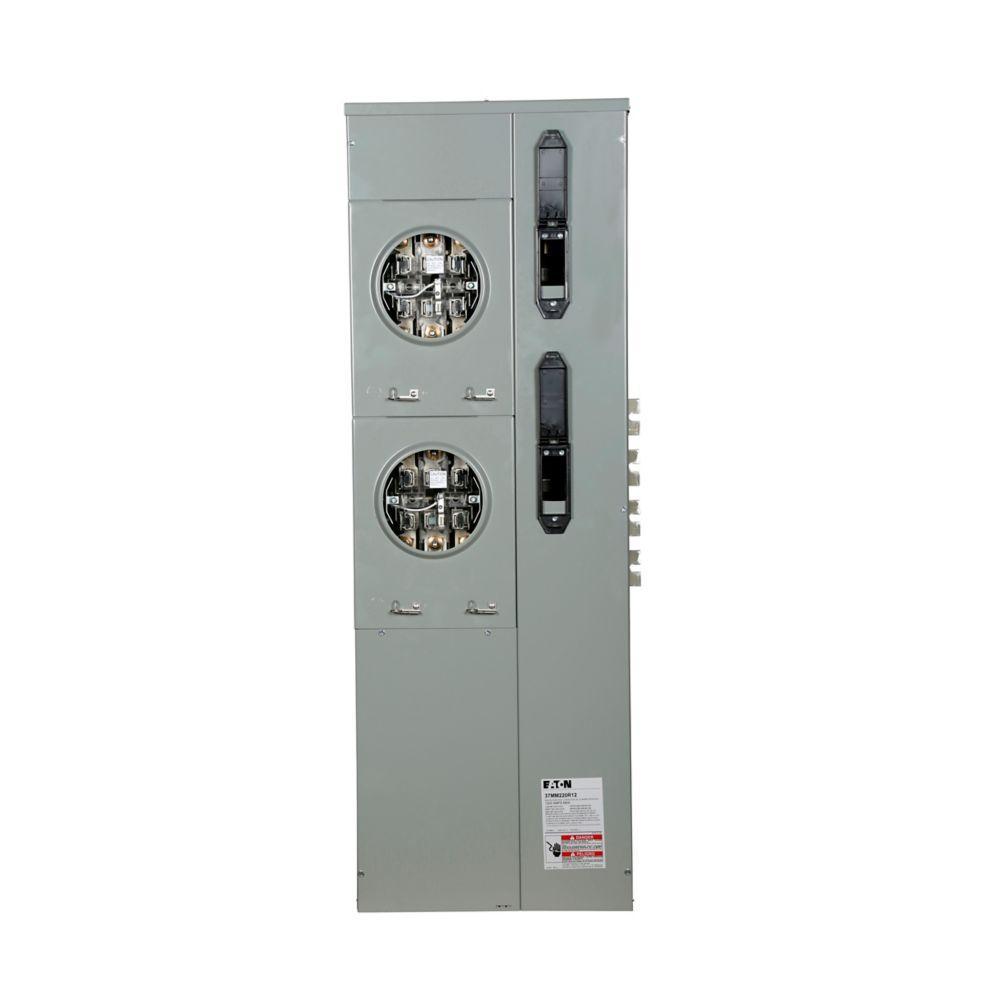

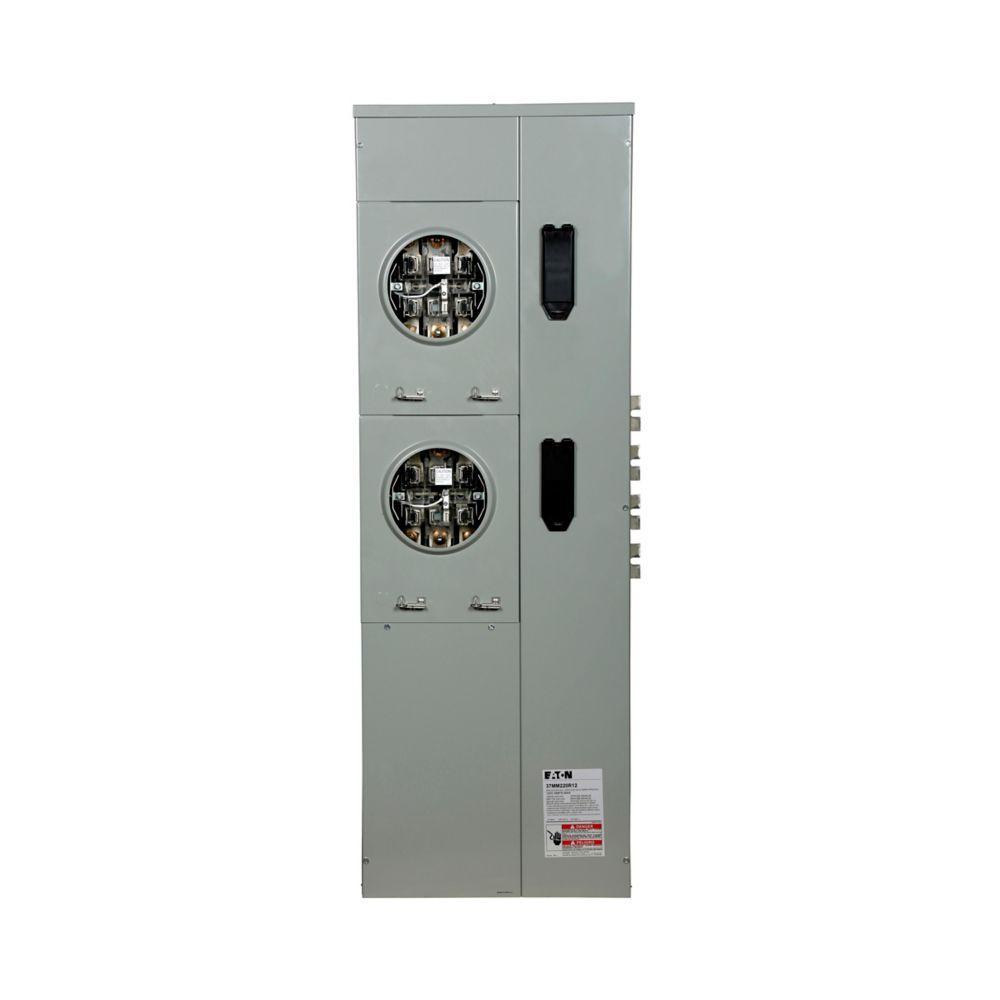

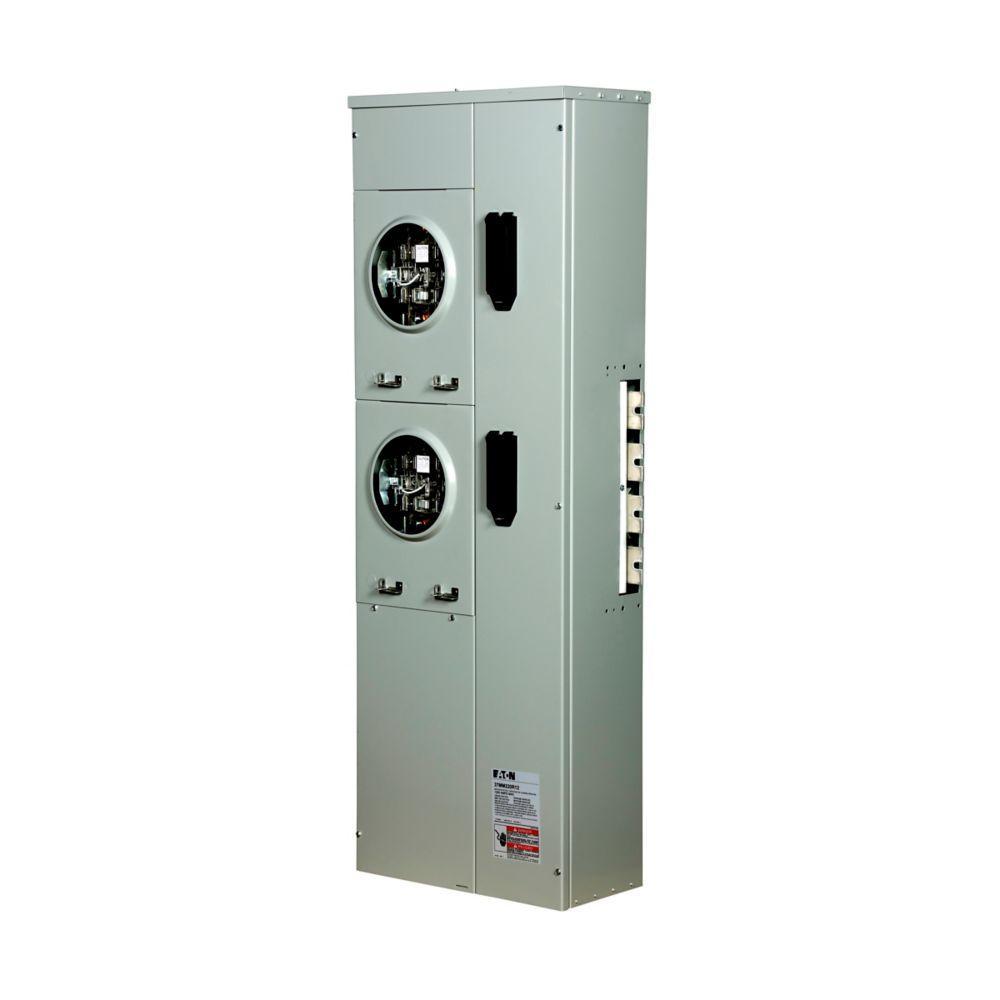

EATON Meter Stack Module, 7-Jaw 2-Socket Plug-In, Series: 37MM, 120/208Y VAC, 400 A, 3 ph, 4 Wires, Rail Mounting, NEMA 3R Enclosure, 8.75 in L x 18.25 in W x 52.63 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_CH9MB270_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_CH9MB270_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_37MM240R1240_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_37MM240R1240_Specification_Sheet.pdf

• End walls the top cap is removable and does not contain knockouts, so contractors can position and punch holes where they need them, there are numerous knockouts in the back and bottom for flexibility
• The factory installed equipment ground bars are provided in both top and bottom gutters
• If work on the breakers or cables is necessary, it can be accomplished without disturbing the meters or meter covers, thanks to a separate cover that allows easy access to the module's main tenant breaker and wireway section
• A solid metal barrier separates the meter socket section from the tenant breaker in the wireway section and the unmetered vertical bus is enclosed to guard against power theft
• Neutral assembly is located in the wireway of each module, the assembly permits convenient termination of the neutral conductors
• Non-removable metal barrier encloses 1200 A horizontal aluminum bus when passing through the tenant breaker section for added security
• Raintight caps, meter covers and lockable raintight tenant breaker cover
• Rear mounting rail and wall hanger speed and simplify installation
• Mains and modules slip together quickly and smoothly with front accessible captive bolts securing the juncture without removing socket interiors or bus access plate
• Mechanically and electrically built to bolt up with main service modules and residential modular metering stacks
• 3-phase in and 3-phase out design
